Contineo tactus

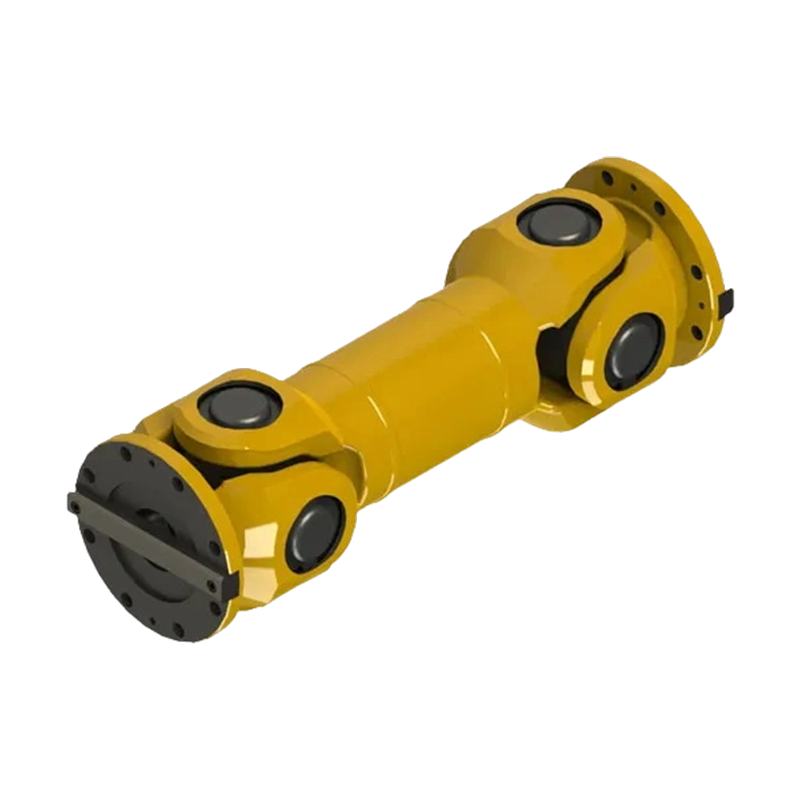

SWC-WH genus non-extensio iuncta universa copulatio
SWC-W Type Iuncta coitus universalis iuncta (Type Non Expansion) pars est transmissio quae altam fidem cum structural simplicitate coniungit. Specialiter designatum est ad applicationes industriales quae axialem emendationem non requirunt vel commensurationem expansionem scelerisque. Media huius producti consilium iuncturam iuncta sumit, quae non solum stabili et robusto corporis connexione inter spicula constituit, sed etiam processum conventum valde simpliciorem reddit ac multiplicitatem sustentationis subsequentis minuit. Configuratione compaginali universali praecise disposito, flexibiliter compensare potest pro misalignationibus angularis usque ad 15° ad 25° inter axes, efficiens ut torques transmissio, dum signanter reducens intentionem mechanicam accentus in praecisione partium connectentium.
Secundum ambitum perficiendi, haec series aptabilitatem validam demonstrat, cum torquibus orbitalibus ab 2.5 kN·m ad 1000 kN·m et diametro rotational ab 100 mm usque ad 550 mm producto. Est praecipui materiae qualitas ad resistendum in duris ambitibus industriae industriae praestantem laborem curare. Haec solutio, efficientiam auream coniungens cum compage compacta iuncta, optimam eam facit electionem ad obtinendam potestatem stabilis tradendi in industrias ut metallurgia, fodienda, tractatio materiae, cibique processus..
- Morbi condimentum
- Nuntius mitte
ARTI PARAMETERS

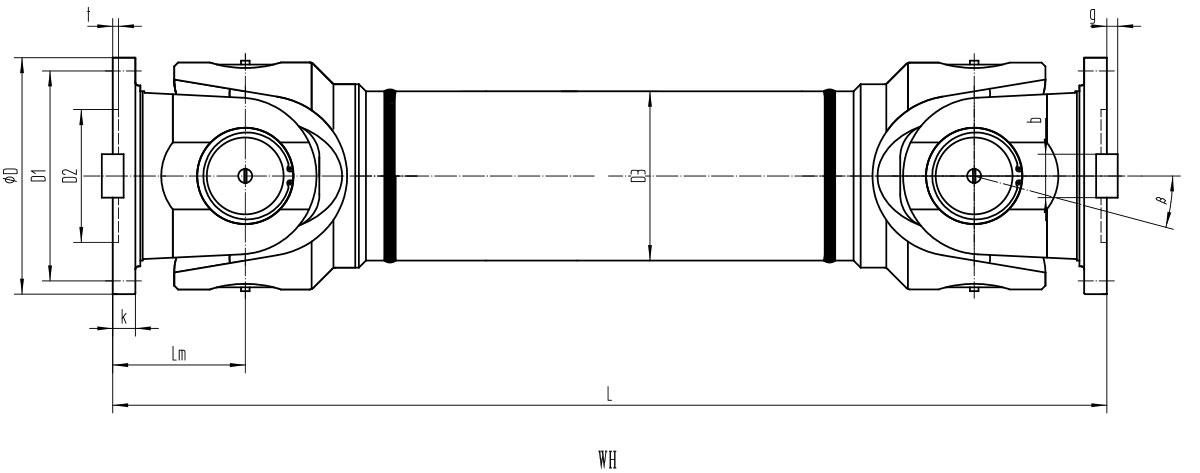

Praecipuae parametri et praecipuae dimensiones WH typus in non-expansione universalis copulationis iuncta est
| Type | gyratio Diameter D/mm | Nominal Torque Tn/kN·m | lassitudo torque Tf/kN·m | Perferens vitam elementum L | Axis angulus β/(°) | Dimension/mm | Momentum inertiae l/kg·m² | Massa m/kg | |||||||||||
| L min | D₁(js11) | D₂(H7) | D₃ | L m | n x φd | k | t | b(h9) | g | L min | Crescere per 100mm | L min | Crescere per 100mm | ||||||
| SWC100WH | 100 | 2.5 | 1.25 | 5.795×10 -4 | ≤25 | 243 | 84 | 57 | 60 | 55 | 6×φ9 | 7 | 2.5 | 0.004 | 0.0002 | 4.5 | 0.35 | ||
| SWC120WH | 120 | 5 | 2.5 | 4.641×10 -3 | ≤25 | 307 | 102 | 75 | 70 | 65 | 8×φ11 | 8 | 2.5 | 0.01 | 0.0004 | 7.7 | 0.55 | ||
| SWC150WH | 150 | 10 | 5 | 0.51×10 1 | ≤25 | 350 | 130 | 90 | 89 | 80 | 8×φ13 | 10 | 3 | — | — | 0.037 | 0.0016 | 18 | 0.85 |
| SWC180WH | 180 | 22.4 | 11.2 | 0.245 | ≤15 | 480 | 155 | 105 | 114 | 110 | 8×φ17 | 17 | 5 | 24 | 7 | 0.15 | 0.007 | 48 | 2.8 |
| SWC200WH | 200 | 36 | 18 | 1.115 | ≤15 | 500 | 170 | 120 | 133 | 115 | 8×φ17 | 17 | 5 | 28 | 8 | 0.245 | 0.013 | 72 | 3.7 |
| SWC225WH | 225 | 56 | 28 | 7.812 | ≤15 | 520 | 196 | 135 | 152 | 120 | 8×φ17 | 20 | 5 | 32 | 9 | 0.365 | 0.023 | 78 | 4.9 |
| SWC250WH | 250 | 80 | 40 | 2.82×10¹ | ≤15 | 620 | 218 | 150 | 168 | 140 | 8×φ19 | 25 | 6 | 40 | 12.5 | 0.847 | 0.028 | 124 | 5.3 |
| SWC285WH | 285 | 120 | 58 | 8.28×10¹ | ≤15 | 720 | 245 | 170 | 194 | 160 | 8×φ21 | 27 | 7 | 40 | 15 | 1.756 | 0.051 | 185 | 6.3 |
| SWC315WH | 315 | 160 | 80 | 2.79×10² | ≤15 | 805 | 280 | 185 | 219 | 180 | 10×φ23 | 32 | 8 | 40 | 15 | 2.893 | 0.08 | 262 | 8 |
| SWC350WH | 350 | 225 | 110 | 7.44×10² | ≤15 | 875 | 315 | 210 | 245 | 194 | 10×φ23 | 35 | 8 | 50 | 16 | 4.814 | 0.146 | 349 | 11.5 |
| SWC390WH | 390 | 320 | 160 | 1.86×10³ | ≤15 | 955 | 340 | 235 | 267 | 215 | 10×φ25 | 40 | 8 | 70 | 18 | 8.406 | 0.222 | 506 | 15 |
| SWC440WH | 440 | 500 | 250 | 8.25×10³ | ≤15 | 1155 | 390 | 255 | 325 | 260 | 16×φ28 | 42 | 10 | 80 | 20 | 15.79 | 0.474 | 790 | 21.7 |
| SWC490WH | 490 | 700 | 350 | 2.154×10⁴ | ≤15 | 1205 | 435 | 275 | 351 | 270 | 16×φ31 | 47 | 12 | 90 | 22.5 | 27.78 | 0.69 | 1104 | 27.3 |
| SWC550WH | 550 | 1000 | 500 | 6.335×10⁴ | ≤15 | 1355 | 492 | 320 | 426 | 305 | 16×φ31 | 50 | 12 | 100 | 22.5 | 48.32 | 1.357 | 1526 | 34 |
