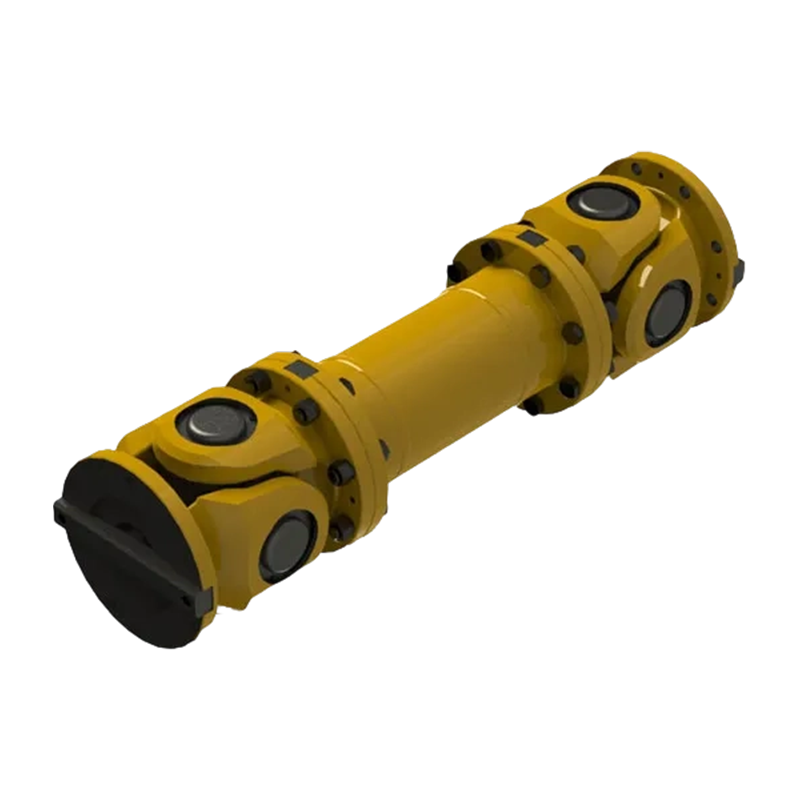

SWC-WF genus LABIUM universale coitus sine expansione welding

Name: SWC-WF genus LABIUM universale coitus sine expansione welding
Rating: 5 (99 reviews)

SWC-WF type non expansion iuncta flange universalis iuncturam solutionem transmissionis stabilem et efficientem praebet ad graves condiciones operandi, quae frequentes axiales emendas non requirunt per structuram angoris turpis non glutinosam, praesertim in subtilitate industriarum sicut in programmatibus, chemicis et generalibus fabricandis. Copulatio praecipuam vim metalli non elasticam designat, eiusque nucleum commoda in praestantissima recompensatione angularis (scapulae maximum usque ad 15°) accommodavit, et efficientiam Aureorum perquam altam transmissionis. Aureus nominalis usque ad 1000 kN·m ferri potest, ut connexionem firmitatis et operativae diuturnitatis gravium systematum machinarum in ambitus asperos efficiat. Dissimilis levis ponderis Nylon Gear Copulatio seu Nylon Sleeve Gear Copulatio, series SWC-WF magis in structuram rigiditatem et institutionem facilem sub torquibus altis tendit. Autem, cum fabricatio linearum productionis multiplex automated, potest etiam flexibiliter integrari cum componentibus, ut Nylon Apparatus Coitus et Flexibilis Nylon Apparatus Copulatio obviam duplicibus exigentiis potestatis tradendae accurationis et flexibilium systematis accommodationis, ita insigniter augendo altiorem totius systematis efficientiam dum sustentationem gratuita reducendo..

Contactus Us

PDF Download

PREV: Nullus prior articulum
DEINDE: SWC-BH vexillum evolutionis iuncta coniunctio universalis

Morbi condimentum

Nuntius mitte

ARTI PARAMETERS

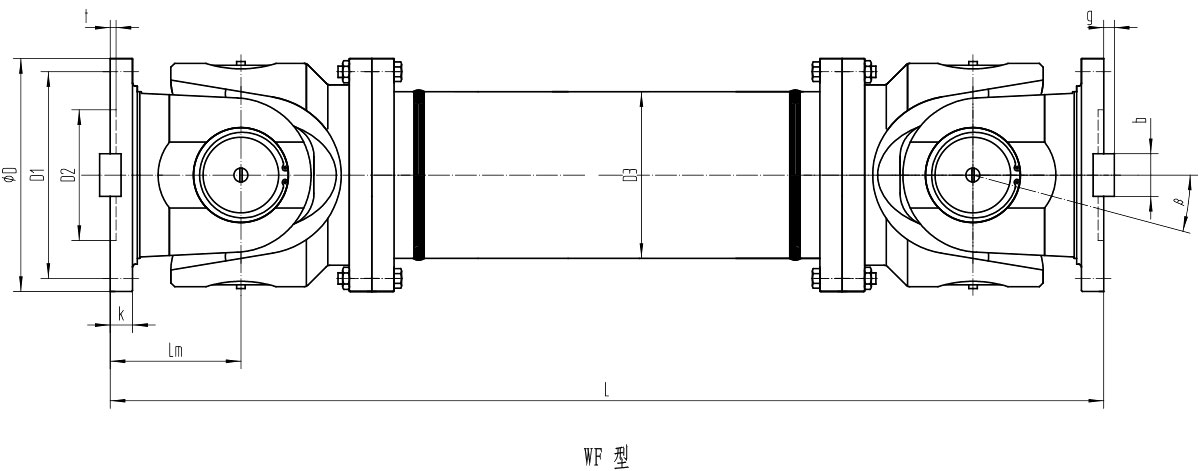

Parametri fundamentales et principales dimensiones WF typus magnae magnitudinis universalis coitus sine expansione flange

Type	Rotatione Diameter D/mm	Nominal torque Tn/kN·m	Lassitudine torques Tf/kN·m	Perferens vitam elementum L	Axis Anglus β/(°)	Dimension/mm										Momentum inertiae ego/kg·m²		Massa m/kg
Type	Rotatione Diameter D/mm	Nominal torque Tn/kN·m	Lassitudine torques Tf/kN·m	Perferens vitam elementum L	Axis Anglus β/(°)	L _min	D₁(js11)	D₂(H7)	D₃	L _m	n×φd	k	t	b(h9)	g	L _min	Auge 100mm	L _min	Auge 100mm
SWC180WF	180	22.4	11.2	0.245	≤15	560	155	105	114	110	8×φ17	17	5	24	7	0.248	0.007	58	2.8
SWC200WF	200	36	18	1.115	≤15	585	170	120	133	115	8×φ17	17	5	28	8	0.316	0.013	82	3.7
SWC225WF	225	56	28	7.812	≤15	610	196	135	152	120	8×φ17	20	5	32	9	0.636	0.023	93	4.9
SWC250WF	250	80	40	2.82×10¹	≤15	715	218	150	168	140	8×φ19	25	6	40	12.5	1.352	0.028	143	5.3
SWC285WF	285	120	58	8.28×10¹	≤15	810	245	170	194	160	8×φ21	27	7	40	15	2.664	0.051	220	6.3
SWC315WF	315	160	80	2.79×10²	≤15	915	280	185	219	180	10×φ23	32	8	40	15	4.469	0.08	300	8
SWC350WF	350	225	110	7.44×10²	≤15	980	310	210	245	194	10×φ23	35	8	50	16	7.189	0.146	387	11.5
SWC390WF	390	320	160	1.86×10³	≤15	1100	345	235	267	215	10×φ25	40	8	70	18	13.18	0.222	588	15
SWC440WF	440	500	250	8.25×10³	≤15	1290	390	255	325	260	16×φ28	42	10	80	20	23.25	0.474	880	21.7
SWC490WF	490	700	350	2.154×10⁴	≤15	1360	435	275	351	270	16×φ31	47	12	90	22.5	41.89	0.69	1263	27.3
SWC550WF	550	1000	500	6.335×10⁴	≤15	1510	492	320	426	305	16×φ31	50	12	100	22.5	68.48	1.357	1663	34
