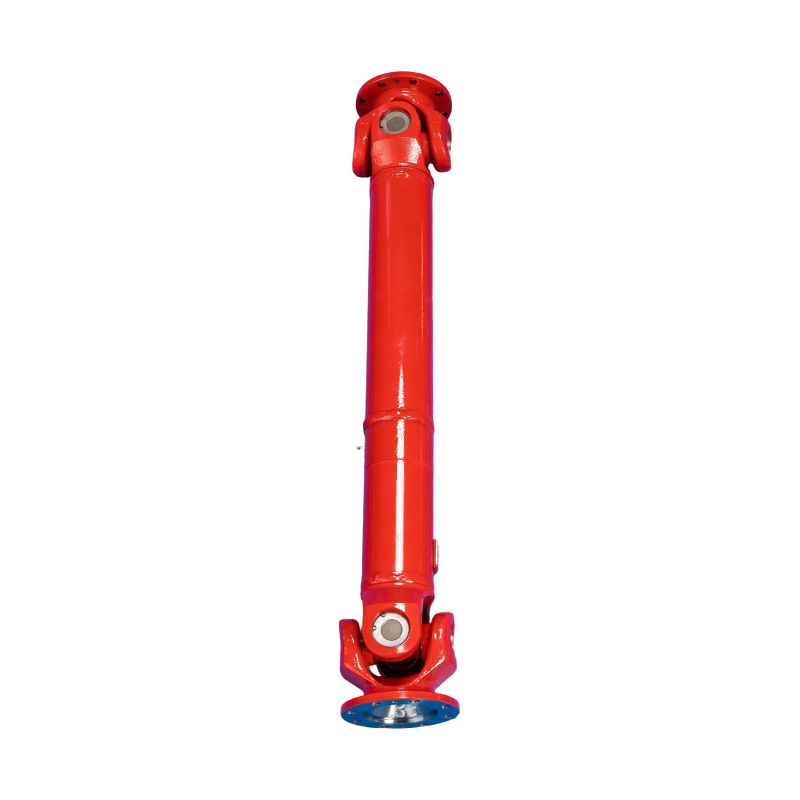

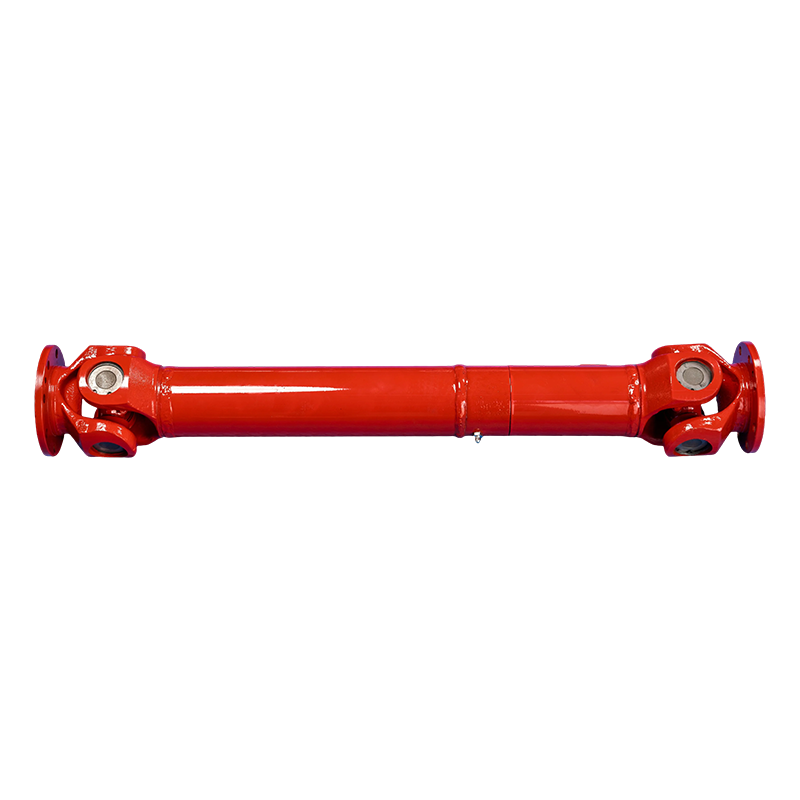

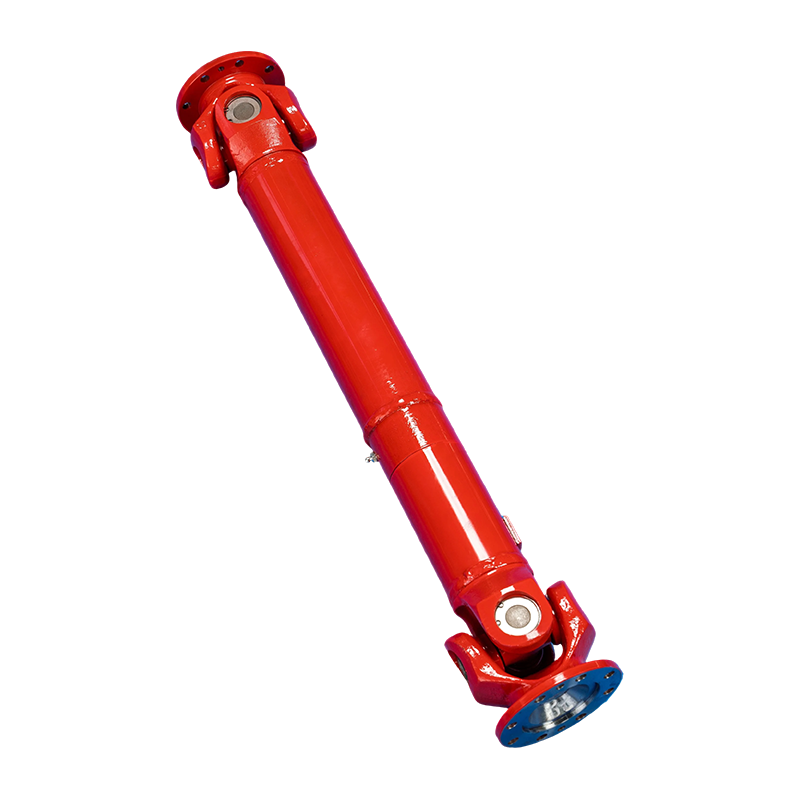

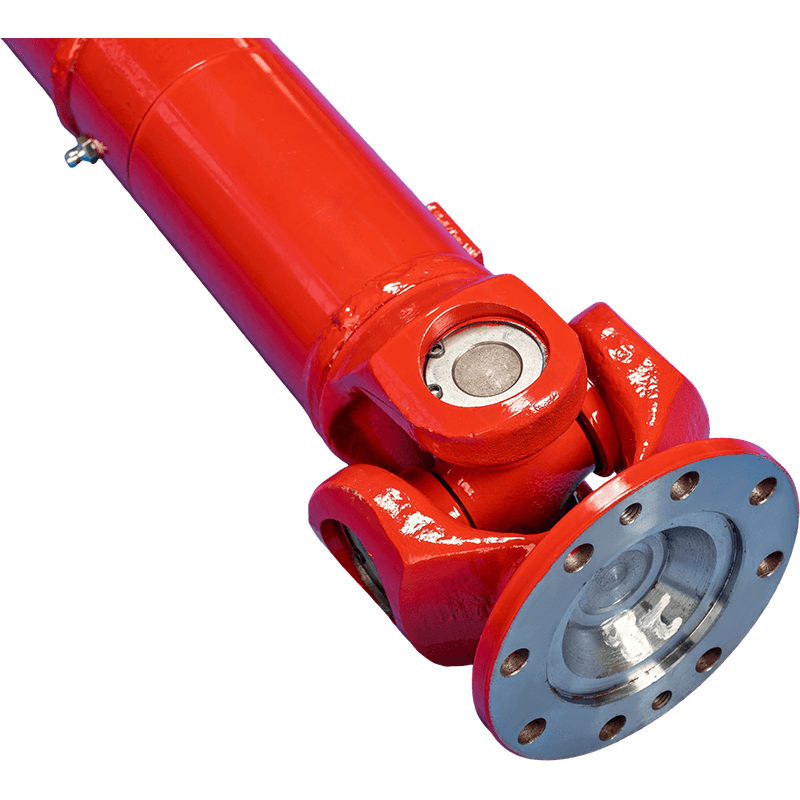

SWC-CH typus longam expansionem conglutinationis universalis copulationis

Name: SWC-CH typus longam expansionem conglutinationis universalis copulationis
Rating: 5 (99 reviews)

SWC-CH Type Magna Telescopic Iuncta universalis Articulus Media utilitas generis generis SWC-CH magnae iuncturae telescopicae universalis iuncta est in superiori suo axiali compensatione facultatem. Per longum telescopium ictus, efficaciter trahit scelerisque expansionem et contractionem ac magnas displacentias in operatione instrumenti, continuam et stabilem procurans potentiam tradendi. Connexio eius iuncta consilium non solum auget altiore stabilitatis structurae, sed etiam, coniuncta cum constructione universali iuncturam sustinens angulum 15° axialem misalignment, signanter minuit mechanicam vim oneris in praecisione partium.

SWC-CH genus magnum telescopicum iuncta universali iuncturam robustam exhibitionem exhibet, cum torque nominali usque ad 1000 kN·m et ultra-magnam temperationem telescopicam amplissimam usque ad 1000 mm sustinens, perfecte occurrens extremae obsessionis postulationes petrochemical, metallurgicae, et gravia officiorum rationum inferens. Cum sua efficientia torques transmissio et materiarum obsistentium optimarum fatigationum, signanter vitae apparatum extendit dum vim amissionis minuit, eamque optimam connexionem solutionem recentiorum gravium industriarum quaerunt, efficientiam altam et humilem sustentationem gratuita sunt..

Contactus Us

PDF Download

PREV: SWC-WD non-telescopia brevis copula universalis
DEINDE: SWC-WF type magnae magnitudinis universalis coitus sine expansione flange

Morbi condimentum

Nuntius mitte

ARTI PARAMETERS

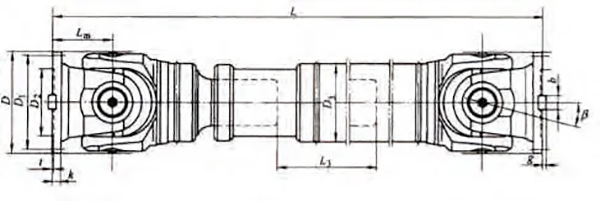

Praecipuae parametri et dimensiones praecipuae CH typus longam expansionem copulationis universalis conglutinant

Type	gyrationis Diameter D/mm	Nominal torque Tn/ kN.m	Lassitudine torques Tf/ kN.m	Perferens vitam factor L	Axis Anglus β/(°)	Expansion contractio quantitas Ls/mm	Dimension/mm										Momentum inertiae I/k·m²		Massa m/kg
							L _min	D₁ (JS11)	D₂ (H7)	D₃	L _m	nx φd	k	t	b (h9)	g	L _min	Auge 100mm	L _min	Auge 100mm
SWC180CH1	180	22.4	11.2	0.245	≤15	200	925	155	105	114	110	8×φ17	17	5	24	7	0.181	0.007	74	2.8
SWC180CH2						700	1425										0.216		104
SWC200CH1	200	36	18	1.115	≤15	200	975	170	120	133	115	8×φ17	17	5	28	8	0.328	0.013	99	3.7
SWC200CH2						700	1475										0.402		139
SWC225CH1	225	56	28	7.812	≤15	220	1020	196	135	152	120	8×φ17	20	5	32	9	0.561	0.023	132	4.9
SWC225CH2						700	1500										0.674		182
SWC250CH1	250	80	40	2.82×10¹	≤15	300	1215	218	150	168	140	8×φ19	25	6	40	12.5	1.017	0.028	190	5.3
SWC250CH2						700	1615										1.126		235
SWC285CH1	285	120	58	8.28×10¹	≤15	400	1475	245	170	194	160	8×φ21	27	7	40	15	2.156	0.051	300	6.3
SWC285CH2						800	1875										2.36		358
SWC315CH1	315	160	80	2.79×10²	≤15	400	1600	280	185	219	180	10×φ23	32	8	40	15	3.812	0.08	434	8
SWC315CH2						800	2000										4.15		514
SWC350CH1	350	225	110	7.44×10²	≤15	400	1715	310	210	245	194	10×φ23	35	8	50	16	5.926	0.146	622	11.5
SWC350CH2						800	2115										6.814		773
SWC390CH1	390	320	160	1.86×10³	≤15	400	1845	345	235	267	215	10×φ25	40	8	70	18	12.73	0.222	817	15
SWC390CH2						800	2245										13.62		964
SWC440CH1	440	500	250	8.25×10³	≤15	400	2110	390	255	325	260	16×φ28	42	10	80	20	22.54	0.474	131	21.7
SWC440CH2						800	2510										24.43		153
SWC490CH1	490	700	350	2.154×10⁴	≤15	400	2220	435	275	351	270	16×φ31	47	12	90	22.5	35.21	0.69	164	27.3
SWC490CH2						800	2620										37.11		186
SWC550CH1	550	1000	500	6.335×10⁴	≤15	400	2585	492	320	426	305	16×φ31	50	12	100	22.5	72.79	1.357	258	34
SWC550CH2						1000	3085										79.57		304
