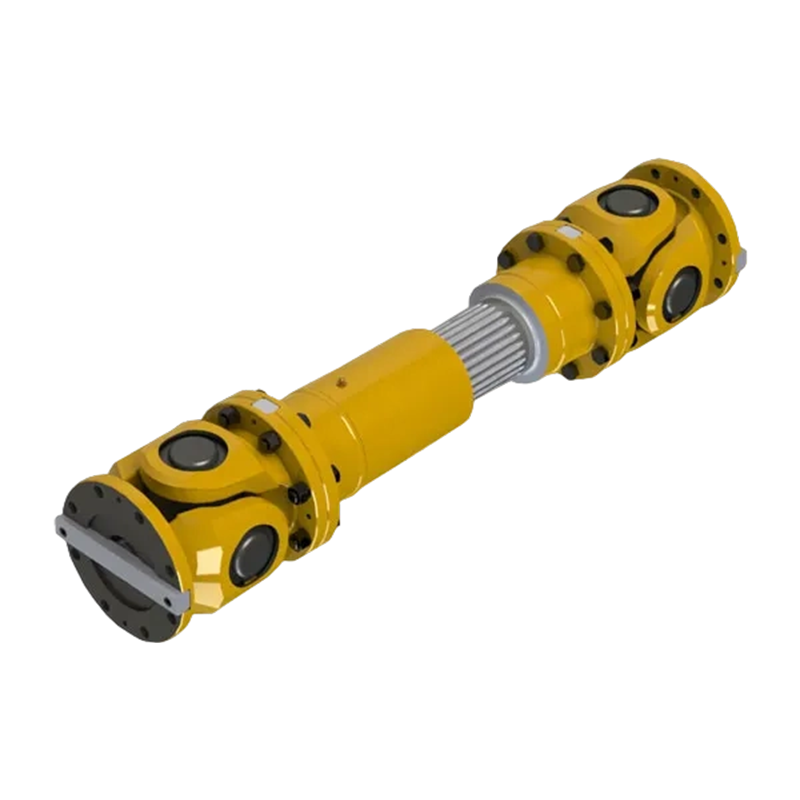

SWC-BF standard expansion flange type universal copulatio
SWC-BF vexillum telescopicum iuncturae universalis Provectior machinalis solutio est ad requisita tradendi et emendandi anguli deviationis efficientis torques. Unicum suum consilium ac telescopicum fabricam praestantem efficiunt in trahendo axialem obsessionem et angulum misalignment, efficaciter minuendo vim in instrumento connectendo et ad altiorem vitam systematis extendendo. Copulatio haec structuram firmam induit et torquem praealtum ferentem capacitatem habet (qualis est torques nominalis ex SWC550BF usque ad 1000 kN · m), quae accommodare potest ad acerbis ambitus industriae applicationis sicut metallurgia, petrochemicals, machinae marinae et machinae graves. Dum tam graves-officii solutiones transmissionis providens, agros pertinentes saepe componunt componentes ut Nylon Apparatus Copulatio, Nylon Manica Gear Copulatio, Nylon Apparatus Coitus interior, et Nylon Apparatus Flexibile Copulatio obviam flexibilibus transmissionibus necessitates diversarum conditionum operantium, certae et certae potentiae tradendae procurandae. Productum stricte sequitur industriam signa in productione, altam constantiam et convenientiam procurans. Eius institutionem facilem et humilem sustentationem requisita signanter reducere in incepti pretia et downtime.
- Morbi condimentum
- Nuntius mitte
ARTI PARAMETERS

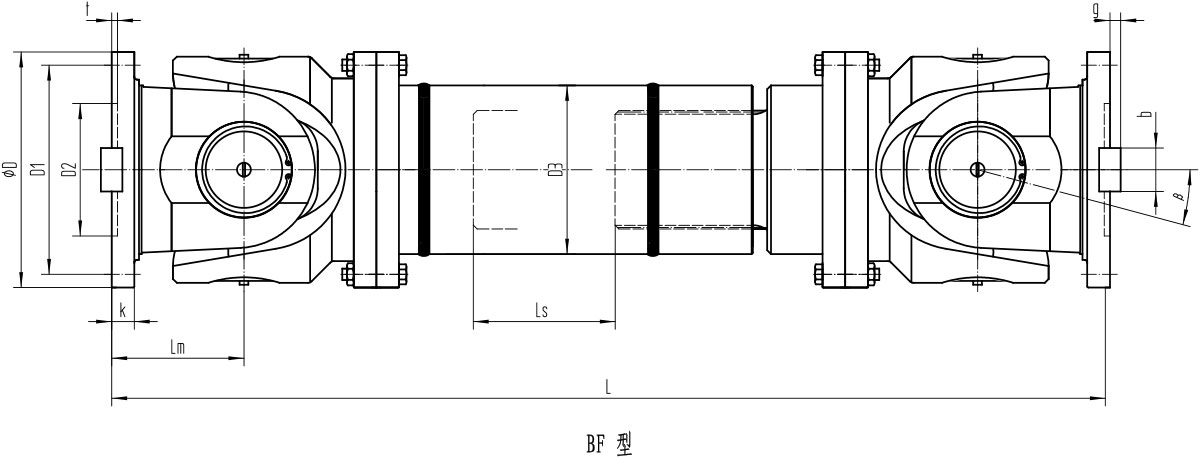

vexillum dilatatio BF LABIUM universale coitus parametri fundamentalis et dimensiones principales
| Type | gyrationis Diameter D/mm | Nominal torque Tn/kN·m | lassitudo torque Tf/kN·m | Perferens vitam factor L | Axis Angulus β/(°) | Expansion contractum quantitas Ls/mm | Dimension/mm | Momentum inertiae ego/kg·m² | Mass m/kg | |||||||||||
| L min | D₁ (jS11) | D₂ (H7) | D₃ | Lm | n×φd | k | t | b (h9) | g | L min | Auge 100mm | L min | Auge 100mm | |||||||
| SWC180BF | 180 | 22.4 | 11.2 | 0.245 | ≤15 | 100 | 840 | 155 | 105 | 114 | 110 | 8×φ17 | 17 | 5 | 24 | 7 | 0.267 | 0.007 | 80 | 2.8 |
| SWC200BF | 200 | 36 | 18 | 1.115 | ≤15 | 110 | 860 | 170 | 120 | 133 | 115 | 8×φ17 | 17 | 5 | 28 | 8 | 0.505 | 0.013 | 109 | 3.7 |
| SWC225BF | 225 | 56 | 28 | 7.812 | ≤15 | 140 | 920 | 196 | 135 | 152 | 120 | 8×φ17 | 20 | 5 | 32 | 9 | 0.788 | 0.023 | 138 | 4.9 |
| SWC250BF | 250 | 80 | 40 | 2.82×10¹ | ≤15 | 140 | 1035 | 218 | 150 | 168 | 140 | 8×φ19 | 25 | 6 | 40 | 12.5 | 1.445 | 0.028 | 196 | 5.3 |
| SWC285BF | 285 | 120 | 58 | 8.28×10¹ | ≤15 | 140 | 1190 | 245 | 170 | 194 | 160 | 8×φ21 | 27 | 7 | 40 | 15 | 2.873 | 0.051 | 295 | 6.3 |
| SWC315BF | 315 | 160 | 80 | 2.79×10² | ≤15 | 140 | 1315 | 280 | 185 | 219 | 180 | 10×φ23 | 32 | 8 | 40 | 15 | 5.094 | 0.08 | 428 | 8 |
| SWC350BF | 350 | 225 | 110 | 7.44×10² | ≤15 | 150 | 1440 | 310 | 210 | 245 | 194 | 10×φ23 | 35 | 8 | 50 | 16 | 7.476 | 0.146 | 582 | 11.5 |
| SWC390BF | 390 | 320 | 160 | 1.86×10³ | ≤15 | 170 | 1590 | 345 | 235 | 267 | 215 | 10×φ25 | 40 | 8 | 70 | 18 | 16.62 | 0.222 | 817 | 15 |
| SWC440BF | 440 | 500 | 250 | 8.25×10³ | ≤15 | 190 | 1875 | 390 | 255 | 325 | 260 | 16×φ28 | 42 | 10 | 80 | 20 | 28.24 | 0.474 | 1290 | 21.7 |
| SWC490BF | 490 | 700 | 350 | 2.154×10⁴ | ≤15 | 190 | 1985 | 435 | 275 | 351 | 270 | 16×φ31 | 47 | 12 | 90 | 22.5 | 48.43 | 0.69 | 1721 | 27.3 |
| SWC550BF | 550 | 1000 | 500 | 6.335×10⁴ | ≤15 | 240 | 2300 | 492 | 320 | 426 | 305 | 16×φ31 | 50 | 12 | 100 | 22.5 | 86.98 | 1.357 | 2567 | 34 |
Zhongye Heavy Industry Technology (Zhenjiang) Co., Ltd.
Zhongye Heavy Industry Technology (Zhenjiang) Co., Ltd. is located in a well-known ancient city, Zhenjiang. We are an enterprise integrating R & D, manufacturing, and sales. As a famous China SWC-BF standard expansion flange type universal copulatio Manufacturers and SWC-BF standard expansion flange type universal copulatio Suppliers, our products are widely used in metallurgical equipment, mining equipment, water equipment, lifting equipment, paper equipment, port equipment and other industries.
Praecipua nostra producta sunt dentata copulatio, manica elastica columna acus coniunctio, columna elastica acus coniunctio, phalerae coniunctio cum elastico paxillo, uni- versa copulatio, mitra copulatio, maxilla coniunctio, stella copulatio, diaphragma copulatio, tympanum copulatio et euismod copulatio, Oldham coniunctio, LABIUM copulatio, concha copulatio, GL genus cylindrus catena copulatio et sic in. Etiam suscipit nibh et vestibulum vestibulum.
Nova officina aream circiter 16463.52m² operit. grave officina 5,500 M2, Subtilitas officina 4,600m², officium aedificationis et gymnasium 2000 M2, aula triclinium 500m², Warehouse 1000m², Viae, virentes, raedam areas 3563 M2.
