MPJ genus diaphragma coitus cum intermedio stipite generis (Q/YP 21002X-2018)

Name: MPJ genus diaphragma coitus cum intermedio stipite generis (Q/YP 21002X-2018)
Rating: 5 (99 reviews)

MPJ Type Diaphragma coitus cum media Shaft (sequutus Q/YP 21002X-2018 vexillum) est solutio nexus efficiens specie evoluta, ut potentiae transmissionis necessitates longae spatii occurrant. Cum hastili mediae firmitatis coniungendo cum praecisione diaphragmatis metallica flexibili coetui, optimam recompensationem consequitur diagonalis, axialis et parallela obsessio sub condicionibus institutionis amplae. Comparatus cum tradito Angue Spring Copultionis, hoc productum, cum omnibus metallicis suis structuram, praebet perquam altam torsionalem rigorem et excellentem dynamicam in comparatione perficiendi, ut systema torques transmissio perquam stabilis servet etiam in ambitibus gyrandis, efficaciter reducendo accentus mechanicos in systemate transmissione et vibratione transmissionis praecavendi.

Membrana nucleus componentis subtilitate machinalis designatur, librans declinationem misalignment per elasticam inflexionem metalli, validam et flexibilem nexum praebens cautionem vinculorum transmissionis praecisionem. In applicationibus industrialibus practicis, haec productorum series validam aptabilitatem demonstrat, cum amplis torques facultatem gerendi. Aureus nominalis ab 63 N·m ad 10000 kN·m extendi potest, ut facile occurrat variis oneris exigentiis a parvis machinarum industrialibus ad gravia generantium officium.

Etsi multi Anguis Spring Copulatio Manufacturers in foro focus in peculiare effusio et buffering requisita, MPJ genus diaphragmatis coniunctio ostendit longiorem vitam et sustentationem inferiorem gratuita in gravibus ambitibus sicut machinatio marina, aerospace, et petrochemicals propter eius lubricationes liberas et corrosiones repugnantes proprietates (ut diaphragmata ferro immaculata utentes). Sicut fortis competitor et summus effectus supplementum ad summam solutionem Anguis Spring Copultionis Suppliers, hoc productum non solum simplificat operationem et sustentationem laboris profluvium magnarum situum industrialium, sed etiam efficit continuam et efficacem operationem instrumentorum gravium in extremis temperaturis et duris instrumentis per certas mechanicas structuras.

Contactus Us

PDF Download

PREV: DMA unius generis diaphragmatis elasticis copulatio
DEINDE: MP diaphragma coniunctio (Q/YP 21001X-2018)

Morbi condimentum

Nuntius mitte

ARTI PARAMETERS

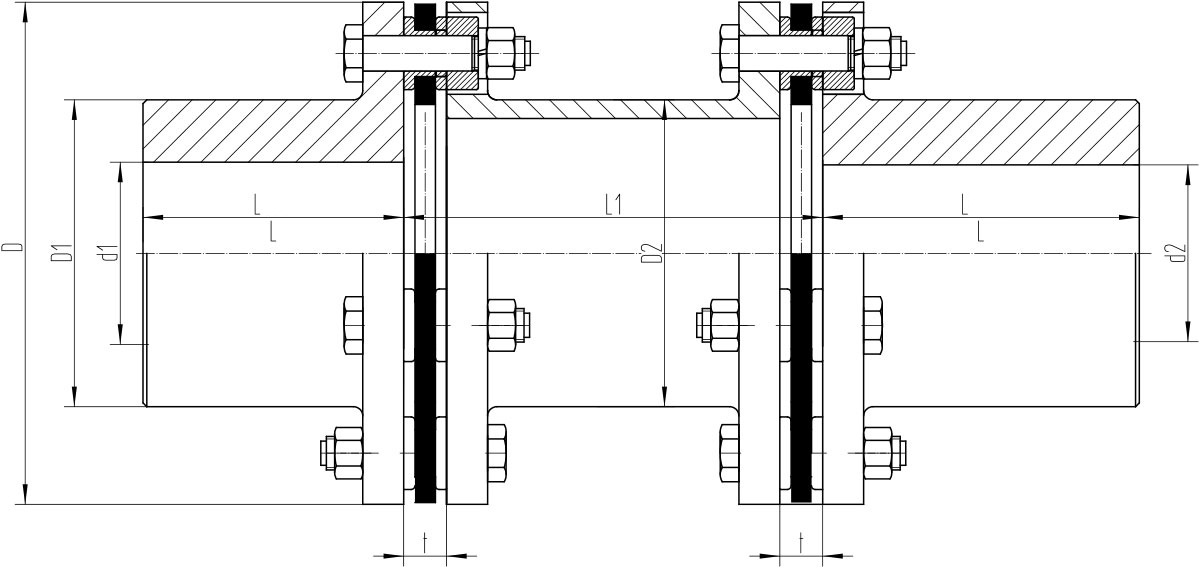

Parametri fundamentales et praecipuae dimensiones MPJ diaphragmatis cum hastili intermedio coniunctio

Type	Nominal torque /N·m	licita celeritas [n]/r.min⁻¹	hastile foraminis diametri d₁, d₂	hastile foraminis longitudo			D	D₁	L₁ _min	t	Mass m/kg		Inertia ego/kg·m²
				J₁	Y	L Recom					L₁min Mass	Mass for additae 1m *
				L	L
MPJ1	63	9300	20,22,24	38	52	40	92	53	70	8±0.2	2	4.1	0.002
			25,28	44	62
			30,32,35,38	60	82
MPJ2	100	8400	25,28	44	62	45	102	63	80		2.9		0.003
			30,32,35,38	60	82
			40,42,45	84	112
MPJ3	250	6700	30,32,35,38	60	82	55	128	77	96	11±0.3	5.7	8	0.009
			40,42,45,48,50,55	84	112
MPJ4	500	5900	35,38	60	82	65	145	91	116		8.5		0.017
			40,42,45,48,50,55,56	84	112
			60,63,65	107	142
MPJ5	800	5100	40,42,45,48,50,55,56	84	112	75	168	105	136	14±0.3	12.5	12	0.034
			60,63,65,70,71,75	107	142
MPJ6	1250	4750	45,48,50,55,56	84	112	80	180	112	140	15±0.2	16.5		0.053
			60,63,65,70,71,75	107	142
			80	132	172
MPJ7	2000	4300	50,55,56	84	112		200	120			21	19	0.082
			60,63,65,70,71,75	107	142
			80,85	132	172
MPJ8	2500	4200	55,56	84	112		205			20±0.4	23		0.092
			60,63,65,70,71,75	107	142
			80,85	132	172
MPJ9	3150	4000	55,56	84	112	90	215	128	160		27	21	0.117
			60,63,65,70,71,75	107	142
			80,85,90	132	172
MPJ10	4000	3650	60,63,65,70,71,75	107	142	100	235	132	170	23±0.5	36		0.191
			80,85,90,95	132	172
MPJ11	5000	3400	60,63,65,70,71,75	107	142	100	250	145	170	23±0.5	42	26	0.252
			80,85,90,95	132	172
			100	167	212
MPJ12	6300	3200	60,63,65,70,71,75	107	142	110	270	155	190		50		0.349
			80,85,90,95	132	172
			100,110	167	212
MPJ13	12500	2850	65,70,71,75	107	142	115	300	162	200	27±0.6	66	47	0.56
			80,85,90,95	132	172
			100,110	167	212
MPJ14	16000	2700	70,71,75	107	142	125	320	176	220		78	47	0.75
			80,85,90,95	132	172
			100,110,120,125	167	212
MPJ15	20000	2450	75	107	142	140	350	186	240	32±0.7	110	51	1.26
			80,85,90,95	132	172
			100,110,120,125	167	212
			130,140	202	252
MPJ16	25000	2300	80,85,90,95	132	172	145	370	203	250		125	72	1.63
			100,110,120,125	167	212
			130,140	202	252
MPJ17	31500	2150	90,95	132	172	165	400	230	290		160		2.45
			100,110,120,125	167	212
			130,140, 150	202	252
			160	242	302
MPJ18	40000	1950	100,110,120,125	167	212	175	440	245	300	38±0.9	220		3.99
			130,140, 150	202	252
			160,170	242	302
MPJ19	45000	1850	110,120,125	167	212	185	460	260	320		245	89	4.98
			130,140, 150	202	252
			160,170,180	242	302
MPJ20	50000	1800	120,125	167	212	200	480	280	350		275		6.28
			130,140, 150	202	252
			160,170,180	242	302
			190,200	282	352
MPJ21	56000	1700	130,140, 150	202	252	210	500	295	370		320		7.68
			160,170,180	242	302
			190,200	282	352
MPJ22	63000	1600	140,150	202	252	220	540	310	380	44±1	400	110	11.6
			160,170,180	242	302
			190,200,220	282	352
MPJ23	80000	1450	150	202	252	240	600	335	410	50±1.2	560	145	19.8
			160,170,180	242	302
			190,200,220	282	352
			240	330	410
MPJ24	100000	1400	160,170,180	242	302	255	620	350	440		620		23.6
			190,200,220	282	352
			240,250	330	410
MPJ25	125000	1300	180	242	302	275	660	385	480		740		31.9
			190,200,220	282	352
			240,250,260	330	410
MPJ26	160000	1200	190,200,220	282	352	295	720	410	510	60±1.4	970	190	50.4
			240,250,260	330	410
			280	380	470
MPJ27	200000	1150	220	282	352	300	740	420	520		1050		57
			240,250,260	330	410
			280,300	380	470
MPJ28	250000	1100	240,250,260	330	410	320	770	450	560		1200	215	69.4
			280,300,320	380	470
MPJ29	315000	1050	250,260	330	410	350	820	490	620		1400		95.5
			280,300,320	380	470
			340	450	550
MPJ30	500000	1000	280,300,320	380	470	350	875	480	600	50±1.6		235	96.5
			340,360	450	550			550					109.5
MPJ31	630000	930	300,320	380	470	350	935	520	630	60±1.9	1800	290	142
			340,360,380	450	550			560					152
			400	540	650			600					162
MPJ32	800000	880	320	380	470	380	1030	480	690		2250	330	194
			340,360,380	450	550			600					224
			400,420	540	650			640					240
MPJ33	1000000	820	360,380	450	550	400	1080	580	726	66±2.2	2750	390	271
			400,420,440,450,460	540	650			700					325
MPJ34	1250000	740	400,420,440,450			460	1160	620	836	70±2.3	3500	450	387
			460,480,500					750					465
MPJ35	1600000	680	440,450,460,480,500			520	1290	790	946	82±2.6	5000	570	750
			530,560	680	800			840					810
MPJ36	2000000	620	480,500	540	650	570	1410	760	1040	92±2.8	6600	710	1050
			530,560,600	680	800			920					1290
MPJ37	2800000	570	450,460,480,500	540	650	610	1530	810	1100	105±3	8400	880	1630
			530,560,600,630	680	800			980					1950
MPJ38	4000000	520	560,600,630	680	800	670	1670	950	1210	115±3.4	11000	1050	2670
			670,710	780	-			1070					3030
MPJ39	5000000	480	600,630	680	800	730	1830	970	1320	125±3.7	14500	1350	4060
			670,710,750	780	-			1170					4800
MPJ40	6300000	430	670,710,750	780	-	800	2000	1140	1450	130±4	19000	1600	6600
			800,850	880				1290					7500
MPJ41	8000000	400	750	780			2200	1260	1600	140±4.4	25000	1850	10400
			800,850	880				1420					11900
MPJ42	10000000	350	800,850			960	2400	1370	1760		32000	2100	15200
			900,950	980				1550					17400

Nota:

1. l praeponitur commendatio.

2. Valores massae et momentum inertiae approximatae secundum commendationem L computantur
