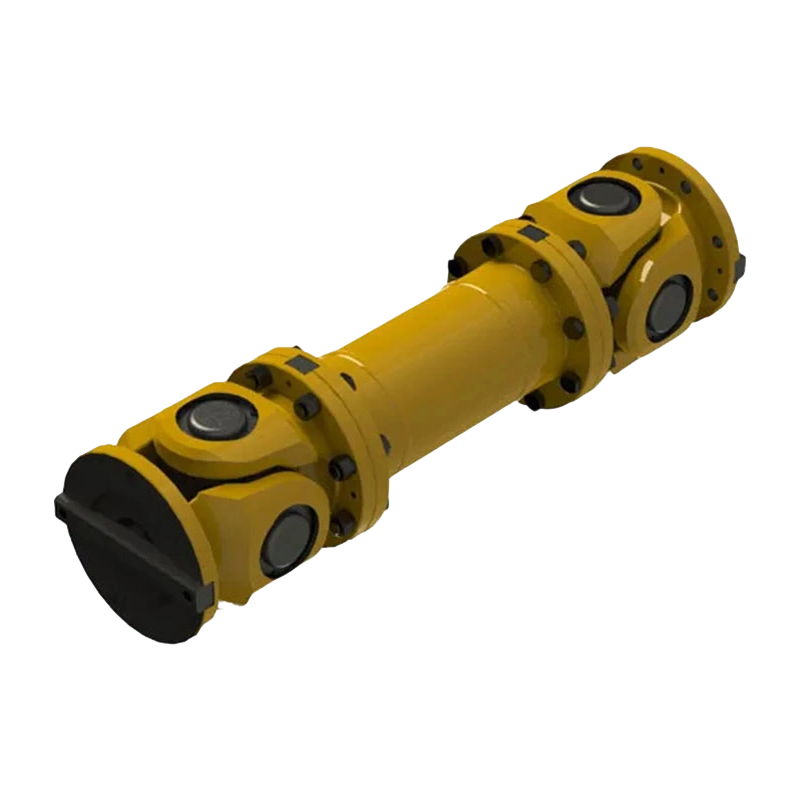

SWC-WF type magnae magnitudinis universalis coitus sine expansione flange

Name: SWC-WF type magnae magnitudinis universalis coitus sine expansione flange
Rating: 5 (99 reviews)

SWC-WF Series Fingeless Communis Articulus potestatem efficiens valde efficit transmissio sub certis spatiis hastae condicionibus per certas compages iuncturam universalem. Core consilium flangeless signanter auget altiorem rigorem torsionum tradendi ratio. Productum hoc molliter compensare potest pro vecte misalignment angulorum 5° ad 15°, efficaciter reducere vim damni in operatione per efficientiam optimizing torques transmissionis et signanter reducendo intentionem accentus internam. Hoc maxime leves et continuas operationem praebet pro magnis catenis tradendis industrialibus.

In verbis specificationibus haec copulatio capacitatem oneris tolerantis praevalidam exhibet, cum rotatione diametri ab 620mm ad 1200mm vndique, torques nominalis usque ad 12000kN·m, et torques lassitudines usque ad 7200kN·m. Eius materias diligenter selectas et praealtissimae fabricationis praecisionem faciunt late in volvendo metallurgico, fodiendo opprimendo et magno apparatu levato. Cum superiori suo diuturnitate et diuturnitate et simpliciore structura, quae nullam emendationem obsessio requirit, optima electio facta est pro hodiernis gravibus industria quaerendis altam fidem et solutiones transmissionis pactae..

Contactus Us

PDF Download

PREV: SWC-CH typus longam expansionem conglutinationis universalis copulationis
DEINDE: HN genus lapsus copulatio

Morbi condimentum

Nuntius mitte

ARTI PARAMETERS

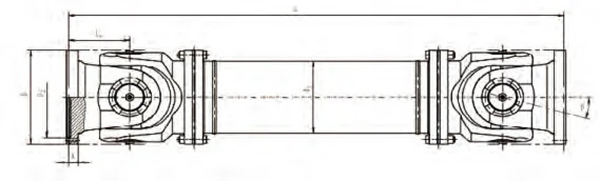

Pameter fundamentalis et principales dimensiones WF typus magnae magnitudinis universalis coniunctio sine expansione flange

Type	Rotatione Diameter D/mm	Nominal torque Tn/ kN.m	Lassitudine torques Tf/ kN.m	Perferens vitam elementum L	Axis Anglus β/(°)	Dimension/mm
						L _min			D₁ (Js11)	D₂ (H7)	D₃	L _m			nx φd	k
						β=5°	β=10°	β=15°				β=5°	β=10°	β=15°
SWC620WF	620	1600	960	0.21×10⁶	5°	2140	2220	2260	575	500	480	325	345	355	20×φ26	70
		1400	840	0.16×10⁶	10°
		1220	730	0.13×10⁶	15°
SWC680WF	680	2180	1310	0.51×10⁶	5°	2250	2350	2390	635	550	530	350	375	385	24×φ26	70
		1900	1140	0.41×10⁶	10°
		1640	980	0.32×10⁶	15°
SWC740WF	740	2800	1680	1.18×10⁶	5°	2500	2626	2660	685	600	590	385	415	425	24×φ33	80
		2450	1470	0.98×10⁶	10°
		2100	1260	0.75×10⁶	15°
SWC780WF	780	3300	1980	1.73×10⁶	5°	2600	2740	2800	725	640	630	405	440	455	24×φ33	90
		2860	1720	1.48×10⁶	10°
		2500	1500	1.06×10⁶	15°
SWC840WF	840	4100	2460	3.63×10⁶	5°	2840	2920	2980	775	680	660	460	480	495	24×φ39	100
		3580	2150	3.11×10⁶	10°
		3100	1860	2.23×10⁶	15°
SWC920WF	920	5390	3230	9.02×10⁶	5°	3020	3120	3180	855	730	750	500	525	540	24×φ39	110
		4700	2820	8.12×10⁶	10°
		4050	2430	5.62×10⁶	15°
SWC1000WF	1000	6900	4140	18.2×10⁶	5°	3270	3350	3430	920	800	790	555	575	595	20×φ45	125
		6000	3600	15.3×10⁶	10°
		5200	3120	12.2×10⁶	15°
SWC1100WF	1100	9200	5500	46.0×10⁶	5°	3660	3740	3840	1020	880	860	610	630	655	20×φ45	135
		8000	4800	36.1×10⁶	10°
		6900	4140	30.3×10⁶	15°
SWC1200WF	1200	12000	7200	110×10⁶	5°	3930	3990	4110	1110	960	940	670	685	715	20×φ52	150
		10400	6240	94×10⁶	10°
		9000	5400	74×10⁶	15°
