SWC-BF vexillum dilatatio magna amplitudo iuncturae universalis LABIUM

Name: SWC-BF vexillum dilatatio magna amplitudo iuncturae universalis LABIUM
Rating: 5 (99 reviews)

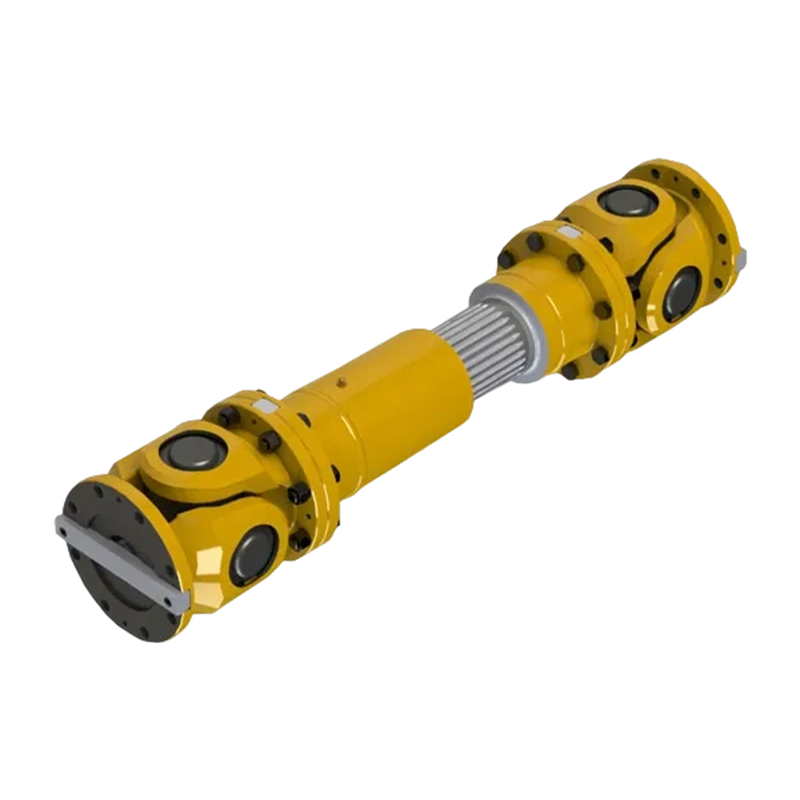

SWC-BF Large-Size Standard Telescopic Flange Universalis Copulatio est nucleus componentis machinarum gravium quae ultra-altae torques transmissionis et flexibilium emendae obsessionis integrat. Vexillum suum singulare telescopicum designatio flange instrumenti praebet excellentibus axialibus expansionis et contractionis facultatibus, efficaciter absorbens axialem displacentiam causata expansionem, frigidam contractionem, seu deformationem machinae in operatione systematis, continuam stabilitatem potestatis tradendi sub multiplicibus conditionibus dynamicis.

Haec productorum series robustam speciem demonstrat, cum diametro vndique a 620 mm usque ad 1320 mm flexus, torques nominalis attingens infiguum 16000 kN·m, maximum lassitudo torques 9600 kN·m, efficiens idoneus ad tractandas provocationes summi oneris in exigendis agris ut ferrum excoquendi, fodiendi comminuendi, industriae generationis et machinandi fabricandi. Cum certa universali compage coniuncta, haec coniunctio accurate emendam angularis obsessionis consequi potest intra angulum declinationis angulum 5° ad 15°, signanter reducendo accentus mechanicos et in apparatu connexo induens.

Per firmum structuris consilium quod signa industriae stricte inhaeret, non solum altae potentiae conversionis efficientiam efficit, sed etiam signanter in operando diuturno sumptuum sustentationem minuit. Praecipua solutio technica est ut nexus in magno firmitate assequendis in magnis systematibus industrialibus.

Contactus Us

PDF Download

PREV: SWC-BF standard expansion flange type universal copulatio
DEINDE: SWC-DH genus brevem expansionem conglutinationis universalis copulationis

Morbi condimentum

Nuntius mitte

ARTI PARAMETERS

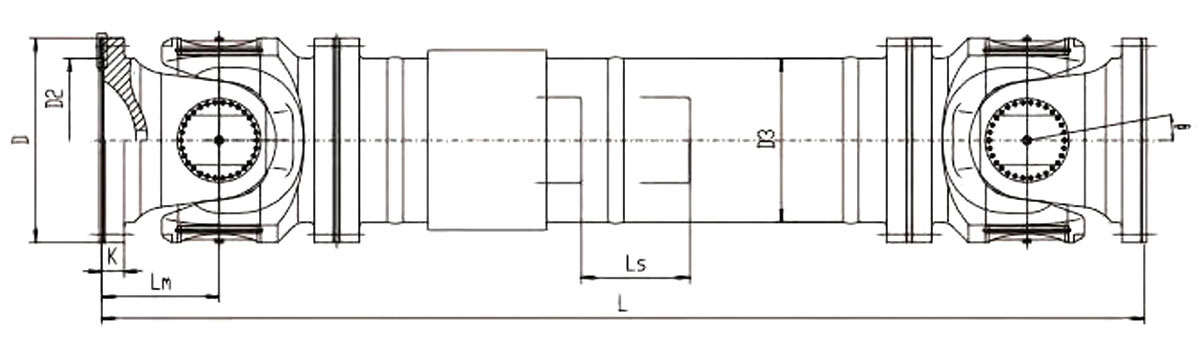

BF type magnae magnitudinis vexillum expansion LABIUM universale coitus basic parametri et dimensiones principales

Type	gyrationis Diameter D/mm	Nominal torque Tn/kN·m	Lassitudine torques Tf/kN·m	Perferens vitam elementum K	Axis Anglus β/(°)	Expansion contractio quantitas Ls/mm	Dimension/mm
							Lmin			D₁ (jS11)	D₂ (H7)	D₃	L _m			n×φd	k
							β=5°	β=10°	β=15°				β=5°	β=10°	β=15°
SWC620BF	620	1600	960	0.21×10 ⁶	5°	250	3100	3180	3220	575	500	480	325	345	355	20×φ26	70
		1400	840	0.16×10 ⁶	10°
		1220	730	0.13×10 ⁶	15°
SWC680BF	680	2180	1310	0.51×10 ⁶	5°	250	3250	3350	3390	635	550	530	350	375	385	24×φ26	70
		1900	1140	0.41×10 ⁶	10°
		1640	980	0.32×10 ⁶	15°
SWC740BF	740	2800	1680	1.18×10 ⁶	5°	250	3460	3580	3620	685	600	590	385	415	425	24×φ33	80
		2450	1470	0.98×10 ⁶	10°
		2100	1260	0.75×10 ⁶	15°
SWC780BF	780	3200	1920	1.73×10 ⁶	5°	250	3720	3860	3920	725	640	630	405	440	455	24×φ33	90
		2860	1720	1.48×10 ⁶	10°
		2500	1500	1.06×10 ⁶	15°
SWC840BF	840	3600	2160	3.63×10 ⁶	5°	250	3960	4040	4100	775	680	660	460	480	495	24×φ39	100
		3580	2150	3.11×10 ⁶	10°
		3100	1860	2.23×10 ⁶	15°
SWC920BF	920	5300	3200	9.02×10 ⁶	5°	300	4520	4620	4680	855	730	750	500	525	540	24×φ39	110
		4700	2820	8.12×10 ⁶	10°
		4050	2430	5.62×10 ⁶	15°
SWC1000BF	1000	6900	4140	18.2×10 ⁶	5°	300	5020	5100	5180	920	800	790	555	575	595	20×φ45	125
		6000	3600	15.3×10 ⁶	10°
		5200	3120	12.2×10 ⁶	15°
SWC1100BF	1100	9200	5520	46.0×10 ⁶	5°	300	5640	5720	5820	1020	880	860	610	630	655	20×φ45	135
		8000	4800	36.1×10 ⁶	10°
		6900	4140	30.3×10 ⁶	15°
SWC1200BF	1200	12000	7200	110×10 ⁶	5°	300	6380	6440	6550	1110	960	940	670	685	715	20×φ52	150
		10400	6240	94×10 ⁶	10°
		9000	5400	74×10 ⁶	15°
SWC1280BF	1280	14600	8760	212× 10⁶	5°	350	7200	7280	7360	1190	1020	1000	725	745	765	20×φ52	160
		12700	7600	165×10 ⁶	10°
		11000	6600	138×10 ⁶	15°
SWC1320BF	1320	16000	9600	28810 ⁶	5°	350	8000	8080	8150	1230	1040	1020	750	770	790	24×φ52	170
		13900	8340	224×10 ⁶	10°
		12000	7200	187×10 ⁶	15°
