Contineo tactus

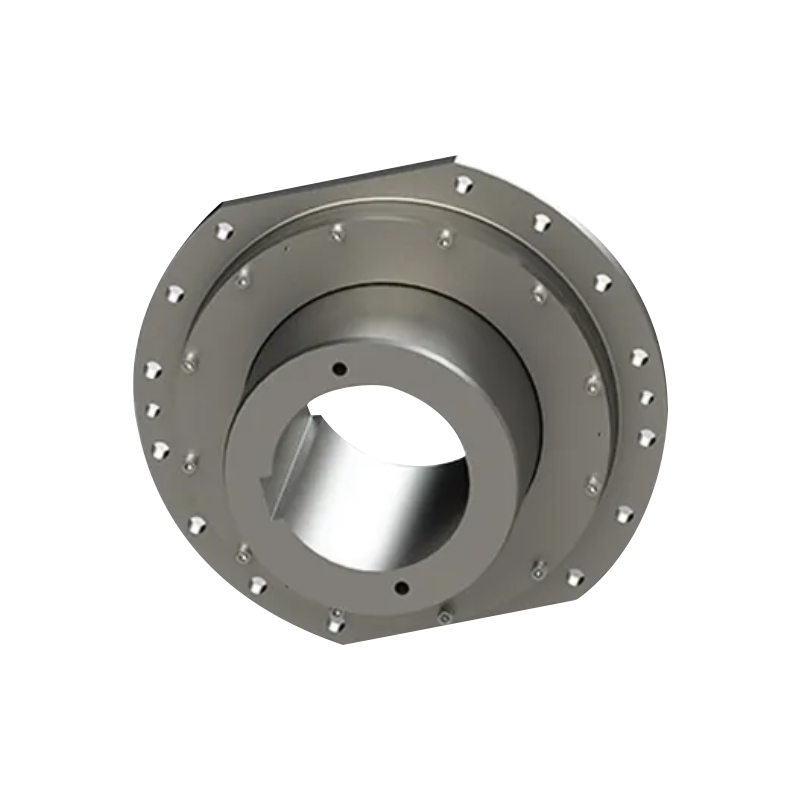

QGCA genus foraminis cylindrici juncturae globosi cylindri coitus (Q/YJ 16030X-2018)
Genus cylindricum cylindricum QGCA rotundum coitu globosum gerens (obsequium cum vexillo Q/YJ 16030X-2018) lineamenta cylindrica scapo gerebant et scutulis sphaericis valde simpliciores machinis et processibus comitiis servato alta mobilitate. Productum hoc ostendit facultatem praevalidam onere ferentem, cum torques nominalis amplitudinis 4kN·m ad 900kN·m et maximam vim radialem licitam 520kN. Comparatus ad iuncturas calces traditionales, circiter 30% ad emendationem perficiendam praebet, sufficiens ad tractandum graves ictus et crebra condiciones inceptae in M3-M8 iugis operantis. Propter contactum sphaericum consilium inter scutellas et boream, non solum inflexionis angularis emendae facultatem obtinet usque ad 1.5°, efficaciter absorbens accentus per errores institutionis et deformationis fabricas causatus, sed etiam agit similiter ad sui aligning afferentem, signanter minuendo accessionem flexionis momentum vectis reducentis output, per quod ratio a lassitudine damnum defendens. Porro haec copulatio compaginatam habet et blande et quiete operatur. Constructo in indice vestium deducta, specimen technicum subsidium praebet ad extensionem efficientem et condicionem convenientem vigilantiam gravium machinarum in angustiis..
- Morbi condimentum
- Nuntius mitte
ARTI PARAMETERS

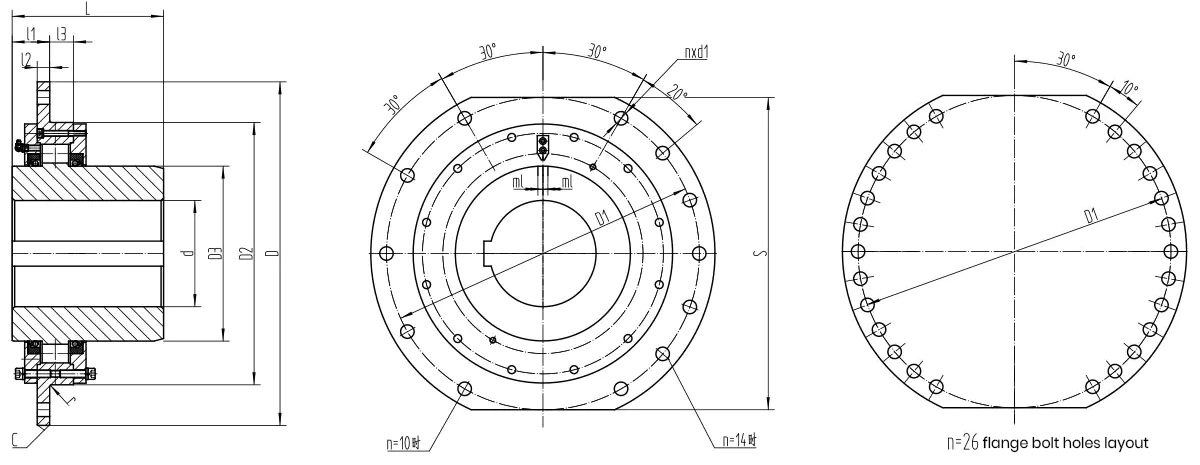

Parametri fundamentales et dimensiones praecipuae QGCA foraminis cylindrici coitus cum cylindro coitus globosus
| Type | Nominal torque Tn/kN·m | licet Radial vi/KN | d (H7) | L | D | D₁ | D₂ | D₃ | n×d₁ | S | l₁ | l₂ | l₃ | r | c | gere scale / ml | Momentum inertiae /k·m² | Mass m/kg |
| QGCA1 | 5 | 16.5 | 40,42,45,48 | 84 | 250 | 220 | 160 | 85 | 10×Φ14 | 220 | 42 | 12 | 24 | 2 | 1.6 | 4 | 0.065 | 12.8 |
| 50,55 | ||||||||||||||||||
| QGCA2 | 7.1 | 18.5 | 45,48,50,55 | 84 | 280 | 250 | 180 | 90 | 10×Φ14 | 250 | 42 | 12 | 24 | 2.5 | 1.6 | 4 | 0.102 | 16.1 |
| 60 | 107 | 2 | 15.9 | |||||||||||||||
| QGCA3 | 9 | 20 | 48,50,55 | 84 | 320 | 280 | 200 | 95 | 10×Φ18 | 280 | 45 | 15 | 25 | 2.5 | 1.6 | 4 | 0.193 | 21.9 |
| 60,65 | 107 | 2 | 21.8 | |||||||||||||||
| QGCA4 | 14 | 25 | 60,65,70,75 | 107 | 340 | 300 | 220 | 130 | 10×Φ18 | 300 | 45 | 15 | 25 | 2.5 | 2 | 4 | 0.278 | 29.8 |
| 80,85 | 132 | 2.5 | 29.5 | |||||||||||||||
| QGCA5 | 18 | 35 | 70,75 | 107 | 360 | 320 | 240 | 150 | 10×Φ18 | 320 | 45 | 15 | 25 | 2 | 6 | 0.369 | 35 | |
| 80,85,90,95 | 132 | 3 | 2.5 | 36.5 | ||||||||||||||
| QGCA6 | 22.4 | 38.5 | 80,85,90,95 | 132 | 380 | 340 | 260 | 160 | 10×Φ18 | 340 | 45 | 15 | 25 | 3 | 2.5 | 6 | 0.496 | 43.3 |
| 100,110 | 167 | 3 | 43.7 | |||||||||||||||
| QGCA7 | 28 | 42 | 90,85,90,95 | 132 | 400 | 360 | 280 | 170 | 10×Φ18 | 360 | 47 | 15 | 33 | 2.5 | 6 | 0.654 | 53 | |
| 100,110,120 | 167 | 3 | 52 | |||||||||||||||
| QGCA8 | 35.5 | 49 | 100,110,120 | 167 | 420 | 380 | 310 | 200 | 10×Φ18 | 390 | 47 | 15 | 33 | 2.5 | 6 | 0.96 | 69 | |
| 130,140 | 202 | 3 | 3 | 67 | ||||||||||||||
| QGCA9 | 50 | 70 | 100,110,120 | 167 | 450 | 400 | 340 | 230 | 10×Φ22 | 400 | 52 | 20 | 28 | 3 | 2.5 | 6 | 1.45 | 89 |
| 130,140,150 | 202 | 3 | 88.5 | |||||||||||||||
| QGCA10 | 100 | 120 | 130,140,150 | 202 | 550 | 500 | 420 | 280 | 10×Φ22 | 500 | 60 | 20 | 38 | 3 | 3 | 8 | 3.81 | 156 |
| 160,170,180 | 242 | 151 | ||||||||||||||||
| QGCA11 | 160 | 140 | 160,170,180 | 242 | 580 | 530 | 450 | 300 | 14×Φ22 | 530 | 60 | 20 | 38 | 3 | 3 | 8 | 4.932 | 184 |
| 190,200 | 282 | 4 | 181 | |||||||||||||||
| QGCA12 | 224 | 170 | 190,200,220 | 282 | 650 | 600 | 530 | 360 | 14×Φ22 | 580 | 65 | 25 | 33 | 3 | 4 | 8 | 9.09 | 267 |
| 240,250 | 330 | 247 | ||||||||||||||||
| QGCA13 | 355 | 300 | 200,220 | 282 | 680 | 630 | 560 | 400 | 26×Φ22 | 600 | 65 | 25 | 35 | 4 | 4 | 8 | 12.1 | 319 |
| 240,250,260 | 330 | 311 | ||||||||||||||||
| QGCA14 | 500 | 340 | 240,250,260 | 330 | 710 | 660 | 600 | 440 | 26×Φ26 | 640 | 82 | 35 | 43 | 4 | 4 | 8 | 18.2 | 403 |
| 280,300 | 380 | 5 | 394 | |||||||||||||||
| QGCA15 | 630 | 380 | 240,250,260 | 330 | 780 | 730 | 670 | 500 | 26×Φ26 | 700 | 82 | 35 | 43 | 4 | 4 | 8 | 29.4 | 544 |
| 280,300,320 | 380 | 5 | 560 | |||||||||||||||
| QGCA16 | 710 | 450 | 280,300,320 | 380 | 850 | 800 | 730 | 550 | 26×Φ26 | 760 | 82 | 35 | 43 | 4 | 5 | 8 | 44 | 693 |
| 340,360,390 | 450 | 6 | 664 |
Nota:
1. Si diametri d et longitudo L scapi foraminis extra ordinem in tabula recensita sint, congruere possunt cum fabrica.
2. Momentum ofinertiae et massae approximationes secundum minimum diametri hujus foraminis computantur.
