ZCD genus conicum scapi foraminis elastici pin calces copulationis (Q/YZ33007X-2018)

Name: ZCD genus conicum scapi foraminis elastici pin calces copulationis (Q/YZ33007X-2018)
Rating: 5 (99 reviews)

ZCD genus foraminis conici foraminis elastici acu calces iuncturae Core Feature

1. Optume pyramidi cavo apta; Unus finis est foraminis conici foraminis, quae a superficie conica coarctatur, altam alignment accurationem et convenientem institutionem et disassemblem obtinet. Apta est ad nexum directam cum output conico vecte motoris/calcis reducentis, stabilis et certae tradendae torques procurandi.

2. Gravis-officium et efficiens tradendae Aureus Aureus nominalis amplitudo lata est (usque ad plura milia N·m), cum diametro minore volubili, minore volumine et leviori pondere sub eodem torque, quod ex parte coniunctionis typum dente substituere potest.

3. Tres dimensiva ultricies facultatem. Paxillus elasticus et sulcus dens axialis (circiter 1.5~2.5mm), radialis (circiter 0.3~0.6mm), et angulares (circiter 0,5°) deflexiones compensare possunt, accommodantes ad errores institutiones et conditiones deformationes laborantes.

4. Sustentacionem-liberum et humilis sonitus nylon clavus sui lubricus est, nullo addito lubrico egens, et mundus et environmentally- amicae structura simplex est, et paxillus reparari potest, sublato laminae custodiae, submissis sumptibus sustentationis.

5. Simplex structura et facilis vestibulum Paucae partes, nulla summus praecisio, processus calces requiritur, cyclus fabricandi brevis, et sumptus inferiores.

6. Opus conditionibus et limitations Distinctio temperatus laborans est -20℃ ad 70℃, apta ad machinas generales cum medio ad onera gravia et frequentes reductionis initium et strepitus, sunt mediocris, non apta occasionibus cum strictis requisitis ad tremorem/strepitum imperium, altum celeritatem, vel extremas temperaturas.

7. ONERO praesidio Cum onustum, paxillus elasticus deformare vel frangere potest, ad principalia tradenda (ut motor, reducere).
Summarium

Cum hastili conico foramine, summus certae noctis et conventus opportunus/discoetionis effectus sunt. Etiam gravia onera transmissio et torsio notat, ac trium elementorum compensatio. Lubricatio libera et facilis est ad conservationem, eamque facit ad electionem sumptus-efficax ratio extensionis mediae et gravis officii conicae.

Contactus Us

PDF Download

PREV: LCA genus tire coniunctio (Q/YC 34009X-2018)
DEINDE: ZCL genus elasticum pin coitu cum rota fregit (Q/YZ 33008X-2018)

Morbi condimentum

Nuntius mitte

ARTI PARAMETERS

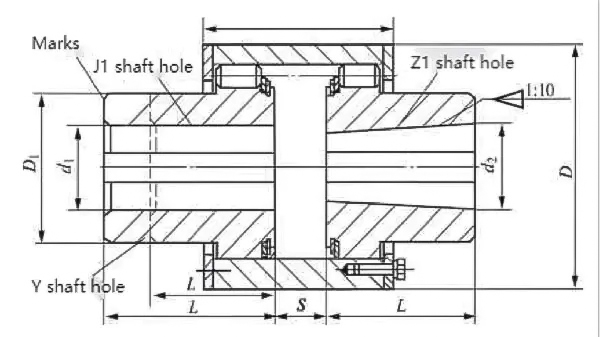

Basic parametri et dimensiones principales ZCD generis elastici acus calces coitus cum hastili conico foraminis

Type	Nominal torque N·m	licita celeritas [n]/r.min⁻¹	hastile foraminis diametri d₁, d₂	hastile foraminis longitudo		D	D₁	B	S	Momentum inertia ego/kg·m²	Mass m/kg
Type	Nominal torque N·m	licita celeritas [n]/r.min⁻¹	hastile foraminis diametri d₁, d₂	Y	J₁、Z₁	D	D₁	B	S	Momentum inertia ego/kg·m²	Mass m/kg
ZCD1	112	5000	6,18,19	42	30	78	40	65	14.5	0.002	2.08
			20,22,24	52	38			70	16.5		2.25
			25,28	62	44			75	20.5		2.3
ZCD2	250		25,28	62	44	90	50	88	20.5	0.004	3.74
ZCD2	250		30,32	82	60	90	50	92	24.5	0.004	3.98
ZCD3	630	4500	30,32,35,38	82	60	118	65	115	25	0.015	9.43
ZCD3	630	4500	40,42	112	84	118	65	125	31	0.016	10.3
ZCD4	1800	4200	40,42,45,48,50,55,56	112	84	158	90	145	32	0.052	22.46
ZCD4	1800	4200	60	142	107	158	90	152	39	0.061	22.36
ZCD5	4500	4000	50,55,56	112	84	192	120	145	32	0.131	29.24
			60,63,65,70,71,75	142	107			152	39	0.141	21.71
			80	172	132			158	44	0.143	30.45
ZCD6	8000	3300	60,63,65,70,71,75	142	107	230	130	175	40	0.309	48.16
ZCD6	8000	3300	80,85,90,95	172	132	230	130	178	45	0.312	47.25
ZCD7	11200	2900	70,71,75	142	107	260	160	178	40	0.535	64.13
			80,85,90,95	172	132			182	45	0.546	68.38
			100,110	212	167			188	50	0.57	69.42
ZCD8	18000	2500	80,85,90,95	172	132	300	190	202	46	1.091	102.7
			100,110,120,125	212	167			208	51	1.157	108.8
			130	252	202			212	56	1.105	101.7
ZCD9	25000	2300	90,95	172	132	335	220	232	47	1.957	142.4
			100,110,120,125	212	167			238	52	2.097	157.5
			130,140,150	252	202			242	57	2.157	156
ZCD10	31500	2100	100,110,120,125	212	167	355	245	240	53	2.728	184.2
			130,140,150	252	202			245	58	2.84	188.5
			160,170	302	242			255	68	2.926	184.1
ZCD11	40000	2000	110,120,125	212	167	380	260	260	53	3.659	212.3
			130,140,150	252	202			265	58	3.87	225
			160,170,180	302	242			275	68	4.021	224.8
ZCD12	63000	1700	130,140,150	252	202	445	290	282	58	7.548	352.7
			160,170,180	302	242			252	68	7.94	335.2
			190,200	352	282			302	78	8.051	327.9
ZCD13	100000	1500	150	252	202	515	345	313	58	14.925	468.4
			160,170,180	302	242			323	68	15.892	513.1
			190,200,220	352	282			332	78	16.514	524.5
