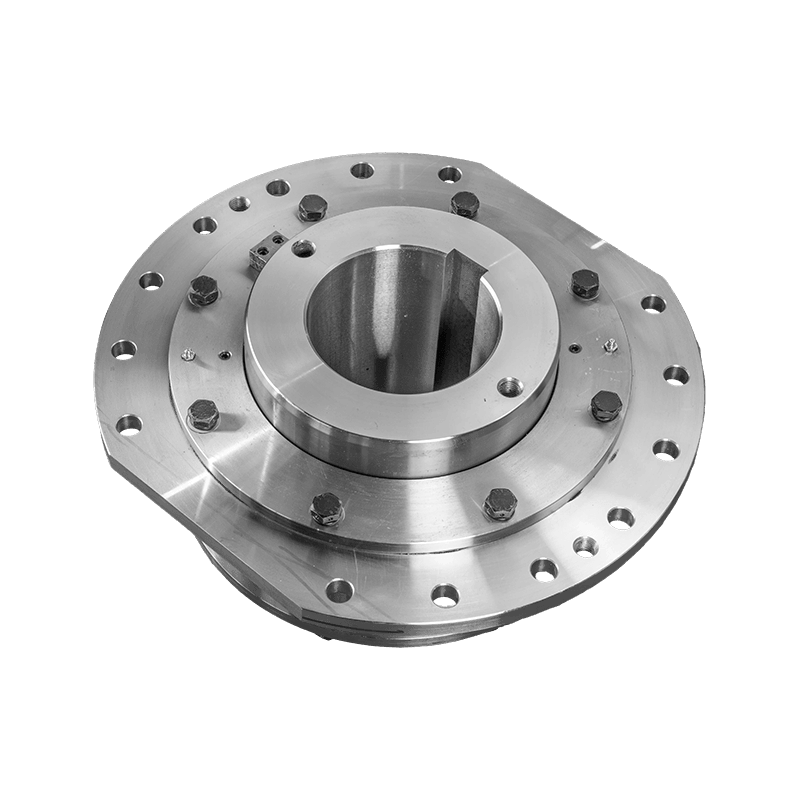

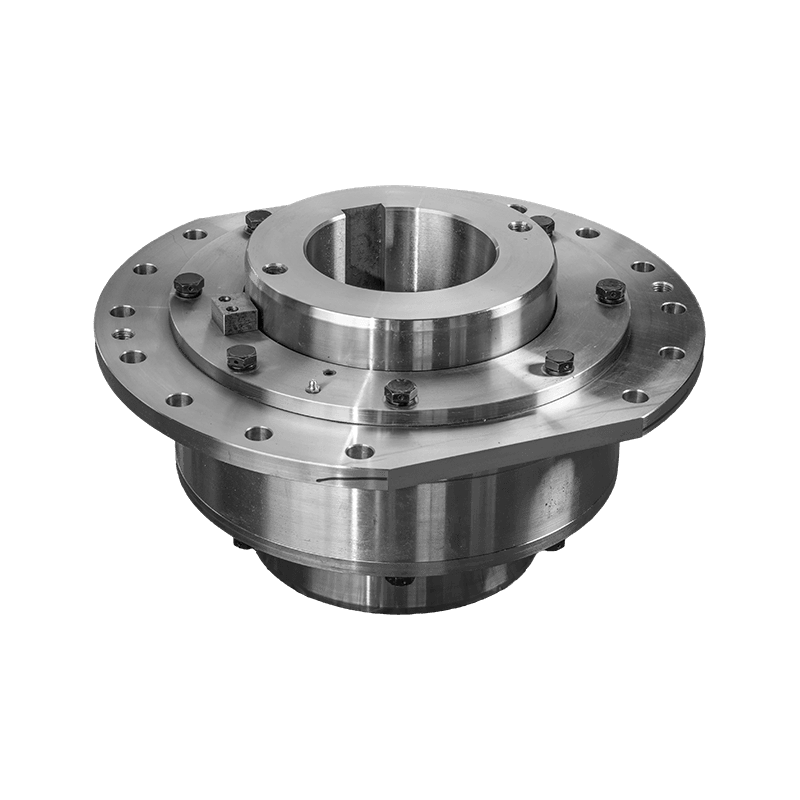

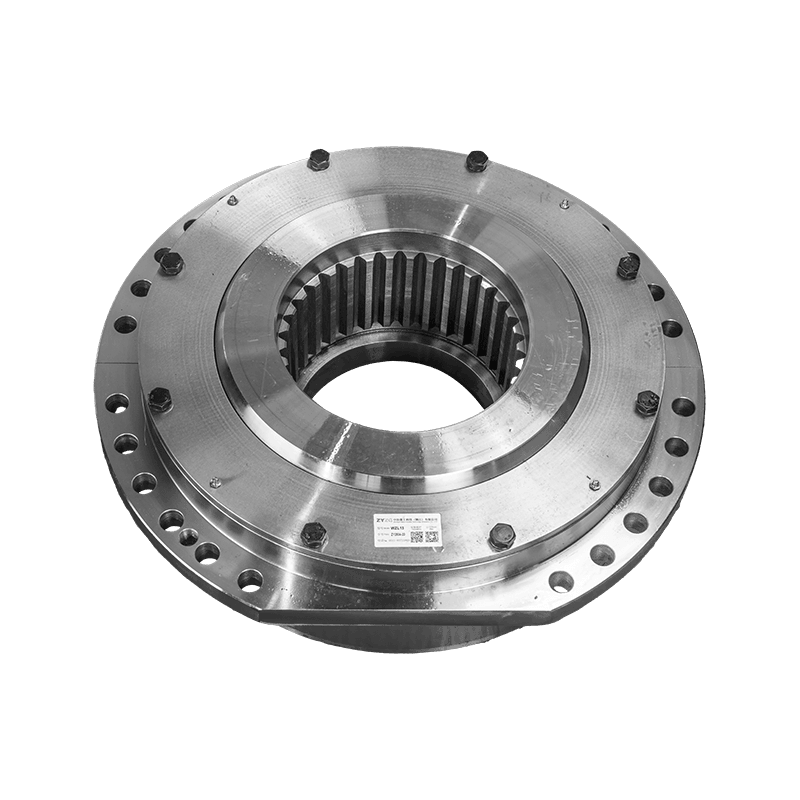

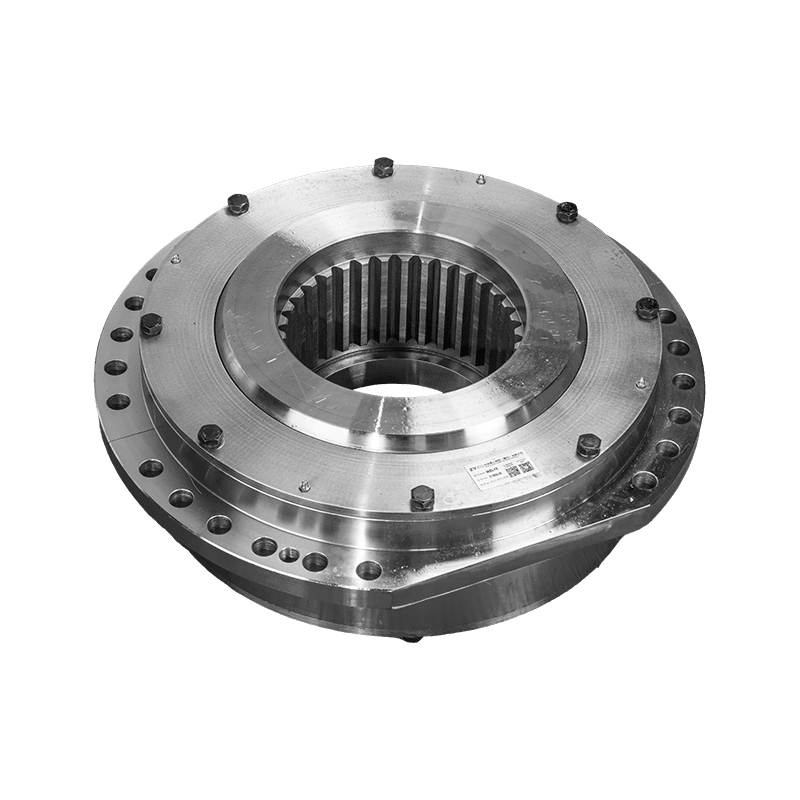

QJC genus tympani coitus (Q/YJ16027X-2018)
Product Overview:
Series QJC calceorum coronatorum densorum (obsequium vexillum Q/YJ16027X-2018) est magnae certae potentiae transmissionis componentis designatae ad ambitus industriales postulandos. Machinatus speciatim ad applicationes graves officiosas, cum elasticis elasticis axibus coronato-dens axibus praecisionem fabricatam componit ad efficientiam et efficaciam instrumentorum communicationis in vecte iunctis tradendis superioribus torques tradendis.
Clavis commoda pro Internationalis emptoribus:
Superior misalignment 1. Tractantem: QJC structura dentis coronata praecisione machinata efficaciter compensat hastili angulari, radiali et axiali misalignment. Haec flexibilitas simplificat institutionem, dum signanter minuit indumentum in apparatu connexo (ut motores et gearboxes), eo quod ratio vitae servitutem extendit.

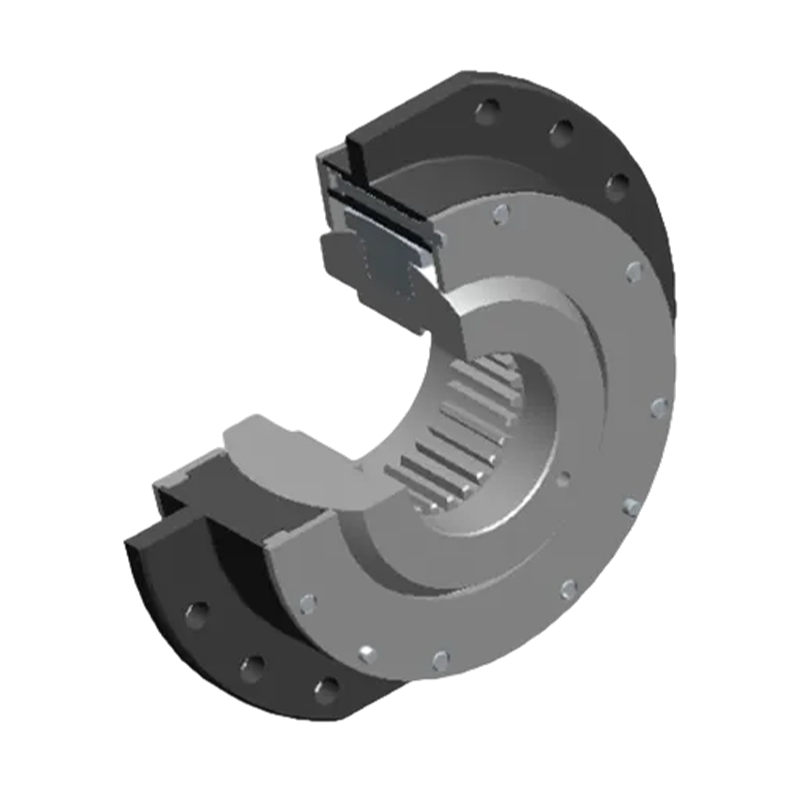

2. Integrated Vibratio Dampening: Dissimiles traditionales commissuras calces rigidas, notas QJC elementum elasticum inter duas cantus coronatos dente posito. Faciens ut "potestas quiddam", hoc consilium efficaciter trahit operationes vibrationes et impulsus transientes, ut lenis ratio perficiendi sub complexu oneris condiciones prospiciat.
3. Military Grade Materialis Excellentiae: Subtilitas ficta ex GENERALI mixturae vel carbonis ferro, coniunctio eximiam ictum offert duritiem, lassitudinem resistentiam, et corrosionem resistentiae. Stabilitatem structuralem conservat etiam in asperis ambitibus, quibus pulvis gravis et extremae temperaturae ambigua sunt, sicut fodienda vel metallurgica.
4. Modular Sustentacionem Efficiency: Propter simplici modulari consilio, series QJC pro celeri discursu et conventu concedit. Hoc signanter conservationem temporis down tempus minuit et laboris operationis diuturnum tempus submittit.
5. High Torque-ut-Pondus Ratio: Copulatio immensam torquem portandi facultatem intra structuras compactas tradit, eamque optimam eligit ad graves machinas, ubi spatium limitatum est, sed potestas postulata alta sunt.
- Morbi condimentum
- Nuntius mitte
ARTI PARAMETERS

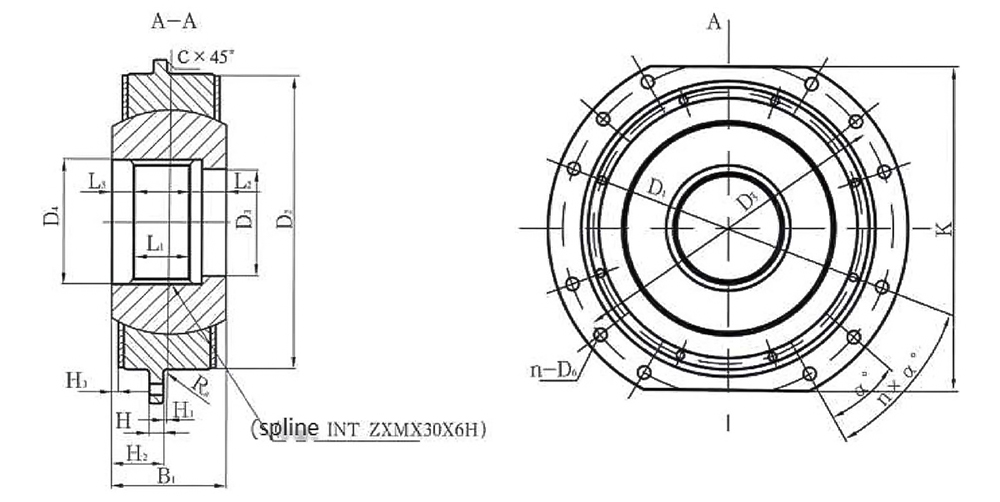

Parametri fundamentales et dimensiones principales QJC tympani coitus
| Type | Nominal torque KN·m | Transfer Aureus KN.m | Spline | K | B₁ | D₁ | D₂ | D₃ | D₄ | D₅ | H | H₁ | H₂ | H₃ | L₁ | L₂ | L₃ | n-D₆ | Bolt | n×α° | Ra | c | Momentum of* inertia ego/kg·m² | Mass m/kg | |||||
| Classis proletariis | |||||||||||||||||||||||||||||
| M3 | M4 | M5 | M6 | M7 | M8 | ||||||||||||||||||||||||
| QJC01 | 6.3 | 6.3 | 5.6 | 5 | 4.5 | 4 | 3.55 | 15Zx3m | 250 | 80 | 300 | 190 | 40 | 50 | 260 | 12 | 3 | 37 | 4 | 30 | 18 | 22 | 8-14 | M12 | 1×40 | 1.6 | 1.6 | 0.13 | 18.9 |
| QJC02 | 9 | 9 | 8 | 7.1 | 6.3 | 5.6 | 5 | 18Zx5m | 280 | 84 | 320 | 200 | 50 | 60 | 280 | 15 | 3 | 39 | 5 | 30 | 22 | 22 | 8-18 | M16 | 1×40 | 1.6 | 2 | 0.19 | 22.6 |
| QJC03 | 12.5 | 12.5 | 11.2 | 10 | 9 | 8 | 7.1 | 22Zx3m | 300 | 92 | 340 | 220 | 60 | 70 | 300 | 15 | 3 | 43 | 5 | 35 | 25 | 22 | 8-18 | M16 | 1×40 | 2 | 2 | 0.27 | 28 |
| QJC04 | 16 | 16 | 14 | 12.5 | 11.2 | 10 | 9 | 27Zx3m | 320 | 97 | 360 | 240 | 70 | 85 | 320 | 15 | 4 | 44.5 | 5.5 | 40 | 25 | 22 | 8-18 | M16 | 1×40 | 2 | 2.5 | 0.37 | 32.8 |
| QJC05 | 20 | 20 | 18 | 16 | 14 | 12.05 | 11.2 | 18Zx5m | 340 | 127 | 380 | 260 | 80 | 100 | 340 | 15 | 4 | 59.5 | 10.5 | 50 | 25 | 37 | 8-18 | M16 | 1×40 | 2 | 2.5 | 0.56 | 47 |
| QJC06 | 25 | 25 | 22.4 | 20 | 18 | 16 | 14 | 22Zx5m | 360 | 137 | 400 | 280 | 100 | 120 | 360 | 15 | 5 | 63.5 | 10.5 | 55 | 30 | 37 | 8-18 | M16 | 1×40 | 2 | 2.5 | 0.76 | 57 |
| QJC07 | 40 | 40 | 35.5 | 31.5 | 28 | 25 | 22.4 | 28Zx5m | 400 | 157 | 450 | 340 | 120 | 140 | 400 | 15 | 5 | 73.5 | 12.5 | 70 | 35 | 37 | 2-22 | M20 | 2×20 | 2.5 | 3 | 1.65 | 90 |
| QJC08 | 63 | 63 | 56 | 50 | 45 | 40 | 35.5 | 30Zx5m | 450 | 167 | 500 | 380 | 140 | 160 | 450 | 20 | 6 | 77.5 | 13.5 | 75 | 40 | 37 | 2-22 | M20 | 2×20 | 2.5 | 3 | 2.86 | 122 |
| QJC09 | 80 | 80 | 71 | 63 | 56 | 50 | 45 | 34Zx5m | 500 | 182 | 550 | 420 | 160 | 180 | 500 | 20 | 6 | 85 | 16 | 85 | 45 | 37 | 2-22 | M20 | 2×20 | 2.5 | 3 | 4.49 | 157 |
| QJC10 | 125 | 125 | 112 | 100 | 90 | 80 | 71 | 38Zx5m | 530 | 192 | 580 | 450 | 180 | 200 | 530 | 20 | 6 | 90 | 14 | 95 | 45 | 37 | 2-22 | M20 | 2×20 | 2.5 | 4 | 6.18 | 190 |
| QJC11 | 200 | 200 | 180 | 160 | 140 | 125 | 112 | 26Zx8m | 580 | 207 | 650 | 530 | 190 | 222 | 600 | 25 | 7 | 96.5 | 15.5 | 10 | 45 | 37 | 2-22 | M20 | 2×20 | 2.5 | 4 | 12.5 | 290 |
| QJC12 | 315 | 315 | 280 | 250 | 224 | 200 | 190 | 30Zx8m | 600 | 222 | 680 | 560 | 220 | 254 | 630 | 25 | 7 | 104 | 16 | 12 | 45 | 37 | 24-22 | M20 | 5×10 | 2.5 | 5 | 16.4 | 335 |
| QJC13 | 400 | 400 | 355 | 315 | 280 | 250 | 222 | 34Zx8m | 640 | 237 | 710 | 600 | 250 | 286 | 660 | 35 | 8 | 110.5 | 17.5 | 13 | 45 | 37 | 24-26 | M24 | 5×10 | 3 | 6 | 23.13 | 393 |
| QJC14 | 500 | 500 | 450 | 400 | 355 | 315 | 280 | 38Zx8m | 700 | 262 | 780 | 670 | 280 | 318 | 730 | 35 | 8 | 123 | 16 | 15 | 55 | 37 | 24-28 | M24 | 5×10 | 3 | 5 | 39.18 | 551 |
| QJC15 | 630 | 630 | 560 | 500 | 450 | 400 | 355 | 44Zx8m | 760 | 287 | 850 | 730 | 320 | 366 | 800 | 35 | 9 | 134.5 | 17.5 | 17 | 60 | 37 | 24-55 | M24 | 5×10 | 3 | 6 | 59.25 | 693 |
| QJC16 | 800 | 800 | 710 | 630 | 560 | 500 | 450 | 50Zx8m | 860 | 352 | 950 | 840 | 360 | 420 | 900 | 45 | 10 | 166 | 37 | 22 | 60 | 52 | 24-26 | M24 | 5×10 | 3 | 6 | 114.5 | 1250 |
| QJC17 | 1120 | 1120 | 1000 | 900 | 800 | 710 | 630 | 44Zx10m | 1020 | 410 | 1120 | 975 | 400 | 460 | 1055 | 50 | 15 | 190 | 37 | 26 | 60 | 65 | 24-29 | M27 | 5×10 | 4 | 6 | 260.4 | 1950 |
| QJC18 | 1490 | 1490 | 1380 | 1250 | 1120 | 1000 | 900 | 56Zx10m | 1100 | 430 | 1200 | 1055 | 540 | 580 | 1135 | 60 | 25 | 190 | 37 | 27 | 60 | 70 | 24-29 | M27 | 5×10 | 4 | 6 | 337.8 | 2250 |
Nota: Si amplioribus tympani iuncturae specificationibus opus est, etiam designare et fabricare possumus.
