QGC genus involutum spline coitus globosus cylindrus copulatio (Q/YJ16029X-2018)

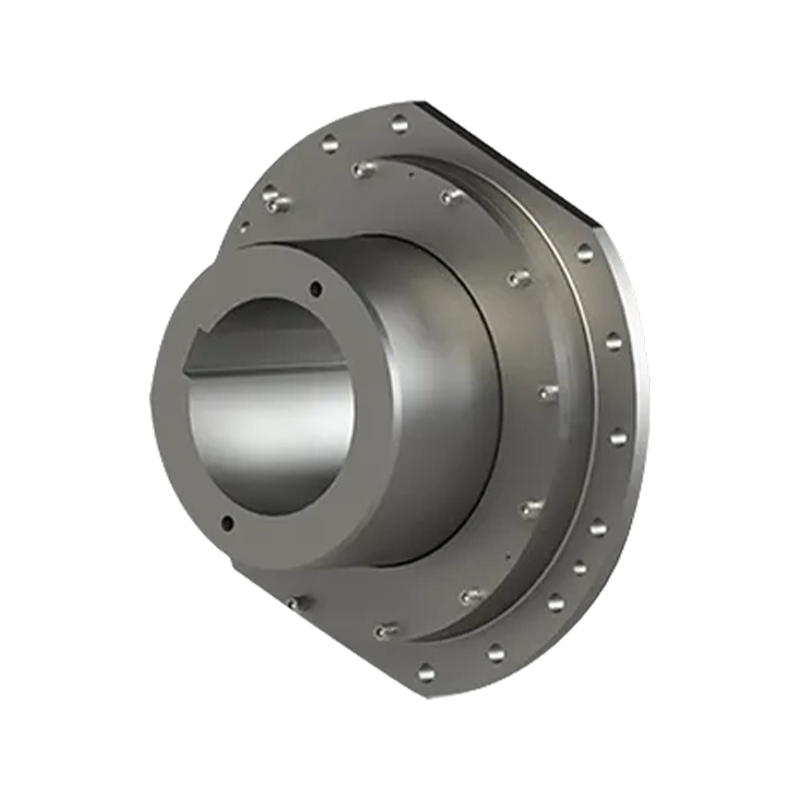

Genus involutum spline globosum cylindro coitu QGC (obsequium Q/YJ16029X-2018 vexillum) globulos globosos cum spline involutis componit et late in grues, metallurgicis, fodiendis, et instrumentis portubus ad tympana connectendis et reducentibus adhibentur. Copulatio haec praestantem facultatem onus-ferentis exhibet, cum torques nominalis amplitudinis 4 kN·m ad 900 kN·m et vim radialem licitam ipsius 16.5 kN ad 520 kN. Comparatur ad commissuras calces traditionales, capacitas oneris ferentium augetur per circiter 30%, facile tractat crebras satus-statio et impulsus conditiones. Propter contactum sphaericum inter scutulis et bores, obsessio angularis habet facultatem recompensationis usque ad 1.5°, efficaciter compensans errores institutionis et deformationem machinarum, tamquam elementum auto-alignum, per quod signanter minuit accessionem flexionis momentum in reducentis output sagittam et extenuando sagittam lassitudinem periculorum. Praeterea productum habet structuram compactam, transmissionem lenis, strepitus humilis, et cum anti-demissione structurae instructus, ratio signandi et indices induendi. Dum saluti gravis officii transmissionis procurans, condicionem vigilantiam et discessionem et conservationem partium valde adiuvat, cum optimam electionem facit gravium instrumentorum ad perficiendam pacti extensionem et operationem efficientem..
- Morbi condimentum
- Nuntius mitte
ARTI PARAMETERS

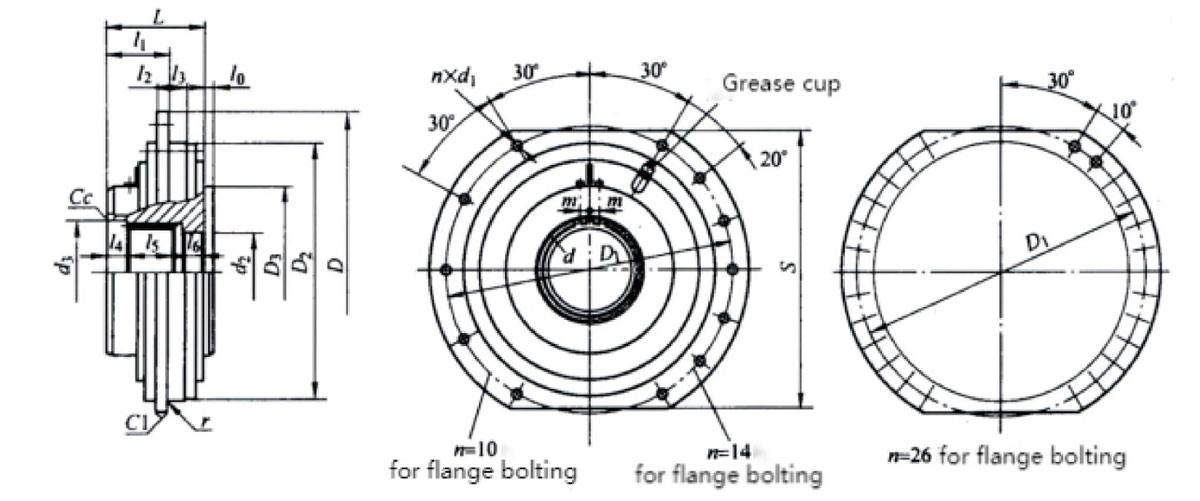

Praecipuae parametri et dimensiones principales QGC involutae sphaericis rotundi copulentur
| Type | Nominal torque Tn/kN·m | licet radial vi/KN | Internum spline | D | D₁ | D₂ | D₃ | n×d₁ | d₂ | d₃ | S | L | l₀ | l₁ | l₂ | l₃ | l₄ | l₅ | l₆ | r | c | gere scalae ml | Momentum of* inertia ego/kg·m² | Mass m/kg |
| QGC1 | 5 | 16.5 | INT16Zx2.5 | 250 | 220 | 160 | — | 10×Φ14 | 35 | 45 | 220 | 80 | 0 | 42 | 12 | 24 | 22 | 30 | 18 | 2 | 1.6 | 4 | 0.06 | 13.2 |
| INT17Zx2.5 | 38 | 48 | 12.2 | |||||||||||||||||||||
| QGC2 | 7.1 | 18.5 | INT17Zx2.5 | 280 | 250 | 180 | — | 10×Φ14 | 38 | 48 | 250 | 80 | 0 | 42 | 12 | 24 | 22 | 30 | 18 | 2 | 1.6 | 4 | 0.12 | 19.8 |
| INT15Zx2m | 40 | 50 | 18.8 | |||||||||||||||||||||
| QGC3 | 9 | 20 | INT16Zx2m | 320 | 280 | 200 | — | 10×Φ18 | 40 | 50 | 280 | 84 | 0 | 48 | 15 | 25 | 22 | 30 | 22 | 2.5 | 1.6 | 4 | 0.2 | 22.1 |
| INT18Z× | 50 | 60 | 2 | 21.8 | ||||||||||||||||||||
| QGC4 | 14 | 25 | INT18Zx2m | 340 | 300 | 220 | — | 10×Φ18 | 50 | 60 | 300 | 92 | 0 | 45 | 15 | 25 | 22 | 30 | 30 | 2.5 | 2 | 4 | 0.27 | 28.9 |
| INT22Zx3m | 60 | 70 | 35 | 25 | 28.8 | |||||||||||||||||||
| QGC5 | 18 | 35 | INT22Zx3m | 360 | 320 | 240 | — | 10×Φ18 | 60 | 70 | 320 | 92 | 0 | 45 | 15 | 25 | 22 | 35 | 25 | 2.5 | 2 | 6 | 0.36 | 35 |
| INT17Zx3m | 70 | 85 | 97 | 40 | 2.5 | 34 | ||||||||||||||||||
| QGC6 | 22.4 | 38.5 | INT18Zx5m | 380 | 340 | 260 | — | 10×Φ18 | 80 | 0 | 340 | 97 | 0 | 45 | 15 | 25 | 22 | 40 | 25 | 2.5 | 2.5 | 6 | 0.48 | 40 |
| INT22Zx3m | 80 | 100 | 127 | 37 | 50 | 41 | ||||||||||||||||||
| QGC7 | 28 | 42 | INT18Zx5m | 400 | 360 | 280 | 150 | 10×Φ18 | 80 | 100 | 360 | 127 | 10 | 67 | 15 | 33 | 37 | 50 | 25 | 3 | 2.5 | 6 | 0.6 | 51 |
| INT22Zx5m | 100 | 120 | 137 | 0 | 55 | 30 | 47 | |||||||||||||||||
| QGC8 | 35.5 | 49 | INT22Zx5m | 420 | 380 | 310 | 168 | 10×Φ18 | 100 | 120 | 380 | 137 | 20 | 77 | 15 | 33 | 37 | 55 | 30 | 3 | 2.5 | 6 | 0.86 | 59 |
| INT26Zx5m | 120 | 140 | 157 | 0 | 70 | 35 | 3 | 57 | ||||||||||||||||
| QGC9 | 50 | 70 | INT26Zx5m | 450 | 400 | 340 | 215 | 10×Φ22 | 120 | 140 | 400 | 157 | 0 | 87 | 20 | 28 | 37 | 70 | 35 | 3 | 3 | 6 | 1.32 | 78 |
| INT30Zx5m | 140 | 160 | 167 | 75 | 40 | 75 | ||||||||||||||||||
| QGC10 | 100 | 120 | INT34Zx5m | 550 | 500 | 420 | 260 | 10×Φ22 | 140 | 160 | 500 | 167 | 20 | 95 | 20 | 38 | 37 | 75 | 40 | 3 | 3 | 8 | 3.44 | 129 |
| INT38Zx5m | 160 | 180 | 182 | 0 | 85 | 45 | 126 | |||||||||||||||||
| QGC11 | 160 | 140 | INT34Zx5m | 580 | 530 | 450 | 285 | 14×Φ22 | 160 | 180 | 530 | 182 | 0 | 95 | 20 | 38 | 37 | 85 | 45 | 3 | 3 | 8 | 4.23 | 151 |
| INT38Zx5m | 180 | 00 | 192 | 95 | 4 | 146 | ||||||||||||||||||
| QGC12 | 224 | 170 | INT26Zx8m | 650 | 600 | 530 | 315 | 14×Φ22 | 180 | 00 | 580 | 192 | 15 | 120 | 25 | 33 | 37 | 95 | 45 | 3 | 4 | 8 | 7.52 | 210 |
| INT26Zx8m | 190 | 222 | 207 | 0 | 105 | 205 | ||||||||||||||||||
| QGC13 | 355 | 300 | INT26Zx8m | 680 | 630 | 560 | 395 | 26×Φ22 | 190 | 222 | 600 | 207 | 0 | 120 | 25 | 35 | 37 | 105 | 45 | 4 | 4 | 8 | 9.81 | 236 |
| INT30Zx8m | 220 | 254 | 222 | 120 | 5 | 229 | ||||||||||||||||||
| QGC14 | 500 | 340 | INT30Zx8m | 710 | 660 | 600 | 395 | 26×Φ26 | 220 | 254 | 640 | 222 | 15 | 140 | 35 | 43 | 37 | 120 | 45 | 4 | 5 | 8 | 14.76 | 301 |
| INT34Zx8m | 260 | 206 | 237 | 0 | 135 | 208 | ||||||||||||||||||
| QGC15 | 630 | 380 | INT34Zx8m | 780 | 730 | 670 | 445 | 26×Φ26 | 260 | 286 | 700 | 237 | 25 | 160 | 35 | 43 | 37 | 135 | 45 | 4 | 5 | 8 | 24.14 | 308 |
| INT38Zx8m | 280 | 318 | 262 | 0 | 150 | 55 | 395 | |||||||||||||||||
| QGC16 | 710 | 450 | INT38Zx8m | 850 | 800 | 730 | 445 | 26×Φ26 | 280 | 318 | 760 | 262 | 25 | 180 | 35 | 43 | 37 | 150 | 55 | 4 | 5 | 8 | 34.4 | 483 |
| INT44Zx8m | 320 | 986 | 287 | 0 | 170 | 60 | 6 | 451 | ||||||||||||||||
| QGC17 | 900 | 520 | INT44Zx8m | 950 | 900 | 840 | 585 | 26×Φ26 | 320 | 366 | 860 | 287 | 25 | 200 | 45 | 55 | 37 | 170 | 60 | 4 | 6 | 8 | 74.63 | 797 |
| INT50Zx8m | 360 | 420 | 352 | 0 | 52 | 220 | 8 | 793 |
Nota: Momentum ofinertiae et massae approximationes calculi cum diametris foraminis minoribus.
