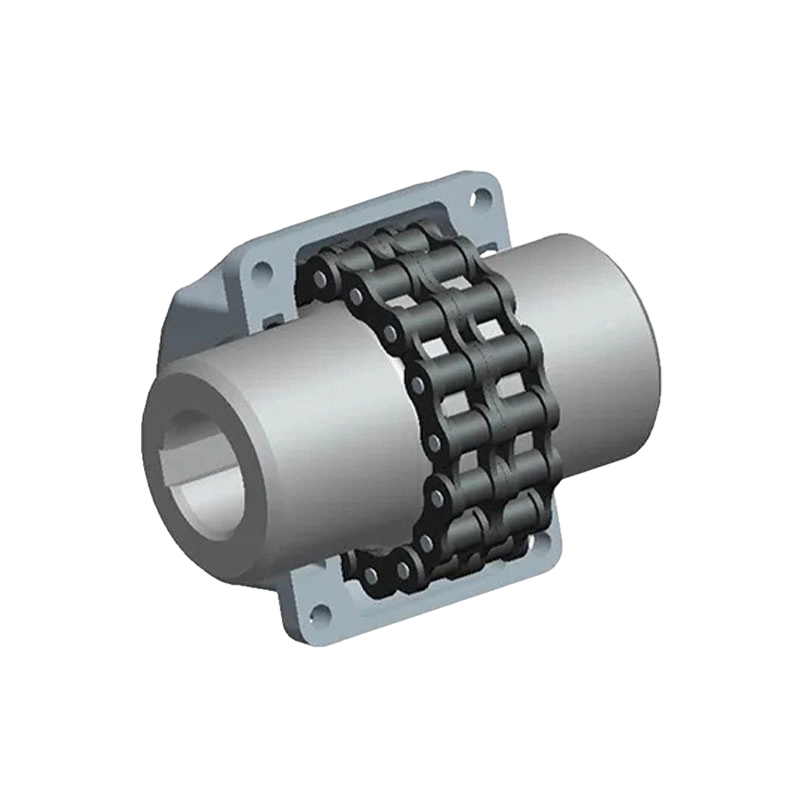

LC cylindrus catenae copuletur (Q/YL 17031X-2018)
Genus cylindro LC catena copulatio iuncturam structuram duplicem ordinis catenam et sphocks parallelam induit, ex- cellentiam multi- directionalem obsessio praestans obtinens, cum emendatione axiali usque ad 9.5mm, et obsessio radialis emendae usque ad 1.27mm. Haec series torquem nominalem habet 40 ad 25,000 N·m, et maximam celeritatem 4500 r/min cum operculo tutelae, stabilis et efficientis potentiae tradendae sub onere gravi et celeritate condiciones praestandi.
Genus cylindrus LC catena iuncturam turpis structuram habet, permittens catenae institutionem et remotionem sine duobus spiculis moto, rationum sustentationem valde simpliciorem. Maxime convenit ad duras ambitus industriales, sicut sunt humidae, pulverulentae, et condiciones calidissimae. Quamvis valida eius aptabilitas environmental, usus vitandus est sub condicionibus crebris initiorum insistendi, conversionis, vel gravium ictum onera ut diuturnum tempus firmetur ratio tradendi.
- Morbi condimentum
- Nuntius mitte
ARTI PARAMETERS

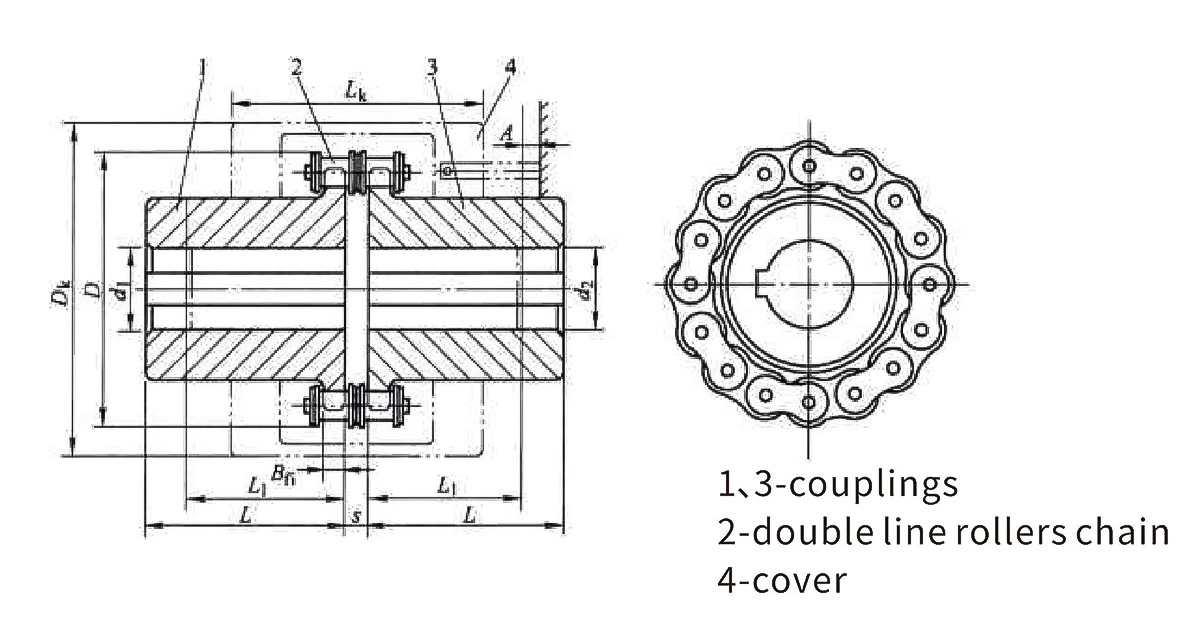

Praecipuae parametri et dimensiones principales LC cylindri catenae copuletur (GB/T6069-2002)
| Type | Nominal torque N.m | Celeritas licita [n]/r.min⁻¹ | Scapus diametri d₁, d₂ | Hastile longitudinis | Catena numerus | catena picis | Apparatus numerus | D | b n | S | D k max | L k max | Massa m/kg | Momentum inertiae l/kg·m² | Liceat ultricies moles | ||||
| Non operimentum | Cum operculum | Y | J₁ | Radialis | Axial | Angularis a/(°) | |||||||||||||
| LC1 | 40 | 1400 | 4500 | 16.18.19. | 42 | 06B | 9.525 | 14 | 51.06 | 5.3 | 4.9 | 70 | 70 | 0.4 | 0.0001 | 0.19 | 1.414 | 1 | |
| 20 | 52 | 38 | |||||||||||||||||
| LC2 | 63 | 1250 | 4500 | 19 | 42 | 06B | 9.525 | 16 | 57.08 | 5.3 | 4.9 | 75 | 75 | 0.7 | 0.0002 | 0.19 | 1.414 | 1 | |
| 20.22.24 | 52 | 38 | |||||||||||||||||
| LC3 | 100 | 1000 | 4000 | 20.22.24 | 52 | 38 | 08B | 12.7 | 14 | 68.88 | 7.2 | 6.7 | 85 | 80 | 1.1 | 0.00038 | 0.25 | 1.9 | 1 |
| 25 | 62 | 44 | |||||||||||||||||
| LC4 | 160 | 1000 | 4000 | 24 | 52 | 08B | 12.7 | 16 | 76.91 | 7.2 | 6.7 | 95 | 88 | 1.8 | 0.00086 | 0.25 | 1.9 | 1 | |
| 25.28. | 62 | 44 | |||||||||||||||||
| 30.32. | 82 | 60 | |||||||||||||||||
| LC5 | 250 | 800 | 3150 | 28 | 62 | 10A | 15.875 | 16 | 94.46 | 8.9 | 9.2 | 112 | 100 | 3.2 | 0.0025 | 0.32 | 2.3 | 1 | |
| 30.32.35.38 | 82 | 64 | |||||||||||||||||
| 40 | 112 | 84 | |||||||||||||||||
| LC6 | 400 | 630 | 2500 | 32.35.38 | 82 | 60 | 10A | 15.875 | 20 | 116.57 | 8.9 | 9.2 | 140 | 105 | 5 | 0.0058 | 0.32 | 2.3 | 1 |
| 40.42.45.48.50 | 112 | 84 | |||||||||||||||||
| LC7 | 630 | 630 | 40.42.45.48.50.55 | 112 | 84 | 12A | 19.05 | 18 | 127.78 | 11.9 | 10.9 | 150 | 122 | 7.4 | 0.012 | 0.38 | 2.8 | 1 | |
| 60 | 142 | 107 | |||||||||||||||||
| LC8 | 1000 | 500 | 2240 | 45.48.50.55 | 112 | 84 | 16A | 25.4 | 16 | 154.33 | 15 | 14.3 | 180 | 135 | 11.1 | 0.025 | 0.5 | 3.8 | 1 |
| 60.65.70 | 142 | 107 | |||||||||||||||||
| LC9 | 1600 | 400 | 2000 | 50.55. | 112 | 84 | 16A | 25.4 | 20 | 186.5 | 15 | 14.3 | 215 | 145 | 20 | 0.0061 | 3.8 | 1 | |
| 60.65.70.75 | 142 | 107 | |||||||||||||||||
| 80 | 172 | 132 | |||||||||||||||||
| LC10 | 2500 | 315 | 1600 | 60.65.70.75 | 142 | 107 | 20A | 31.75 | 18 | 213.02 | 18 | 17.8 | 245 | 165 | 26.1 | 0.079 | 0.63 | 4.7 | 1 |
| 80.85.90 | 172 | 132 | |||||||||||||||||
| LC11 | 4000 | 250 | 1500 | 75 | 142 | 167 | 24A | 38.1 | 16 | 213.49 | 24 | 21.5 | 270 | 195 | 39.2 | 0.188 | 0.76 | 5.7 | 1 |
| 80.85.90.95 | 172 | 132 | |||||||||||||||||
| 100 | 212 | 167 | |||||||||||||||||
| LC12 | 6300 | 1250 | 85.90.95 | 172 | 167 | 28A | 44.45 | 16 | 270.08 | 24 | 24.9 | 310 | 205 | 59.4 | 0.38 | 0.88 | 6.6 | 1 | |
| 100.110.120 | 212 | 202 | |||||||||||||||||
| LC13 | 10000 | 200 | 1120 | 100.110.120.125 | 212 | 167 | 32A | 50.8 | 18 | 340.8 | 30 | 28.6 | 380 | 230 | 86.5 | 0.869 | 1 | 7.6 | 1 |
| 130.140. | 252 | 202 | |||||||||||||||||
| LC14 | 16000 | 200 | 1000 | 120.125. | 212 | 167 | 32A | 50.8 | 22 | 405.22 | 30 | 28.6 | 450 | 250 | 150.8 | 2.06 | 1 | 7.6 | 1 |
| 130.140.150 | 252 | 202 | |||||||||||||||||
| 160 | 302 | 242 | |||||||||||||||||
| LC15 | 25000 | 200 | 900 | 140.150. | 252 | 202 | 40A | 63.5 | 20 | 466.25 | 36 | 35.6 | 510 | 285 | 234.4 | 4.37 | 1.27 | 9.5 | 1 |
| 160.170.180 | 302 | 242 | |||||||||||||||||
| 190 | 352 | 282 | |||||||||||||||||
Nota:
1. Cum operculum est, adde "F" post exemplar, 1 casus GL5 copulationis, et muta ad GL5F cum operculum est.
2. Copulatio massae et momentum inertiae in mensa valores approximati sunt.
