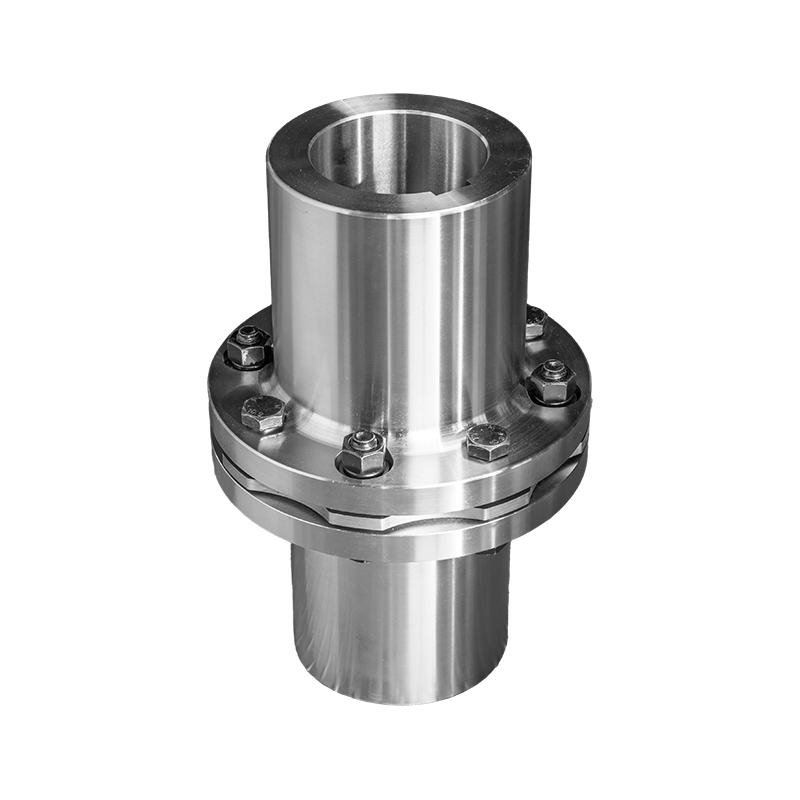

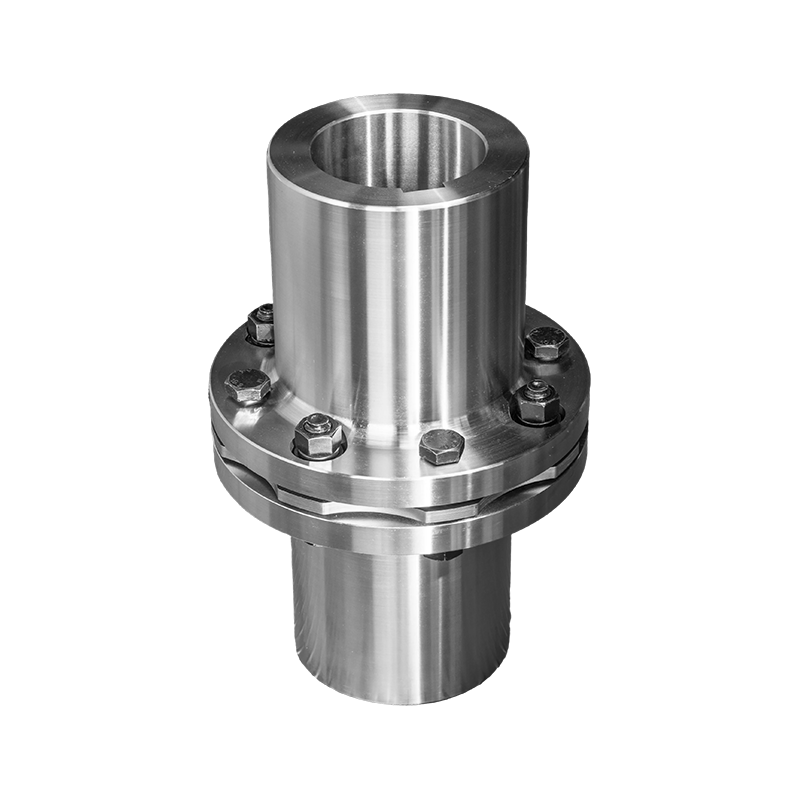

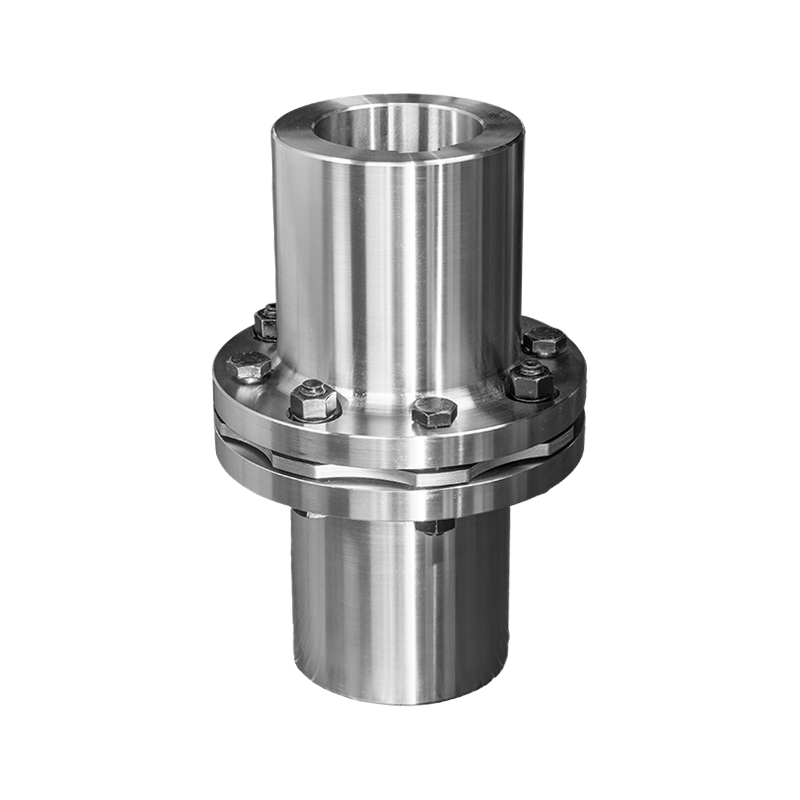

DMB genus clavem nexus unius generis diaphragmatis elasticae copulationis (Q/YP 22004X-2018)

Name: DMB genus clavem nexus unius generis diaphragmatis elasticae copulationis (Q/YP 22004X-2018)
Rating: 5 (99 reviews)

DMB genus clavem nexus unius generis diaphragmatis elasticae copulationis (Q/YP 22004X-2018) est provectus tradenda fabrica quod integrat alta praecisione et spissitudo. Duas rotas axibus solide coniungit cum diaphragmate uno globo metallico per certae connexionis structuram, quae ad efficiendum torquem transmissionem efficiat, dum accurate compensat deviationes misalignment comprehensivae in directiones axiales, radiales et angulares. Comparatus cum Angue Spring Copultionis, quod grave onus buffering intendit, hoc productum consequitur longissimam vitam servitutis in ambitu sine lubricatione, propter omnem eius materiam ferro immaculatam aut mixturam ferri metalli. Egregiam torsionalem etiam rigiditatem et corrosionem resistentiae demonstrat. Summa eius torques nominalis ferri usque ad 8100 kN·m potest, quae perfecte adaptare potest condicionibus multiplicibus operandi cum strictis requisitis ad accurationem perficiendam ab aerospace, potentia industria petrochemicis.

Eius compactum et leve consilium structurae inertiam gyrativum significanter minuit, et impulsus vibrationesque in operatione efficaciter haurit, adhibendis proprietatibus diaphragmatis elasticis. Dum lenis et quietis operandi ratio incumbit, valde fatigationem et sustentationem frequentiam instrumentorum clavium potentiarum reducit.

Contactus Us

PDF Download

PREV: S. M. genus vinculum nectit duplex genus diaphragmate elastica copulatio

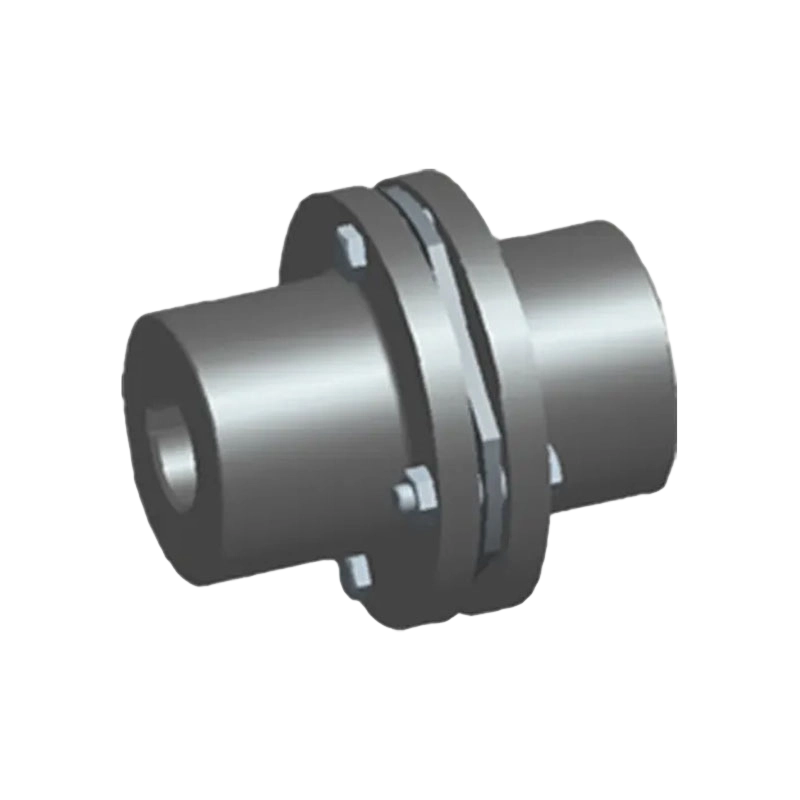

DEINDE: DMA unius generis diaphragmatis elasticis copulatio

Morbi condimentum

Nuntius mitte

ARTI PARAMETERS

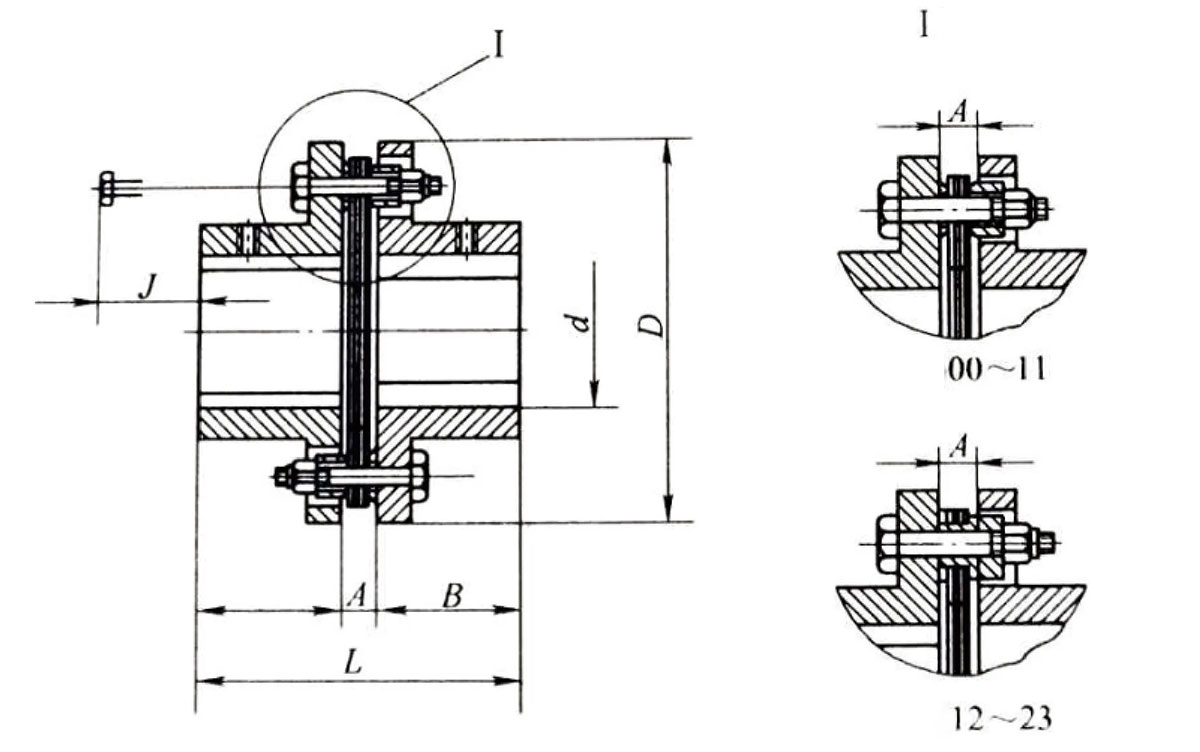

Praecipuae parametri et praecipuae dimensiones unius generis diaphragmatis elasticae copulationis cum DMB clavibus connexionis

Type	Nominal torque/N·m	Celeritas licita [n]/r.min⁻¹	d _Max /mm	D/mm	A/mm	B/mm	L/mm	J/mm	Licitum ultricies		Mass/kg
Type	Nominal torque/N·m	Celeritas licita [n]/r.min⁻¹	d _Max /mm	D/mm	A/mm	B/mm	L/mm	J/mm	Angulus/(°)	Axel/mm	Mass/kg
00	9.8	20000	20	57	4.9	20	44.9	10	±0.8	1°	0.14
01	33	20000	22	68	6.1	26	58.1	13	±0.8	1°	0.6
02	90	20000	32	81	6.6	26	58.6	16	±1.0	1°	1.1
03	173	18000	35	93	8.4	29	66.4	22	±1.2	1°	1.7
04	245	15000	42	104	11.2	34	79.2	20	±1.4	1°	2.5
05	420	13000	50	126	11.7	42	95.7	25	±1.6	45'	4.3
06	772	12000	60	143	11.7	48	107.7	28	±1.8	45'	6.9
07	1270	10000	75	168	16.8	58	132.8	23	±2.0	45'	11.3
08	2080	10000	82	194	17	64	145	30	±2.2	45'	16.7
09	3328	9000	95	214	21.6	77	175.6	22	±2.4	45'	22.7
10	4900	8000	108	246	23.9	89	201.9	23	±2.6	45'	35.4
11	6368	8000	118	276	27.2	102	231.2	40	±2.8	45'	52
12	8900	6300	110	276	17.5	128	273.5	-	±1.8	45'	57.2
13	15280	5000	135	308	19	160	339	-	±2.0	30'	77.3
14	25140	4700	155	346	21.5	182	385.5	-	±2.0	30'	123
15	37130	4300	165	375	24	198	420	-	±2.0	30'	156
16	47120	3900	180	410	29.5	214	457.5	-	±2.2	30'	191
17	57000	3500	190	445	29.5	225	479.5	-	±2.2	30'	245
18	63186	3500	205	470	31	248	527	-	±2.4	30'	329
19	82590	3200	230	512	32	278	588	-	±2.4	30'	394
20	102100	2800	255	556	32.5	305	642.5	-	±2.5	30'	530
21	126070	2450	265	588	34	318	670	-	±2.7	30'	619
22	146350	2150	275	630	34.5	332	698.5	-	±2.8	30'	683
23	173830	2000	290	655	35.5	348	731.5	-	±3.0	30'	791
24	200000	1400	305	680	44	350	744	-	±3.5	30'	980
25	250000	1250	340	745	44	350	744	-	±4.0	30'	1100
26	315000	1200	365	785	50	350	750	-	±4.2	30'	1300
27	400000	1150	380	830	50	380	810	-	±4.5	30'	1500
28	500000	1100	400	875	50	400	850	-	±4.8	20'	1700
29	630000	1000	425	935	60	400	860	-	±5.0	20'	2100
30	800000	930	440	1030	60	440	940	-	±5.2	20'	2600
31	1000000	880	460	1080	66	460	986	-	±5.5	20'	2900
32	1250000	820	500	1160	70	520	1110	-	±5.8	20'	3500
33	1600000	740	560	1290	82	570	1222	-	±6.2	20'	5100
34	2000000	680	600	1410	92	570	1232	-	±6.5	20'	5900
35	2500000	620	650	1530	105	610	1325	-	±6.8	20'	6800
36	3020000	570	710	1670	115	730	1575	-	±7.2	20'	7900
37	4050000	520	780	1830	125	800	1725	-	±7.5	20'	10700
38	5300000	480	860	2000	130	800	1730	-	±7.8	20'	14000
39	6600000	430	945	2200	140	960	2060	-	±8.0	20'	17100
40	8100000	400	1030	2400	140	960	2060	-	±8.2	20'	21100
