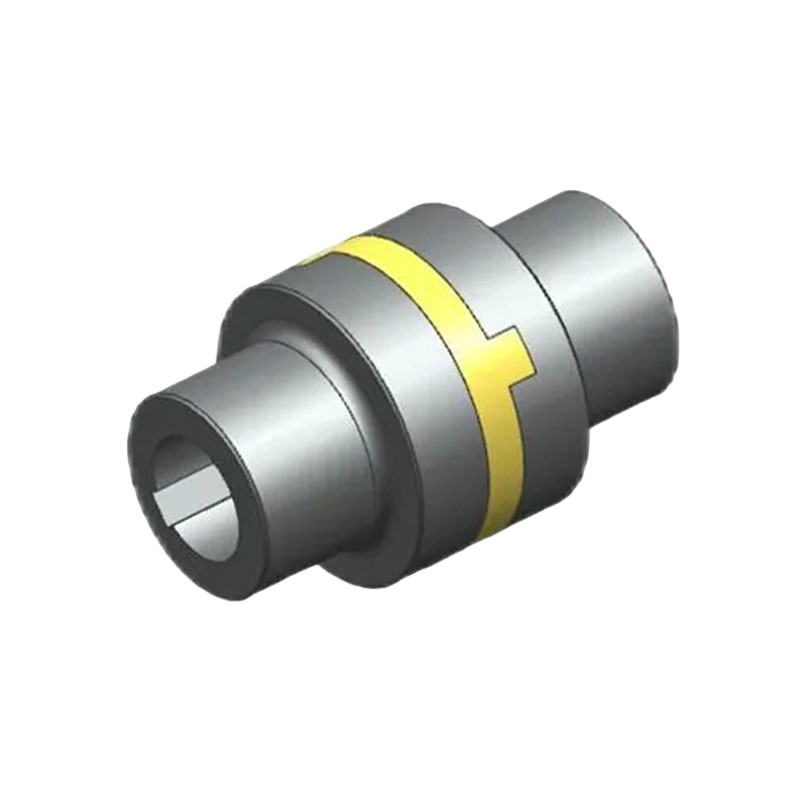

HJ genus crucis lapsus copulationis (Q/YH 18033X-2018)
HJ Type Cross-Slider Couplings (obsequium Q/YH 18033X-2018 vexillum) eminus ab 120 N·m ad 63,000 N·m et late in CNC machinis centris, automationibus roboticis, instrumento medicorum, et aerospace-arva cum strictioribus requisitis ad certa positionis motusque potestate.
Cum suo compacto et levi structurae ac repugnantia optimae corrosioni, haec coniunctio non solum apparatu sustentationis necessitates et spatii requisita efficaciter minuit, sed etiam signanter auget diuturnum tempus praecisionis systematum mechanicorum sub multiplici operandi conditione per simplicem processum institutionem et operationem lenis.
- Morbi condimentum
- Nuntius mitte
ARTI PARAMETERS

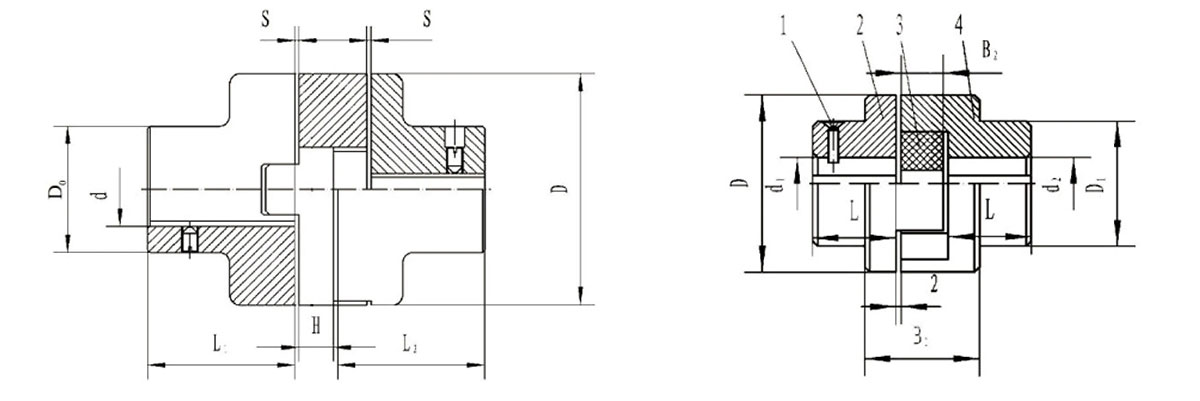

1、 Screw 2、 dimidia iunctura 3、 Slider 4、 Dimidium iunctio
Praecipuae parametri et praecipuae mensurae HJ generis crucis slide copulationis
| Type | Nominal Aureus Tn(N.m) | Celeritas licita [n]r/min | Scapus diametri | D | D₁ | L | H | S | Momentum inertiae (kg·m²) | Mass /kg |
| HJ70 | 120 | 250 | 15-18 | 70 | 32 | 42 | 14 | 0.5 | 0.002 | 1.5 |
| HJ90 | 250 | 250 | 20-30 | 90 | 45 | 52 | 14 | 0.5 | 0.008 | 2.6 |
| HJ100 | 500 | 250 | 36-40 | 100 | 60 | 70 | 19 | 0.5 | 0.026 | 5.5 |
| HJ130 | 800 | 250 | 45-50 | 130 | 80 | 90 | 19 | 0.5 | 0.07 | 10 |
| HJ150 | 1250 | 250 | 55-60 | 150 | 95 | 112 | 19 | 0.5 | 0.14 | 15.5 |
| HJ170 | 2000 | 250 | 65-70 | 170 | 105 | 125 | 24 | 1 | 0.25 | 22.5 |
| HJ190 | 3200 | 250 | 75-80 | 190 | 110 | 140 | 29 | 1 | 0.5 | 31.5 |
| HJ210 | 5000 | 250 | 80-90 | 210 | 130 | 160 | 33 | 1 | 0.9 | 45 |
| HJ240 | 8000 | 250 | 95-100 | 240 | 140 | 180 | 33 | 1 | 1.6 | 59.5 |
| HJ260 | 9000 | 250 | 70-130 | 260 | 160 | 190 | 33 | 1 | 2 | 76 |
| HJ280 | 10000 | 100 | 80-120 | 280 | 170 | 200 | 33 | 1 | 3 | 94.3 |
| HJ300 | 13000 | 100 | 90-150 | 300 | 180 | 210 | 43 | 1 | 4.3 | 131 |
| HJ320 | 16000 | 100 | 130-140 | 320 | 190 | 220 | 43 | 1 | 5.7 | 145 |
| HJ340 | 20000 | 100 | 150 | 340 | 210 | 250 | 48 | 1 | 8.4 | 185 |
| HJ360 | 32500 | 100 | 110-170 | 360 | 240 | 280 | 48 | 1.5 | 19.2 | 223 |
| HJ400 | 38700 | 80 | 120-200 | 400 | 260 | 300 | 48 | 2 | 26.1 | 258 |
| HJ460 | 63000 | 70 | 150-220 | 460 | 300 | 350 | 58 | 2 | 62.9 | 390 |
