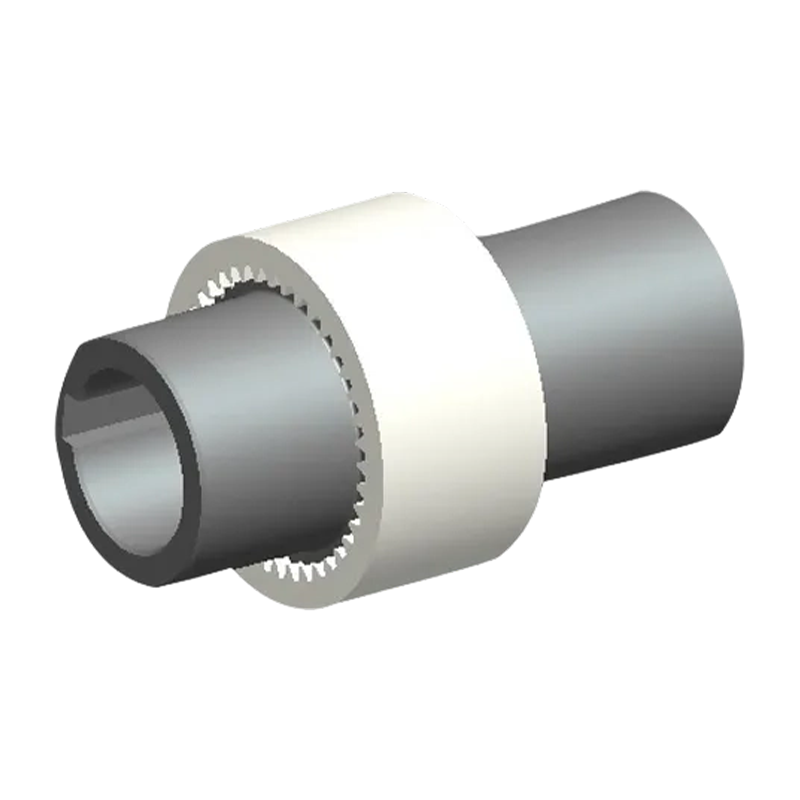

NC Nylon calces interiores anulus tympanum calces iuncturae (Q/YG14021X-2018)

Name: NC Nylon calces interiores anulus tympanum calces iuncturae (Q/YG14021X-2018)
Rating: 5 (99 reviews)

Product Overview:

The NC Nylon Gear Ring Drum Gear Coitus interior (Standard: Q/YG14021X-2018) est solutionis transmissionis incisionis-orbis mechanicae quae robur ferri coniungit cum proprietatibus altum polymerorum perficiendi. Hoc consilium "Hybrid" machinatur ad industrias quaerendas stateram inter capacitatem et sustentationem liberorum operum altam, stantis ut fastigium efficientiae et durabilitatis in campo.

Key commoda ad Industrial emptores (Value propositio):

1. Scientiae materiales provectae (Self-Lubricating): Cor huius copulationis nylon calces interioris anulus est. Nylon celebratur propter suam altissimam fortitudinem, eximiam indumentorum resistentiam, et proprietates auto-lubricationis, quae necessariam augent crebris manualibus ungendas et signanter minuendo impensas perficiendas.

2. Superior Environmental Resilientia: Secus iuncturae metallicae, nylon partes permittunt operationi lenis in ambitibus exedunt et temperaturas condiciones, eximie longitudinis praestantes ubi materiae traditionales deficerent.

3. Subtilitas Misalignment Compensatio: Lorem unicum tympanum informe dentis internum consilium, NC series inconsutilem dimicationem efficit. Efficaciter compensat infortunia angulares, parallelos et axiales, accentus in gestus et motores connexos reducendo.

4. Integrata Vibratio Dampening: Unique haec copulatio elementum elasticum inter anni interiores et exteriores incorporat. Hoc agit ut acervus absorber ut vibrationes madefaciant in operatione, protegens tuam praecisionem machinam ab ictu repentino onerum.

5. Plug-and-Play Sustentacionem: Propter modularem constructionem et usor-amicam designationem, series NC facile disiungi potest ad inspiciendam vel subrogandam, pretiosi temporis extenuando in linea productionis.

Contactus Us

PDF Download

PREV: QJC genus tympani coitus (Q/YJ16027X-2018)
DEINDE: GSC Per genus tympanum calces copulationis (Q/YG14019X-2018)

Morbi condimentum

Nuntius mitte

ARTI PARAMETERS

Praecipuae parametri et dimensiones principales NC typus nylon calces anuli interioris coniunctio

Type	Nominal torque Tn/KN·m	licita celeritas [n]/r.min⁻¹	Praecipuae Dimensiones (mm)							Max TOLERATIO			Momentum inertia /k·m²	Pondus (kg)
			hastile foraminis diametri d₁, d₂	hastile foraminis Longitudo L₁, L₂	L	D	D₁ D₂	E	L₄	Axial (mm)	Radialis (mm)	Angulus α°
NC1	40	6000	6,8,10	16,20,25,32	37,45,55,69	40	26	4	34	2	±0.3	1°	0.25	0.85
			12,14
NC2	100	6000	10,12,14,22	25,32,42,52	57,71,91,111	42	36	4	40	2	±0.4	1°	0.92	1.7
			16,18,20,24
NC3	160	6000	20,22,24	52,62	113 133	66	44	4	46	2	±0.4	1°	3.1	2.6
			25,28
NC4	250	6000	28, 30, 32	62,82	129 169	83	58	4	48	2	±0.4	1°	8.69	3.6
			35,38
NC5	315	5000	32,35,38	82,112	169 229	93	65	4	50	3	±0.4	2°	14.28	5.5
			40,42
NC6	400	5000	40,42,45	82,112	230	100	68	4	52	3	±0.4	2°	18.84	6.8
			48
NC7	630	3600	45,48,50	82,112	229	115	80	4	60	3	±0.6	2°	56.5	9.8
			55
NC8	1250	3600	48,50,55	112,142	229 289	140	96	4	72	3	±0.6	2°	98.55	26.5
			60,63,65
NC9	2000	2000	60,63,65	142,172	295 351	175	124	6	93	4	±0.7	2°	370.5	37.6
			70,71,75,80
NC10	3150	1800	70,71,75,80	142,172,212	292,352,432	220	157	8	110	4	±0.7	2°	1156.8	55

Nota:

Genus structurae simile est cum calces TGC-A typum tympanum.
