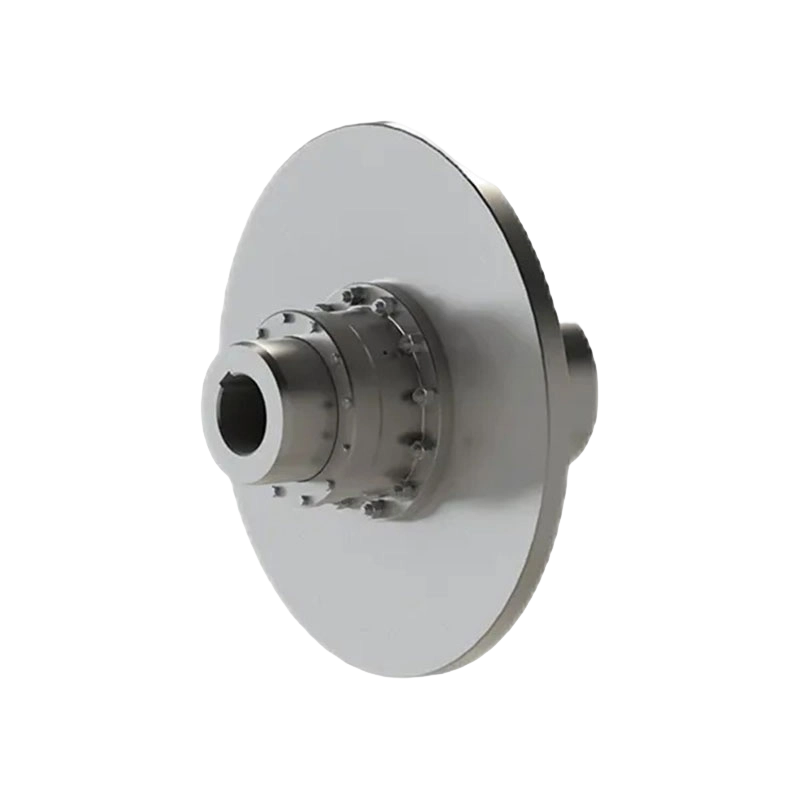

GAPK typus cum disco tympani calces copuletur (Q/YG 12009X-2018)

Name: GAPK typus cum disco tympani calces copuletur (Q/YG 12009X-2018)
Rating: 5 (99 reviews)

Product Overview: GAPK genus tympani calces cum disco fracto (vexillum: Q/YG 12009X-2018) est transmissio fabrica usui discorum cum scopulis designata. Productum hoc sustinet gyrationis bidirectionalem, occurrens potentiam transmissionis et fractis requisitis sub condiciones operantes implicatas.

Features structurae:

1. Duplex tympanum calces structuram: Praeclaram obsessionem recompensationis possidet facultatem, efficaciter compensat magnas misalignment axiales.

2. Disclusio discorum Optimized fregit: Discus fractus in extremo iuncturae impulsus annectitur, cum dimidia copulatione plene ferens pondus, onus fractis laborat, et vibratio discus fractis. Hoc consilium significanter melius meshing perficiendi tympani anni in braking auget stabilitatem systematis transmissionis.

3. Insert-montis consilium: Discus fregit structuram insertam capit, permittens utentes cito reponere discum fractum sine instrumento transmissionis disgregato, multum temporis sustentationis minuendo.

4. Compacta structurae et caloris dissipationis: Consilium structurale altiore scientifice compactum est, ut condiciones discri fractorum et caloris dissipationis optimas praebeat, certas operationes sub diuturna intensitate operationis procurans.

Core Commoda:

1. Alta Salus: Maximus torques vinculorum fractis suis structuralibus viribus non finitur, tuta ac certa effectus praestans.

2. Valida onera Capacitas: Maxime idonea ad gravia officiorum applicationes crebras mutationes in onere, velocitate et directione.

3. Configurationes versatiles: Variis compositionibus scapi foraminis (exempli gratia, Y-Y, J1-J1, Z-Z, Z1-Z1, etc.) accommodare ad varias interfaciei industriae requisita.

Specificationes technicae:

1. Nominal Torque (T * _n ): 630 N.m ad 112,000 N.m.

2. Celeritas licita (n): 1200 r/min ad 4000 r/min (prout exemplar specificum).

3. Maximum Braking Torque (T _m ) : ne excederet bis torquem nominalem (i.e., T _m ≤ 2T _n ).

4. Amplitudo: Magnitudines varias ab GAPK1 ad GAPK14 operit, aptae ad amplis diametrorum foraminis scapi.

Application Area: Haec producta series late in gravibus machinarum industriis adhibetur, cum altissimis requisitis ad transmissionis subtilitatem et braking firmitatem, inter quas: Metallurgical et Mining Equipment; Eleuatio et Machinaria Portus; Aqua Conservantia et Papermaking Equipment.

Contactus Us

PDF Download

PREV: GC Drum calces iuncturae (Q/YG 13010X-2018)
DEINDE: GAP Drum calces coitu cum disco fregit (Q/YG 122008X-2018)

Morbi condimentum

Nuntius mitte

ARTI PARAMETERS

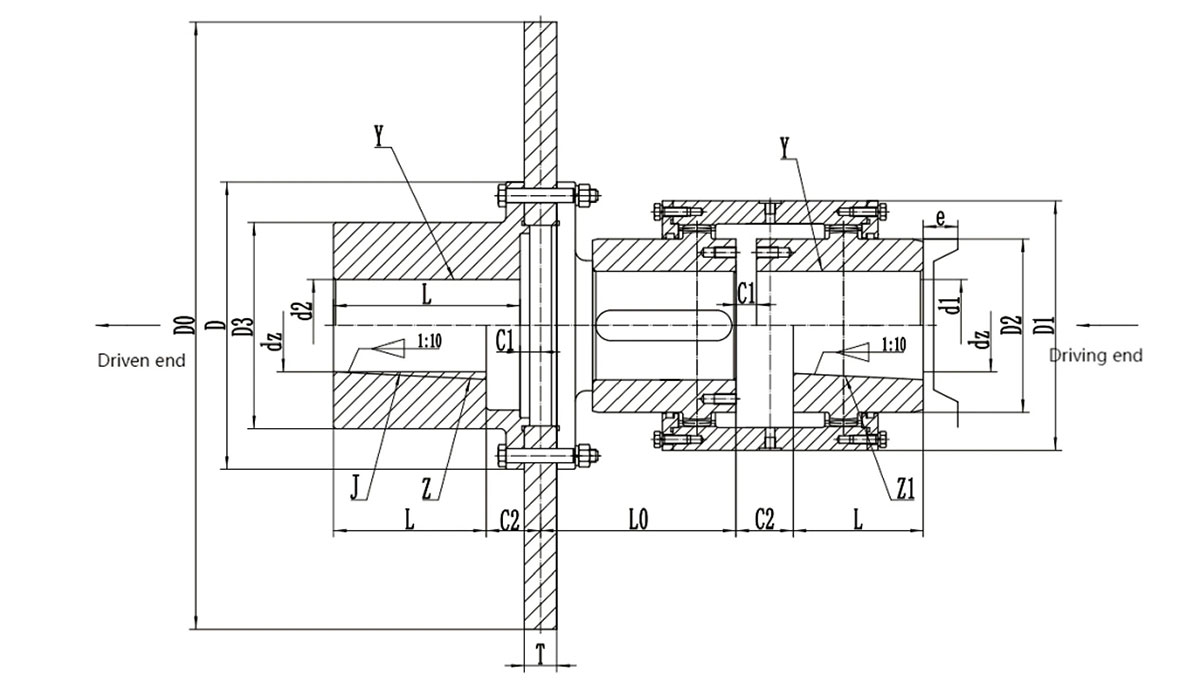

GAPK-type tympanum calces compages compages formarum

Y-Y genus scapi foraminis J1-J1 genus scapi cavum Z-Z genus scapi foraminis Z1-Z1 genus scapi foraminis

Praecipuae parametri et principales rationes GAPK generis tympani calces coitus cum disco fregit

Type	Nominal torque Tn/KN.m	Celeritas licita [n]/r.min⁻¹	Scapus diametri d ₁ ,d ₂ ,d _z		hastile foraminis longitudo L		D₀	D	D₁	D₂	D₃	L₀	T	C₁	C₂	e	Moles uncto /mL	Mass /kg	Momentum inertiae /k·m²
			e*	donec	Y	J₁, Z₁
GAPK1	630	4000	20	24	52	38	315	125	100	55	80	90	20	25	39	30	55	18.3	0.16
			25	28	62	44								17.5	34
			30	38	82	60									37
GAPK2	1120	4000	25	28	62	44	315	144	120	65	95	105	20	25.5	44	30	100	22.5	0.18
			30	38	82	60								17.5	45
			40	48	112	84									43
GAPK3	2240	3550	30	38	82	60	355	174	140	85	115	130	20	18	40	30	140	36.5	0.31
			40	56	112	84									43
			60	-	142	107									50
GAPK4	3550	2500	32	38	82	60	400	196	162	105	130		30	29	47	30	170	59.9	0.75
			40	56	112	84	450							18	43			68.9	1.21
			60	70	142	107	500								50			79.5	1.77
GAPK5	5000	2500	40	56	112	60	400 450 500	224	190	120	150	150	30	18	43	30	270	67.5	0.84
			60	75	142	84									50			76.5	1.3
			80	85	172	107									58			87.1	1.86
GAPK6	7100	2000	48	56	112	84	450 500 560 630	241	205	135	170	155	30	19	21	30	380	99.1 109.7 121.1 137.3	1.41 1.97 2.87 4.43
			60	75	142	107									50
			80	90	172	132									55

GAPK7	10000	1700	60	75	142	84	450 500 560 630	265	230	150	190	180	30	19	50	30	570	128.3 138.9 150.3 166.5	2.22 3.12 4.68 7.2
			80	95	172	107									58
			100	105	212	132									63

GAPK8	14000	1700	65	75	142	107	500 560 630 710	285	255	165	210	180	30	20	50	30	660	155.4 166.4 183 201.1	2.45 3.35 4.91 7.43
			80	95	172	132									58
			100	115	212	167									63

GAPK9	18000	1600	70	75	142	107	560 630 710 800	314	272	190	225	200	30	20	25	30	700	191.5 207.7 223.1 265.7	3.78 5.34 7.86 12.96
			80	95	172	132									58
			100	120	212	167									64

GAPK10	31500	1600	80	95	172	132	630 710 800	346	300	210	250	230	30	20	58	30	900	268.8	6.29
			100	125	212	167									64			284.2	8.81
			130	140	252	202									69			326.8	13.91
GAPK11	40000	1400	100	125	212	167	710 800 900	385	342	250	285	260	30	21	64	40	1200	361.2	10.52
			130	150	252	202									69			403.8	15.62
			160	170	302	242									79			441.4	22.48
GAPK12	56000	1400	-	120	212	167	710 800 900	442	384	280	325	280	30	21	72	40	2000	462.5	13.54
			130	150	252	202									70			505.5	18.64
			160	180	302	242									83			543.1	25.5
GAPK13	80000	1400	140	150	252	202	800 900	482	430	310	360	320	30	22	72	40	3000	658.2 695.8	23.65 30.51
			160	180	302	242									85
			190	210	352	282									95
GAPK14	112000	1200	160	180	302	242	900 100 0	520	465	350	410	360	30	23	85	40	4500	930.1 950.1	39.3 46.8
			190	220	352	282									95

Nota:

1. Massa et momentum inertiae juncturae sunt valores approximati secundum J ₁ scapi elongationem cuiusque generis.

2. Maximam torquem bravium juncturae Tim non excedat 2 vicibus nominales torques Tn, id est, Tm≤2Tn.

3. e An magnitudo requiratur pro sigillo.

4. Quod coitus scapi foraminis compositum est Z * ₁ /J ₁ ,Y/Y,J ₁ /J ₁ ,Y/J ₁ .
