Contineo tactus

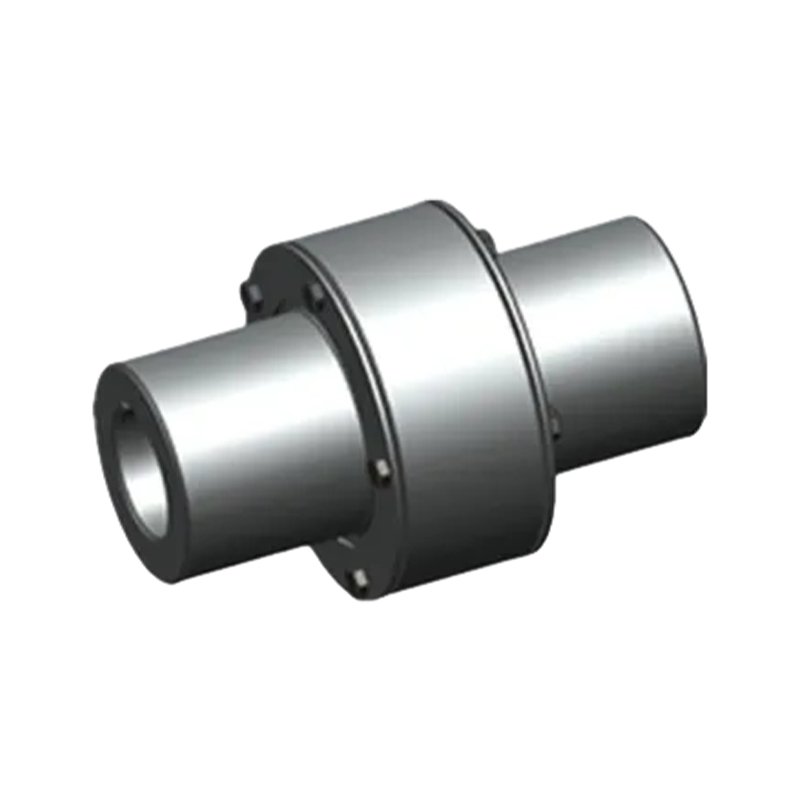

ZC genus elasticum pin calces copulationis (Q/YZ33006X-2018)
ZC Type Elastica Pin Apparatus coitus
ZC genus elasticum clavum calces iuncturae (ZC genus columnae elasticae acum calces copulationis, stricte sequens vexillum Q/YZ33006X-2018) est praecisio transmissionis flexibilis componentis ad gravia officiorum ambitus industriales specialiter destinata. Eius unica structura praecise componit medium elementum sulcus exterioris extremitatis iuncturae et dimidia pars sulcus exterioris operculi ad formandum clavum perforatum, et emblemat summus clavus spicula ad efficiens transmissio lenis et efficax torques, praestans praestantem observantiam in temperatura extensionis -20℃ ad 70 .
Comparatum cum plumis conventionalibus elasticis Copulationis conformatis, hoc productum habet superiorem torsionalem rigorem et facultatem onus-ferendae. Aureus nominalis eius extensio ab 112 N·m usque ad miram 2800000 N·m pertinet, validos impulsus in operatione mechanica absorbens et pro misalignitate inter systemata spicula compensans.
Sicut Plum Figuratum Elasticarum Copularum Manufacturers, consilium componentium non-metallicum elasticum optimized ut ZC series efficiat ut longiorem vitam serviat et efficaciam perficiendi stabiliorem in applicationibus durioribus, sicut metallurgia, fodienda, elevatio, et machinae portus.
Industriae utentes quaerunt altae qualitatem Plum Shaped Copultionis Factory productorum elasticorum inueniet hanc copulationem, quae multiplices specificationes ab ZC1 ad ZC23 comprehendit, signanter instrumenta temporis downtime et systema salutis ad meliorem condicionem ex eius pacto habitationi consilio et lineamentis sustentationis facilem reducere potest.
Eligendo expertos Plum elasticorum Copultionis Suppliers formatum, solutiones transmissionis summus perficientur, quae signa industriae plene obtemperent, obtineri possunt, praebens certas opes ad auxilium scriptionis, aquae curationis, et variae lineae productionis gravi officio automated.
- Morbi condimentum
- Nuntius mitte
ARTI PARAMETERS

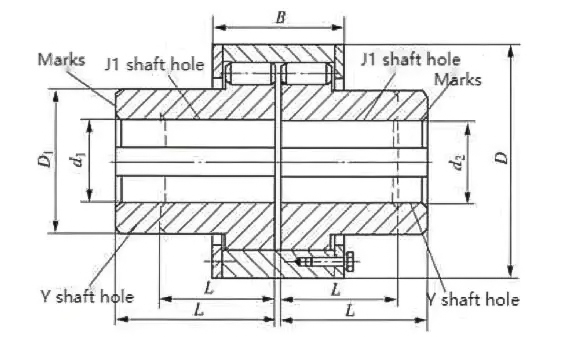

Praecipuae parametri et dimensiones principales ZC generis elastici pin calces copulationis
| Type | Aureus nominalis /N·m | Celeritas licita [n]/r·min⁻¹ | D, d₂, d₂ | Hastile longitudinis | D | D₁ | B | S | Momentum inertiae /kg·m² | Massa m/kg | |
| Y | J₁ | ||||||||||
| ZC1 | 112 | 5000 | 12,14 | 32 | 27 | 76 | 40 | 42 | 2.5 | 0.001 | 1.53 |
| 16,18,19 | 42 | 30 | 1.6 | ||||||||
| 20,22,24 | 52 | 38 | 1.67 | ||||||||
| ZC2 | 250 | 16,18,19 | 42 | 30 | 90 | 50 | 50 | 2.5 | 0.002 | 2.7 | |
| 20,22,24 | 52 | 38 | 2.76 | ||||||||
| 25,28 | 62 | 44 | 0.003 | 2.79 | |||||||
| 30,32 | 82 | 60 | 3 | ||||||||
| ZC3 | 630 | 4500 | 25,28 | 62 | 44 | 118 | 65 | 70 | 3 | 0.011 | 6.49 |
| 30,32,35,38 | 82 | 60 | 7.05 | ||||||||
| 40,42 | 112 | 84 | 0.012 | 7.31 | |||||||
| ZC4 | 1800 | 4200 | 40,42,45,48,50,55,56 | 158 | 90 | 90 | 4 | 0.044 | 16.2 | ||
| 60 | 142 | 107 | 0.45 | 15.25 | |||||||
| ZC5 | 4500 | 4000 | 50,55,56 | 112 | 84 | 192 | 120 | 4 | 0.1 | 24.82 | |
| 60,63,65,70,71,75 | 142 | 107 | 0.107 | 27.02 | |||||||
| 80 | 172 | 132 | 0.108 | 25.44 | |||||||
| ZC6 | 8000 | 3300 | 60,63, 70, 71,75 | 142 | 107 | 230 | 130 | 112 | 5 | 0.238 | 40.89 |
| 80,85,90,95 | 172 | 132 | 0.242 | 40.15 | |||||||
| ZC7 | 11200 | 2900 | 70,71,75 | 142 | 107 | 260 | 160 | 5 | 0.406 | 54.93 | |
| 80,85,90,95 | 172 | 132 | 0.428 | 59.14 | |||||||
| 100,110 | 212 | 167 | 0.443 | 59.6 | |||||||
| ZC8 | 18000 | 2500 | 80,85,90,95 | 172 | 132 | 300 | 190 | 128 | 6 | 0.86 | 89.35 |
| 100,110,120,125 | 212 | 167 | 0.911 | 94.67 | |||||||
| 130 | 252 | 202 | 0.908 | 87.43 | |||||||
| ZC9 | 25000 | 2300 | 90,95 | 172 | 132 | 335 | 220 | 150 | 7 | 1.559 | 113.9 |
| 100,110,120,125 | 212 | 167 | 1.678 | 138.1 | |||||||
| 130,140,150 | 252 | 202 | 1.733 | 136.6 | |||||||
| ZC10 | 31500 | 2100 | 100,110,120,125 | 212 | 167 | 355 | 245 | 152 | 8 | 2.236 | 165.5 |
| 130,140,150 | 252 | 202 | 2.362 | 169.3 | |||||||
| 160,170 | 302 | 242 | 2.422 | 164 | |||||||
| ZC11 | 40000 | 2000 | 110,120,125 | 212 | 167 | 380 | 260 | 172 | 8 | 3.054 | 190.9 |
| 130,140,150 | 252 | 202 | 3.249 | 203.1 | |||||||
| 160,170,180 | 302 | 242 | 3.369 | 202.1 | |||||||
| ZC12 | 63000 | 1700 | 130,140,150 | 252 | 202 | 445 | 290 | 182 | 8 | 6.146 | 288.5 |
| 160,170,180 | 302 | 242 | 6.432 | 296.6 | |||||||
| 190,200 | 352 | 282 | 6.524 | 288 | |||||||
| ZC13 | 100000 | 1500 | 150 | 252 | 202 | 515 | 345 | 218 | 8 | 12.76 | 413.6 |
| 160,170,180 | 302 | 242 | 13.62 | 469.2 | |||||||
| 190,200,220 | 352 | 282 | 14.19 | 480 | |||||||
| 240 | 410 | 330 | 13.98 | 436.1 | |||||||
| ZC14 | 125000 | 1400 | 170,180 | 302 | 242 | 560 | 390 | 218 | 8 | 19.9 | 581.5 |
| 190,200,220 | 352 | 282 | 21.17 | 621.7 | |||||||
| 240,250,260 | 410 | 330 | 21.67 | 599.4 | |||||||
| ZC15 | 160000 | 1300 | 190,200,220 | 352 | 282 | 590 | 420 | 240 | 10 | 28.08 | 736.9 |
| 240,250,260 | 410 | 330 | 29.18 | 730.5 | |||||||
| 280,300 | 470 | 380 | 29.52 | 702.1 | |||||||
| ZC16 | 250000 | 1000 | 220 | 352 | 282 | 695 | 490 | 265 | 10 | 56.21 | 1045 |
| 240,250,260 | 410 | 330 | 60.05 | 1129 | |||||||
| 280,300,320 | 470 | 380 | 60.56 | 1144 | |||||||
| 340 | 550 | 450 | 62.47 | 1064 | |||||||
| ZC17 | 315000 | 950 | 240,250,260 | 410 | 330 | 770 | 550 | 285 | 10 | 105.5 | 1500 |
| 280,300,320 | 470 | 380 | 102.3 | 1557 | |||||||
| 340,360,380 | 550 | 450 | 106 | 1535 | |||||||
| ZC18 | 450000 | 850 | 250,260 | 410 | 330 | 860 | 605 | 300 | 13 | 152.3 | 1902 |
| 280,300,320 | 470 | 380 | 161.5 | 2025 | |||||||
| 340,360,380 | 550 | 450 | 169.9 | 2062 | |||||||
| 400,420 | 650 | 540 | 175.4 | 2029 | |||||||
| ZC19 | 630000 | 750 | 280,300,320 | 470 | 380 | 970 | 695 | 322 | 14 | 283.7 | 2818 |
| 340,360,380 | 550 | 450 | 303.4 | 2963 | |||||||
| 400,420,440,450 | 650 | 540 | 323.2 | 3068 | |||||||
| ZC20 | 1120000 | 650 | 320 | 470 | 380 | 1160 | 800 | 355 | 15 | 581.2 | 4010 |
| 340,360,380 | 550 | 450 | 624.5 | 4426 | |||||||
| 400,420,440,450,460,000,000 | 650 | 540 | 669.4 | 4715 | |||||||
| ZC21 | 1800000 | 530 | 380 | 550 | 450 | 1440 | 1020 | 360 | 18 | 1565 | 7293 |
| 400,420,440,450,460,000,000 | 650 | 540 | 1715 | 8228 | |||||||
| 530,560,600,630 | 800 | 680 | 1880 | 8699 | |||||||
| ZC22 | 2240000 | 500 | 420,440,450,460,480,000 | 650 | 540 | 1520 | 1100 | 405 | 19 | 2338 | 9736 |
| 530,560,600,630 | 800 | 680 | 2596 | 10631 | |||||||
| 670,710,750 | 900 | 780 | 2522 | 9473 | |||||||
| ZC23 | 2800000 | 460 | 480,500 | 650 | 540 | 1640 | 1240 | 440 | 20 | 3490 | 11946 |
| 530,560,600,630 | 800 | 680 | 3972 | 13822 | |||||||
| 670,710,750 | 900 | 780 | 3949 | 1226 | |||||||
| 800,850 | 1000 | 880 | 3982 | 12095 | |||||||
