Contineo tactus

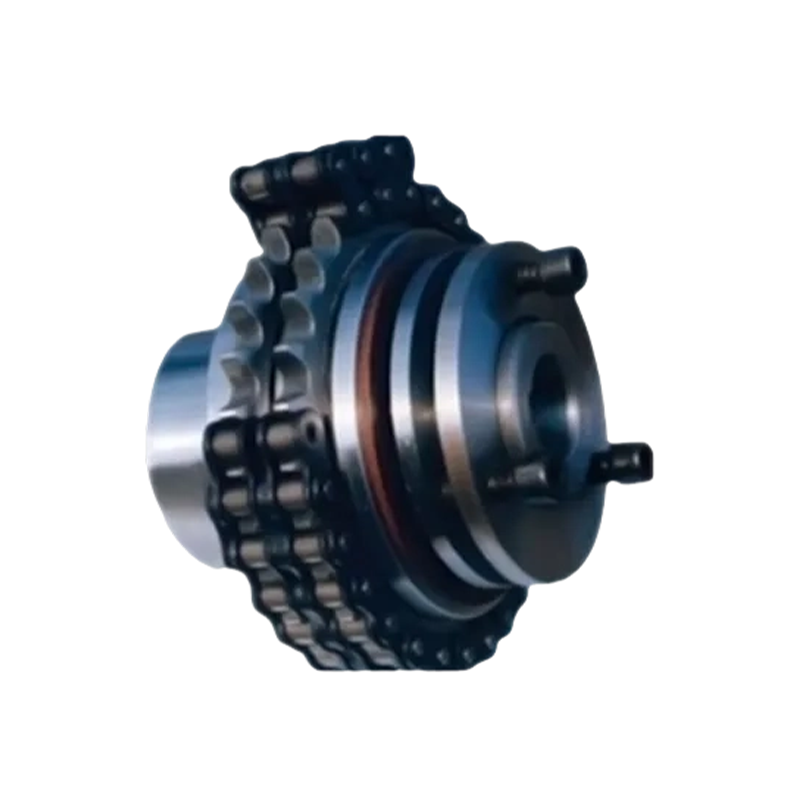

MAC genus friction salutem copulationem (Q/YA41001X-2018)
MAC friction genus salus copulatione (parendo Q / YA41001X-2018 vexillum) nucleus industrialis est componentes qui potentiam efficientem tradendi et praecisionem oneris tutelae integrat. Provectio transmissionis solutio per professionalem Salutis copulationem Factory evolvit, nuclei technologiae in "instanti lapsus friction par" praesidium mechanismum est: cum onus systematis preset torques limen excedit, attritio par statim leniter sine ulla labefactio vel fractura lapsus, efficaciter onerare innixus et ad absolutam salutem motorum, transmissionis spicula, et pretiosa terminalia instrumenta. Praeterea productum habet flexibilitatem temperatio torques praealti valde, et usores ad valorem tutelae accurate constituere possunt, vere nucem vel hydraulicam pressionem aptando. Haec logica maxime moderatrix tutelae permittit ut egregiam fidem demonstraret in condicionibus implicatis operandi.
In indicibus faciendis et efficientiae conservationis, torques nominalis huius seriei late patet ab 6.3 N · m ad 9500 N · m, et efficientia tradenda supra 95% conservari solet, plene demonstrans technicam peritiam praecipui qualitatis Salutis Copulturae Nulla productorum. Haec copulatio utitur usu repugnantis et summus temperatura repugnantis attritu materiarum (ut aes subnixum pulveris metallurgiae), quae celeriter normalem transmissionem etiam post crebras slippage sine necessitate ad partes reparandas potest reducere, valde reducendo in operando et sustentando impensas incepti. Cum optima eius obsessione emendae capacitatis et impulsus effusio et strepitus reductionis notarum, hoc productum est necessarium salutis munimentum in gravibus campis industrialibus, ut metallurgia, fodienda, machinis portus, et vecturae instrumenta per amplam copiam Salutis coitus.
- Morbi condimentum
- Nuntius mitte
ARTI PARAMETERS

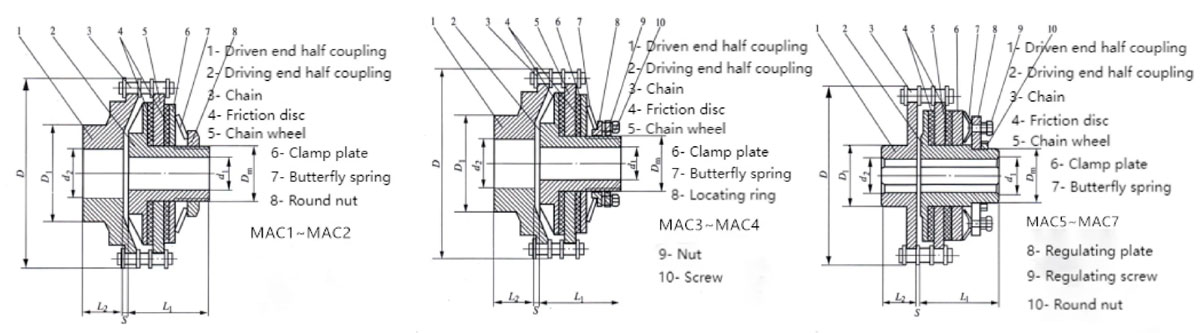

Praecipuae parametri et praecipuae rationes MAC friction tuta coitus
| Type | Nominal torques N·m | Celeritas licita [n]/r.min⁻¹ | Incessus finis | Incessus finis | D | D m | D₁ | S | Missa /kg | Inertia /kg·m² | |||
| Scapus diametri | longitudo Y | Scapus diametri | longitudo Y | ||||||||||
| min | max | d₁ | L₁ | d₂ | L₂ | ||||||||
| MAC1Q | 6.3 | 28 | 1000 | 10,11,12,14,16,18,19 | 52 | 14 | 27 | 101 | M33×1.5 | 60 | 3.7 | 3.0 | 0.003 |
| 16,18,19 | 30 | ||||||||||||
| 20,22,24 | 38 | ||||||||||||
| 25,28 | 44 | ||||||||||||
| MAC1Z | 14 | 56 | 16,18,19,20,22,24 | 52 | 18,19 | 30 | |||||||
| 20,22,24 | 38 | ||||||||||||
| 25,28 | 44 | ||||||||||||
| 30,32,35,38 | 60 | ||||||||||||
| MAC2Q | 20 | 80 | 800 | 16,18,19,20,22,24,25 | 62 | 18,19 | 30 | 137 | M42×1.5 | 80 | 4.2 | 8.0 | 0.014 |
| 20,22,24 | 38 | ||||||||||||
| 25,28 | 44 | ||||||||||||
| 30,32,35,38 | 60 | ||||||||||||
| MAC2Z | 40 | 140 | 19, 20, 22, 24, 25, 28 | 62 | 20,22,24 | 38 | |||||||
| 30,32,35,38 | 44 | ||||||||||||
| 40,42,45 | 60 | ||||||||||||
| MAC3Q | 63 | 224 | 500 | 20, 22, 24, 25, 28 | 75 | 20,22,24 | 38 | 188 | M65×2 | 110 | 3.7 | 18.9 | 0.061 |
| 25,28 | 44 | ||||||||||||
| 30,32,35 | 82 | 30,32,35,38 | 60 | ||||||||||
| 40,42,45,48 | 84 | ||||||||||||
| MAC3Z | 90 | 400 | 25,28 | 75 | 30,32,35,38 | 60 | |||||||
| 30,32,35,38 | 82 | 40,42,45,48 | 84 | ||||||||||
| 40,42,45 | 112 | 50,55,56 | 84 | ||||||||||
| 60,63,65 | 10 | ||||||||||||
| MAC4Q | 125 | 560 | 400 | 30,32,35,38 | 100 | 30,32,35,38 | 60 | 250 | M90x2 | 150 | 5.2 | 46.5 | 0.658 |
| 40,42,45,48,50 | 112 | 40,42,45,48,50,55,56 | 84 | ||||||||||
| 60,63,65,70 | 10 | ||||||||||||
| MAC4Z | 224 | 1120 | 35,38 | 100 | 40,42,45,48,50,55,56 | 84 | |||||||
| 40,42,45,48,50,55 | 112 | 60,63,65,70,71,75 | 10 | ||||||||||
| 60,63 | 142 | 80,85,90 | 13 | ||||||||||
| MAC5Q | 400 | 1400 | 300 | 38,40,42,45,48,50 | 120 | 40,42,45,48,50,55,56 | 84 | 354 | M100x2 | 130 | 5.8 | 76.5 | 0.921 |
| 60,63,65 | 142 | 60,63,65,70,71,75 | 10 | ||||||||||
| MAC5Z | 630 | 2000 | 42,45,48,50,55 56 | 120 | 45.48.50.55.56 | 84 | |||||||
| 60,63,65,70,71 | 142 | 60,63,65,70,71,75 | 10 | ||||||||||
| 80,85 | 13 | ||||||||||||
| MAC6Q | 900 | 2800 | 200 | 45,48,50,55,56,60; 63,65,70,71,75 | 150 | 45,48,50,55,56 | 84 | 470 | M150x2 | 145 | 5.4 | 155 | 3.726 |
| 60,63,65,70,71,75 | 10 | ||||||||||||
| 80,85 | 13 | ||||||||||||
| MAC6Z | 2000 | 4000 | 65,70,71,75 | 150 | 65,70,71,75 | 10 | |||||||
| 80,85,90,95 | 172 | 80,85,90,95 | 13 | ||||||||||
| 100 | 212 | 100 | 16 | ||||||||||
| MAC7Q | 2500 | 5000 | 140 | 70,71,75,80,85,90,95 | 190 | 80,85,90,95 | 13 | 631 | M190x3 | 250 | 10 | 335 | 8.249 |
| 100,110,120,125 | 16 | ||||||||||||
| 100,110 | 212 | 130,140 | 20 | ||||||||||
| MAC7Z | 4700 | 9500 | 95 | 190 | 110,120,125 | 16 | |||||||
| 100,110,120,125 | 212 | 130,140,150 | 20 | ||||||||||
| 130 | 252 | 160,170 | 24 | ||||||||||
