MCD genus prunum informibus copulatio elastica (Q/YM 35013X-2018)

Name: MCD genus prunum informibus copulatio elastica (Q/YM 35013X-2018)
Rating: 5 (99 reviews)

MCD genus corna flore informibus elasticis coitu (obsequor Q / YM 35013X-2018 vexillum) incursus habet effusio, resistentiam gerunt, et effectus buffering, qui efficaciter possunt sublevare ictum in transmissione. Eius aptabilitas environmental etiam latissima est, et operationem stabilem conservare potest in amplitudine temperaturae -30°C ad 80° C. In terminis technicis parametris, series MCD magnum praebet spatium delectu, cum torques nominali vndique ab 28 N · m ad 14000 N · m, torques maximus instantaneus potest sustineri usque ad 25200 N · m, et maximam permissam celeritatem 8500 r/m. Ut variis systematibus mechanicis implicatis adaptetur, scapo foraminis diametri ab 12mm ad 160mm sustinet et elementis elasticis diversarum specificationum ab MT1 ad MT14 instructus est. Cum transmissione robusta peracta, in gravibus campis industrialibus productus late usus est ut instrumento metallurgico, machinatione fodienda, aqua conservativa machinativa, elevatio et vecturae, machinis elaborandis, facilitatibus portubus..

Contactus Us

PDF Download

PREV: MCS typus prunum informibus elasticis coitu (Q/YM 35014X-2018)
DEINDE: MC prunum elasticum conformatum (Q/YM 35012X-2018)

Morbi condimentum

Nuntius mitte

ARTI PARAMETERS

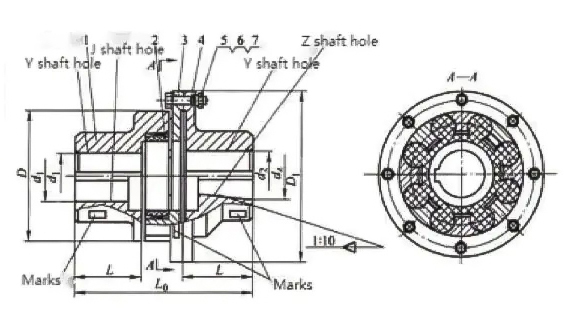

Parametri fundamentales et praecipuae dimensiones quincunx MCD copulationis elasticae

Type	Nominal torque Tn/N·m	Maximum torque Tmax/N·m	licita celeritas [n]/r.min⁻¹	Scapus diametri d _1; d ₂ ,d _z	L	L₀	D	D₁	Elastica elementum type	Mass m/kg	Momentum inertiae I/kg •m²
MCD1	28	50	8500	12,14,15,18,19,20,22,24,25	35	92	50	90	MT1	1.206	0.00082
MCD2	50	100	7600	16,18,19,20,22,24,25,28,30	38	101.5	60	100	MT2	1.648	0.0014
MCD3	112	200	6900	20,22,24,25,28,30,32	40	110	70	110	MT3	2.357	0.0024
MCD4	160	288	6200	22,24,25,28,30,32,35,38,40	45	122	85	125	MT4	3.556	0.005
MCD5	355	640	5000	25,28,30,32,35,38,40,42,45	50	138.5	105	150	MT5	6.361	0.0135
MCD6	450	810	4100	30,32,35,38,40,42,45,48	55	155	125	185	MT6	10.768	0.0329
MCD7	710	1280	3700	35, 38, 40, 42, 45, 48, 50, 55	60	172	145	205	MT7	15.302	0.0581
MCD8	1250	2250	3100	45, 48, 50,55,56,60,63,65	70	195	168	240	MT8	22.717	0.1175
MCD9	2000	3600	2800	55, 56, 60, 63, 65, 70, 71, 75, 80	80	224	198	270	MT9	34.439	0.233
MCD10	3150	5670	2500	60, 63, 65*, 70,71,75,80,85,90,95,100	90	248	228	305	MT10	51.358	0.459
MCD11	5000	9000	2200	70,71,75,80,85,90,95,100,110,120	100	284	258	350	MT11	81.302	0.977
MCD12	7100	12780	1900	80,85,90,95,100,110,120,125,130	115	321	298	400	MT12	115.53	1.751
MCD13	12500	22500	1600	90, 95, 100, 110, 120, 125, 130, 140, 150	125	348	358	460	MT13	161.79	3.366
MCD14	14000	25200	1500	100, 110, 120, 125, 130*, 140, 150, 160	135	358	400	500	MT14	196.3	4.867

Nota:

1. Massa et momentum ofinertiae sunt valores approximati calculi secundum materiam dejecti ferrei et hastili maximae foraminis

2. Shaft foramen diametri cum* adhiberi potest pro Z-typo scapus foraminis, si secundum GB/T3852 foraminis longitudinis scapus, negotia cum fabrica.
