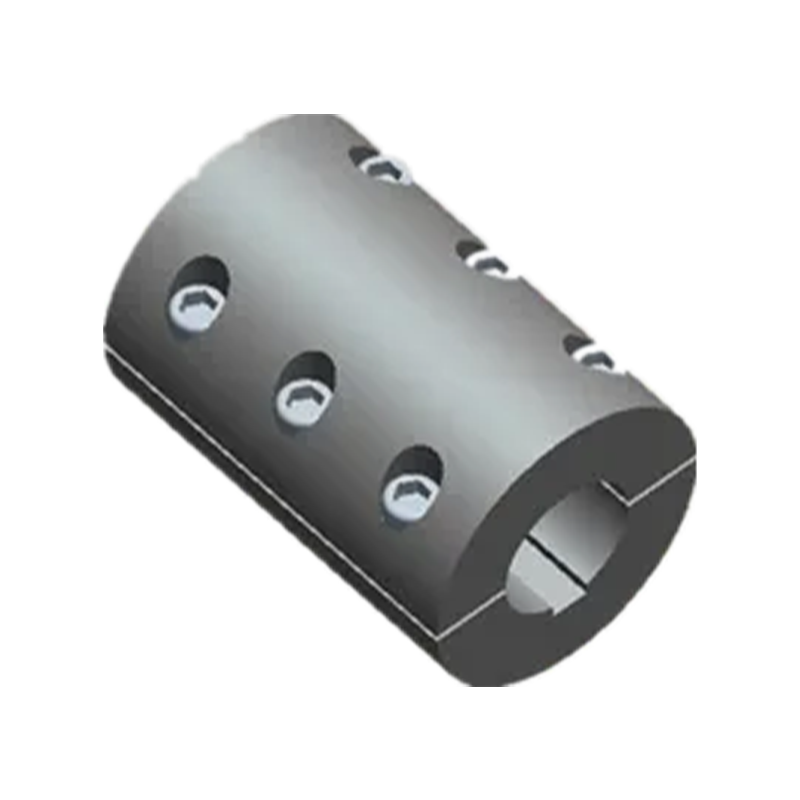

XXIII / JKW genus iuncturae fibulae
MAC friction genus salus copulatione (obsequium Q / YA41001X-2018 vexillum) instrumentum transmissionis industrialis est quod subtilitatem processus fabricandi cum efficiente onerare technologiae tutelae componit. Evolvitur et ordinatur per professionalem Copultionis Rigidorum Manufacturer. Core technologicum commodum in instantaneo lapsus friction par tutelae mechanismi est: cum onus tradendi ratio superat torquem nominalem preset (tegens amplitudinem 6.3 N · m ad 9500 N · m), par frictio statim leviter labitur, efficaciter ictum oneris in apparatu motore et terminali separat. Sicut technologicum extensio Rigidorum Copultionis Factory cum alta peritia technica, hic productus usus obsistens et summus temperatus materiae repugnant friction, quae efficaciam transmissionis super 95% etiam post multiplicem tutelae excitationem ponere potest. Praeterea haec coniunctio suppleta ex coniunctione Rigidorum Supplier sustinet accuratam torquem praestando aptando vere nucem. Compactae structurae et optimae obsessio mercedis et impulsus effusio strepitus reductionis ad effectum deducendi facit necessariam claustrum securitatis in metallurgia, fodienda et automatione linearum productionis..
- Morbi condimentum
- Nuntius mitte
ARTI PARAMETERS

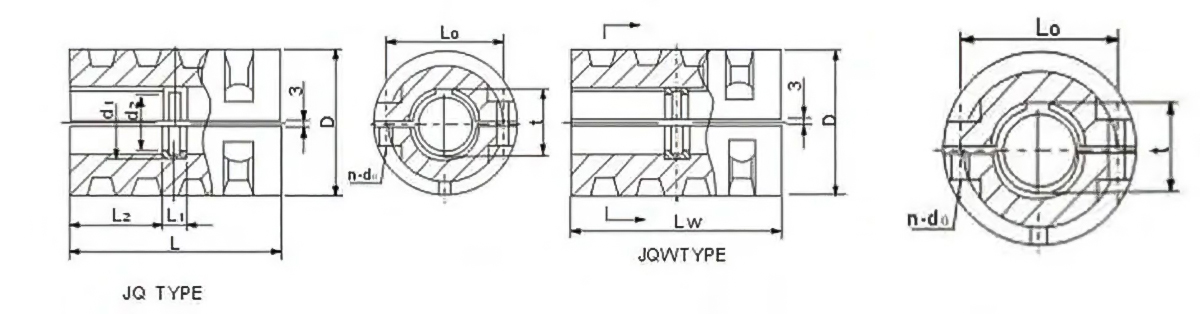

Praecipuae parametri et praecipuae dimensiones JK/JKW generis iuncturae fibulae
| Type | Foramen diameter d | Nominal torques Tmax/N·m | D | L | L₁ | L₂ | L₀ | n-d₀ | Lw | n-d₀ | d₁ | d₂ | Massa m/kg |
| JK-25 | 25 | 90 | 95 | 110 | 20 | 45 | 58 | 4-12 | 100 | 4-12 | 32 | 20 | 4.47 |
| JK-30 | 30 | 90 | 102 | 130 | 20 | 55 | 64 | 4-14 | 110 | 4-14 | 38 | 25 | 4.47 |
| JK-35 | 35 | 236 | 118 | 162 | 20 | 71 | 80 | 6-14 | 115 | 4-14 | 43 | 30 | 7.6 |
| JK-40 | 40 | 236 | 118 | 162 | 20 | 71 | 80 | 6-14 | 115 | 4-14 | 48 | 35 | 7.6 |
| JK-45 | 45 | 530 | 135 | 190 | 24 | 83 | 100 | 6-14 | 135 | 4-14 | 57 | 37 | 0.85 |
| JK-50 | 50 | 530 | 135 | 190 | 24 | 83 | 100 | 6-14 | 135 | 4-14 | 62 | 22 | 10.85 |
| JK-55 | 55 | 530 | 135 | 190 | 24 | 83 | 100 | 6-14 | 135 | 4-14 | 67 | 47 | 10.85 |
| JK-60 | 60 | 1400 | 72 | 250 | 30 | 110 | 124 | 8-18 | 196 | 6-18 | 73 | 50 | 25.06 |
| JK-65 | 65 | 1400 | 172 | 250 | 30 | 110 | 124 | 8-18 | 196 | 6-18 | 78 | 55 | 25.06 |
| JK-70 | 70 | 1400 | 172 | 250 | 30 | 110 | 124 | 8-18 | 196 | 6-18 | 83 | 00 | 25.06 |
| JK-80 | 80 | 2080 | 185 | 280 | 38 | 121 | 138 | 8-18 | 220 | 6-18 | 94 | 70 | 30.16 |
| JK-85 | 85 | 265 | 185 | 280 | 38 | 121 | 138 | 8-18 | 220 | 6-18 | 99 | 75 | 30.16 |
| JK-90 | 90 | 5200 | 230 | 330 | 38 | 148 | 170 | 8-23 | 255 | 6-23 | 105 | 80 | 56.38 |
| JK-95 | 95 | 5200 | 230 | 330 | 38 | 148 | 170 | 8-23 | 255 | 6-23 | 110 | 85 | 56.38 |
| JK-100 | 100 | 5200 | 230 | 330 | 38 | 148 | 170 | 8-23 | 255 | 6-23 | 115 | 90 | 56.38 |
| JK-105 | 105 | 5200 | 230 | 330 | 38 | 148 | 170 | 8-23 | 255 | 6-23 | 120 | 95 | 56.38 |
| JK-110 | 110 | 9000 | 260 | 390 | 46 | 172 | 200 | 8-23 | 300 | 6-23 | 125 | 100 | 90 |
| JK-115 | 115 | 9000 | 260 | 300 | 46 | 172 | 200 | 8-23 | 300 | 6-23 | 130 | 105 | 90 |
| JK-120 | 120 | 9000 | 260 | 300 | 46 | 172 | 200 | 8-23 | 300 | 6-23 | 135 | 110 | 90 |
| JK-125 | 125 | 15000 | 280 | 440 | 54 | 193 | 210 | 10-23 | 360 | 8-23 | 140 | 115 | 125 |
| JK-130 | 130 | 15000 | 280 | 440 | 54 | 193 | 210 | 10-23 | 360 | 8-23 | 146 | 118 | 125 |
| JK-140 | 140 | 15000 | 300 | 440 | 54 | 193 | 230 | 10-27 | 360 | 8-23 | 158 | 128 | 140 |
| JK-150 | 150 | 28000 | 340 | 500 | 64 | 218 | 200 | 10-33 | 406 | 8-33 | 168 | 134 | 215 |
| JK-160 | 160 | 28000 | 340 | 500 | 64 | 218 | 200 | 10-33 | 406 | 8-33 | 180 | 144 | 215 |
| JK-180 | 180 | 31000 | 380 | 560 | 72 | 244 | 300 | 10-33 | 460 | 8-33 | 200 | 162 | 350 |
| JK-200 | 200 | 33750 | 420 | 640 | 80 | 280 | 340 | 10-33 | 540 | 8-33 | 220 | 182 | 516 |
