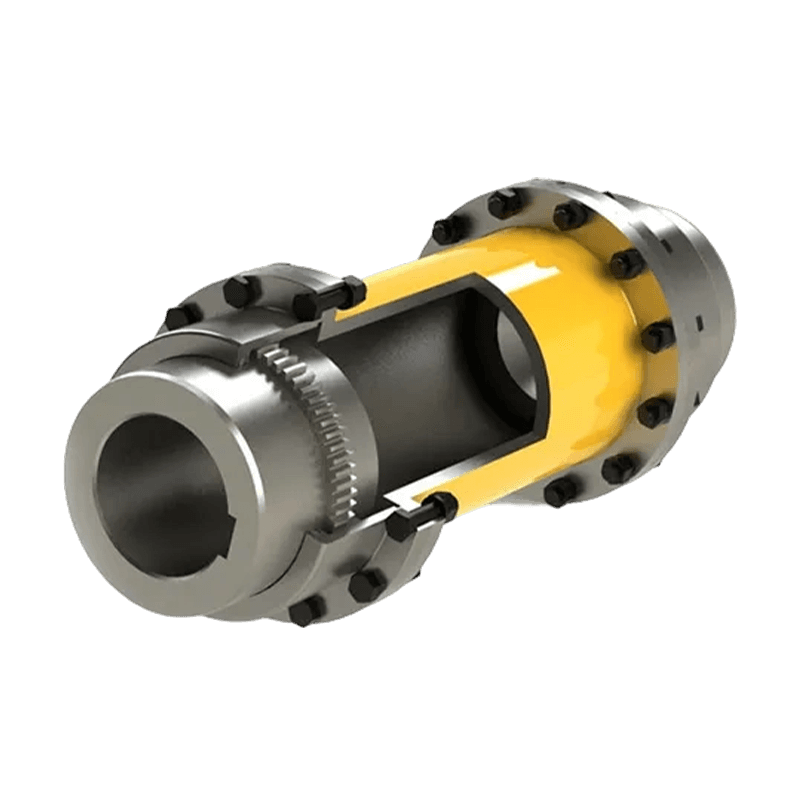

GCT Connexum cum media manica tympanum calces copuletur (Q/YG 13013X-2018)

Name: GCT Connexum cum media manica tympanum calces copuletur (Q/YG 13013X-2018)
Rating: 5 (99 reviews)

Product Overview: Genus calces GCT copulationis cum manica intermedia (numerus vexillum: Q/YG 13013X-2018) est praecisio-machina transmissionis solutio destinata ad optimize tradendae potentiae mechanicae inter spicula rotanda.

Cum flexibilis coniunctio sine elementis inelasticis, munus cruciale exercet in variis applicationibus industrialibus, quae accurata et certa torques tradenda sunt.

Features clavis:

1. Innovativum medium manica tympanum consilium: Hoc consilium auget iuncturae facultatem ad compensandae misalignment axialis, radialis et angularis, dum accentus in connexis spiculis efficaciter minuit, operandi apparatum lenis operandi et extenuandi indumentum procurans.

2. Materiae superiorum et durabilitas: fabricata cum materia eminentia, productus iactat eximiam durabilitatem, resistens acris temperaturae mutationes, ambitus mordax, et condiciones gravis officii, significanter extendens suam vitam servitutem.

3. Princeps efficientiae potentiae transmissionis: praecisio machinata, haec coniunctio inconsutilem connexionem consequitur, backlash extenuando ut accurate ac certa tradenda torques efficiat, eamque apprime aptam ad curationem applicationes facit.

4. Securus instruitur et sustentationem: Productum consilium prioritizat usuario facilitatem operandi, faciliorem reddendi processum conventus. Eius sustentationem requisita sunt valde humilis, ad meliorationem altiore sumptus-efficentiae conferentes.

5. Alta flexibilitas et Versatilitatis: Haec copulatio latae iactat convenientiae, aptans variis diametris et speciebus hastile, et diversis ambitus industriae aptum.

Configurationis Genera: Duae principales formae structurales, Typus I et Typus II, praesto sunt ad varias institutiones longitudinum et spatii requisitorum accommodatas.

Contactus Us

PDF Download

PREV: GCC Vertical installation tympanum calces copuletur (Q/YG 13014X-2018)
DEINDE: GCP Drum calces coitu fregit discus (Q/YG 13012X-2018)

Morbi condimentum

Nuntius mitte

ARTI PARAMETERS

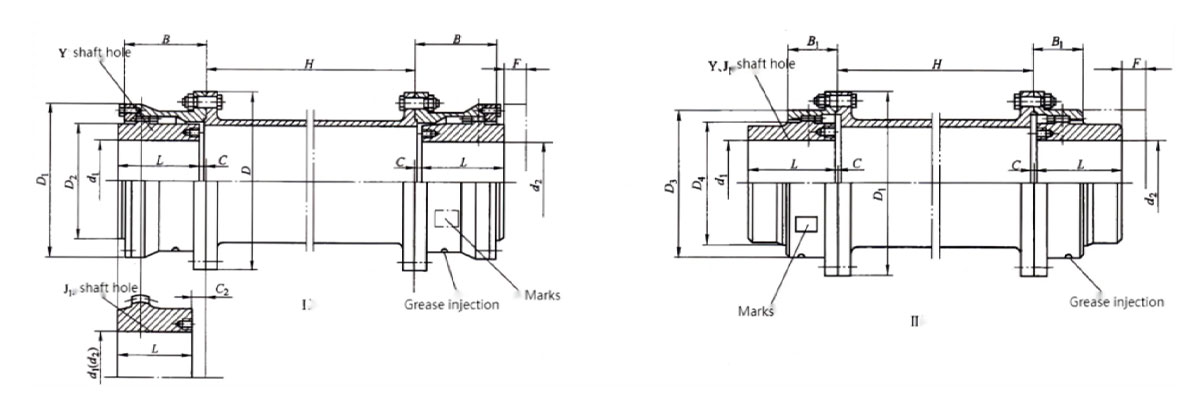

Parametri fundamentales et principales rationes GCT generis coitus cum manica media tympani calces

Type	Aureus nominalis Tn/KN·m	D, d₂, d₂	Hastile longitudo L		D	D₁	D₂	D₃	D₄	B	B₁	F	H min	C		C₂	Mass/kg		Momentum inertiae /kg·m²		Adipe / kg*
			Y	J₁										Ⅰ	Ⅱ		Ⅰ	Ⅱ	Ⅰ	Ⅱ	Ⅰ	Ⅱ
GCT1	800	1214	32	—	122	115	98	88	60	58	50	30	75	30	—	—	5.66	4.86	0.008	0.0063	0.085	0.04
		16,18,19	42	—										20	14	—
		20,22,24	52	—										10	4	—
		25,28	62	44										3	3	18
		30,32,35,38	82	60												12
		40,42	112	84												12
GCT2	1400	22,24	52	—	150	145	118	108	77	68	52	30	80	20	4	—	9.78	7.48	0.0021	0.0016	0.09	0.06
		25,28	62	—										10	3	—
		30,32,35,38	82	60										3		16
		40,42,45,48,50,55,56	112	84
GCT3	2800	22,24	52	—	170	165	140	125	90	80	54	30	80	33	7	—	16.7	12.2	0.047	0.033	0.17	0.1
		25,28	62	—										23	3
		30,32,35,38	82	60										3		25
		40,42,45,48,50,55,56	112	84												16
		60,63	142	107
GCT4	5000	30,32,35,38	82	—	200	195	160	145	112	90	58	30	100	13	3	—	25.6	19.6	0.098	0.073	0.25	0.15
		40,42,45,48,50,55,56	112	84										3		17
		60,63,65,70,71,75	142	107
		80	172	132
GCT5	8000	30,32,35,38	82	—	225	215	180	168	128	100	63	30	100	23	3	—	35	26.1	0.175	0.126	0.35	0.22
		40,42,45,48,50,55,56	112	84										3		19
		60,63,65,70,71,75	142	107
		80,85,90	172	132
GCT6	11200	32,35,38	82	—	245	230	200	185	145	112	67	30	100	35	5	—	51.6	38	0.295	0.213	0.4	0.29
		40,42,45,48,50,55,56	112	—										5		—
		60,63,65,70,71,75	142	107												20
		80,85,90,95	172	132
		100	212	167
GCT7	16000	32,35,38	82	—	272	265	230	210	160	122	74	30	120	45	5	—	68.6	45	0.53	0.35	0.6	0.44
		40,42,45,48,50,55,56	112	—										15		—
		60,63,65,70,71,75	142	107										5		20
		80,85,90,95	172	132
		100110	212	167
GCT8	22400	55,56	112	—	290	272	245	225	176	136	81	30	120	29	5	—	79.5	55.8	0.71	0.46	0.75	0.55
		60,63,65,70,71,75	142	107										5		34
		80,85,90,95	172	132												20
		1.0011E 11	212	167
GCT9	28000	65,70,71,75	142	107	315	305	265	245	190	140	88	30	155	5	5	38	106.5	80.5	1.05	0.77	1	0.79
		80,85,90,95	172	132												28
		100,110,120,125	212	167
		130,140	252	202
GCT10	45000	75	142	一	355	340	300	280	225	165	98	30	155	28	5	—	158.8	121.8	1.87	1.54	1.3	0.9
		80,85,90,95	172	132										5		38
		100,110,120,125	212	167												28
		130,140, 150	252	202
		160	302	242
GCT11	63000	85,90,95	172		412	385	345	325	256	180	112	40	175	15	8	—	216.6	169.6	3.71	2.82	1.6	1.23
		100,110,120,125	212	167										8		32
		130,140, 150	252	202
		160,170,180	302	242
GCT12	90000	120,125	172	167	440	435	375	360	288	210	125	40	205	8	8	45	305.3	245.3	6.43	4.84	2.6	1.9
		130,140, 150	212	202												32
		160,170,180	252	242
		190,200	302	282
GCT13	125000	140,150	252	202	490	480	425	400	320	235	136	50	205	8	8	38	394.5	313.5	10.58	7.9	3.3	2.4
		160,170,180	302	242												32
		190,200,220	352	282
GCT14	180000	160,170,180	302	242	545	540	462	440	362	265	158	50	240	10	10	32	529.5	430.5	17.72	13.78	4.8	3.7
		190,200,220	352	282												10
		240,250,260	410	330
GCT15	250000	160,170,180	302	242	580	—	488	—	400	280	—	50	240	10	—	43	684.5	—	25.25	—	5	—
		190,200,220	352	282												32
		240,250,260	410	330												10
		280	470	380
GCT16	315000	180	302	242	650	—	560	—	440	300	—	50	240	12	—	63	948.2	—	43.7	—	7	—
		190,200,220	352	282												32
		240,250,260	410	330												12
		280,300	470	380
GCT17	400000	200,220	352	282	690	—	600	—	460	325	—	50	280	12	—	48	1059	—	57.37	—	8	—
		240,250,260	410	330												12
		280,300,320	470	380
GCT18	500000	220	352	282	750	—	650	—	510	350	—	60	280	12	—	73	1399	—	59.37	—	10	—
		240,250,260	410	330												12
		280,300,320	470	380
		340,360	550	450
GCT19	630000	240,250,260	410	330	775	—	690	—	595	372	—	60	350	12	—	12	1544	—	110.2	—	11	—
		280,300,320	470	380
		340,360,380	550	450
GCT20	800000	260	410	330	825	—	730	—	580	392.5	—	60	350	14		14	2099	—	166.1	—	13	—
		280,300,320	470	380
		340,360,380	550	450
		400	650	540
GCT21	900000	280,300,320	470	380	925	—	825	—	620	405	—	60	350	14	—	14	2482	—	244.7	—	20	—
		340,360,380	550	450
		400,420,440	650	540
GCT22	1000000	320	470	380	950	—	850	—	665	410	—	60	400	14	—	14	2797	—	299.2	—	26	—
		340,360,380	550	450
		400,420,440,450,460	650	540
GCT23	1120000	360,380	550	450	1030	—	900	—	710	440	—	60	400	14	—	14	3183	—	388.8	—	29	—
		400,420,440,450,460,480,500	650	540
GCT24	1400000	380	550	450	1060	—	925	—	730	450	—	70	400	16	—	16	3801	—	482	—	32	—
		400,420,440,450,460,480,500	650	540
		520	800	680
