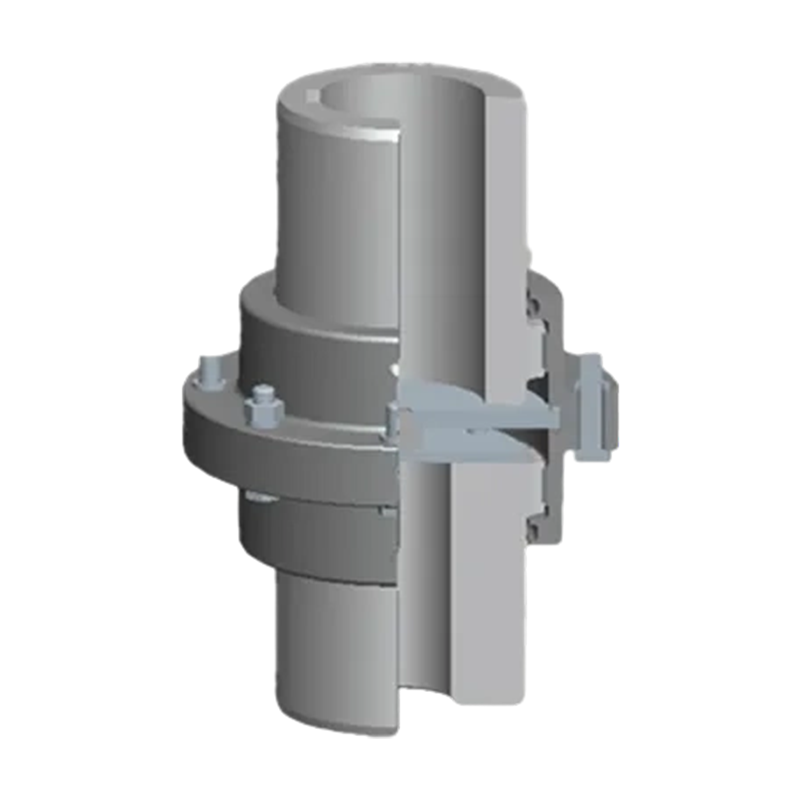

GCC Vertical installation tympanum calces copuletur (Q/YG 13014X-2018)

Name: GCC Vertical installation tympanum calces copuletur (Q/YG 13014X-2018)
Rating: 5 (99 reviews)

Product Overview: Typus GCC verticaliter ascendens tympanum calces iuncturae (vexillum: Q/YG 13014X-2018) est solutio ligaminis incisionis mechanicae designata specie ad systemata transmissionis potentiae verticalis destinata. In verticali systemate spiculi disposito, hic productus, cum suo praeciso consilio et firmitate superior, fit nucleus componentis tradendi Aureus efficax et stabilis.

Core Commoda:

1. Dedicata Structura Vertical Design: Dissimiles traditae coniunctiones horizontaliter ascendentes, genus GCC specie optimized pro axiali positione et stabilitate provocationum quae in verticalibus institutionibus oriri possunt, eamque apprime aptam ad verticaliter transmissiones stipite aligned.

2. Drum Apparatus Compensation Technologia: Tympanum calces configuratione adhibens, non solum facultatem ad tractandum auget misalignment et ictum onera, sed etiam efficit distributionem aequabilem torques, reducendo accentus in machinis connexis et inde in leviori operatione.

3. High Torque Load Capacity: Designata applicationes graves officiorum, haec coniunctio torquis nominalis praealtus possidet, facile occurrens potentiam postulat magnas perpendiculas, turbines, aliaque summae potentiae apparatum.

4. Alta Durabilitas et Corrosio Resistentia: Fabricata ab alto robore, obsistens, obsistens, materiarum qualitate summus, habet egregium lassitudinem resistentiae et corrosionis resistentiae, servans praelongam vitam servitutis etiam in asperis ambitus industriae.

5. Praeclara Alignment flexibilitatem: Efficaciter compensat angularis, radialis, et axialis misalignment, servans praecisam sagittam alignment effectus vel sub variis oneribus vel dura operans conditiones.

Application Area: Hoc productum est late in industriis transmissionibus verticalibus requirentibus:

Liquor Engineering: Aquae magnae verticales soleatus, compressores, soleatus circulantes.

2. Energy and Power: Vertical turbines, generator occidit.

3. Gravis Industry: Instrumentum Metallurgicum, Machinaria fodienda, Portus instrumenti tractandi, machinis levandi.

Institutionem et sustentationem: Genus GCC copulationis cum usuario commodo in mente designata est. Structura eius compacta institutionem in spatiis verticalibus angustis faciliorem reddit; simul, eius humilis-victum consilium significanter downtime minuit. Patet notae in producto superficiei auxilium in certa positione et institutione / committendo.

Contactus Us

PDF Download

PREV: GCJ Tympanum telum medium iuncturae calces connexum (Q/YG 13015X-2018)
DEINDE: GCT Connexum cum media manica tympanum calces copuletur (Q/YG 13013X-2018)

Morbi condimentum

Nuntius mitte

ARTI PARAMETERS

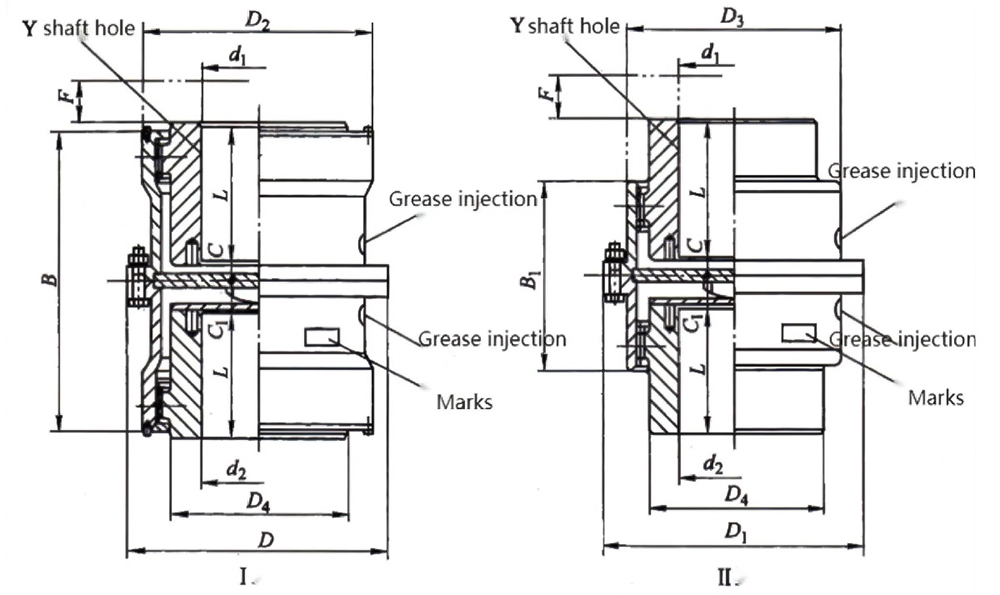

Parametri fundamentales et principales dimensiones GCC verticalis ascendens tympanum calces copulationis

Type	Nominal torque Tn/KN·m	licita celeritas [n]/r·min⁻¹	hastile foraminis diametri d₁, d₂	Shaft foramen longitudo L	D	D₁	D₂	D₃	D₄	B	B₁	F	C		C₁	Mass /kg		Momentum inertiae /k·m²		Grease
																				Ⅰ		Ⅱ
				J1									Ⅰ	Ⅱ		Ⅰ	Ⅱ	Ⅰ	Ⅱ	Up	Descende	Ascende
GCC1	800	7500	12,14	32	122	115	98	88	60	116	100	30	30	—	30	5.8	5.1	0.0079	0.0064	0.07	0.016	0.052
			16,18,19	42									20	14	20
			20,22,24	52									10	6	14
			25,28	62									6	6
			30,32,35,38	82
			40,42	112
GCC2	1400	6700	22,24	52	150	145	118	108	77	136	104	30	20	7	20	10	7.9	0.022	0.017	0.095	0.025	0.069
			25,28	62									10		16
			30,32,35,38	82									7
			40,42,45,48	112
			50,55,56
GCC3	2800	6300	22,24	52	170	165	140	125	90	160	108	30	33	7	30	17	12.8	0.047	0.033	0.17	0.07	0.11
			25,28	62									23		20
			30,32,35,38	82									7
			40,42,45,48,50,55,56	112
			60,63	142
GCC4	5000	5600	30,32,35,38	82	200	195	160	145	112	180	116	30	13	7	20	26.2	20.5	0.099	0.074	0.29	0.11	0.14
			40,42,45,48,50,55,56	112									7
			60,63,65,70,71,75	142
			80	172
GCC5	8000	5300	30,32,35,38	82	225	215	180	168	128	200	126	30	23	8	26	36.1	27.7	0.177	0.13	0.36	0.15	0.21
			40,42,45,48,50,55,56	112									8
			60,63,65,70,71,75	142
			80,85,90	172
GCC6	11200	5000	32,35,38	82	245	230	200	185	145	224	134	30	35	10	24	53.2	39.8	0.3	0.22	0.5	0.21	0.27
			40,42,45,48,50,55,56	112									10
			60,63,65,70,71,75	142
			80,85,90,95	172
			100	212
GCC7	16000	4500	32,35,38	82	272	265	230	210	160	244	148	30	45	10	28	71.1	47.5	0.53	0.35	0.78	0.31	0.4
			40,42,45,48,50,55,56	112									15
			60,63,65,70,71,75	142									10
			80,85,90,95	172
			100,110	212
GCC8	22400	4250	55,56	112	290	272	245	225	176	272	162	30	29	10	30	83	59.6	0.72	0.47	0.98	0.43	0.52
			60,63,65,70,71,75	142									10
			80,85,90,95	172
			100,110,120,125	212
GCC9	28000	4000	65,70,71,75	142	315	305	265	245	190	280	176	30	10	10	30	110	85	1.06	0.8	1.3	0.57	0.58
			80,85,90,95	172
			100,110,120,125	212
			130,140	252
GCC10	45000	3550	75	142	355	340	300	280	225	330	196	30	28	10	30	164	128	1.77	1.56	1.6	0.7	0.69
			80,85,90,95	172
			100,110,120,125	212									10
			130,140, 150	252
			160	302
GCC11	63000	3000	85,90,95	172	412	385	345	325	256	360	224	40	15	14	36	224	178	3.76	2.88	2.1	0.93	0.94
			100,110,120,125	212									14
			130,140, 150	252
			160,170,180	302
GCC12	90000	2800	120,125	212	440	435	375	360	288	414	250	40	14	14	36	315	255	6.55	4.93	3.1	1.3	1.5
			130,140, 150	252
			160,170,180	302
			190,200	352
GCC13	125000	2500	140,150	252	490	480	425	400	320	470	272	50	14	14	36	406	325	10.6	8	4.5	1.5	2.3
			160,170,180	302
			190,200,220	352
GCC14	180000	2300	160,170,180	302	545	540	462	440	362	530	316	50	16	16	36	542	423	17.8	13.9	6.8	2.3	3.1
			190,200,220	352
			240,250,260	410

Nota:

Massa et momentum inertiae approximatae sunt valores calculi ab Y informibus foraminis scapus maximae foraminis diametri.
