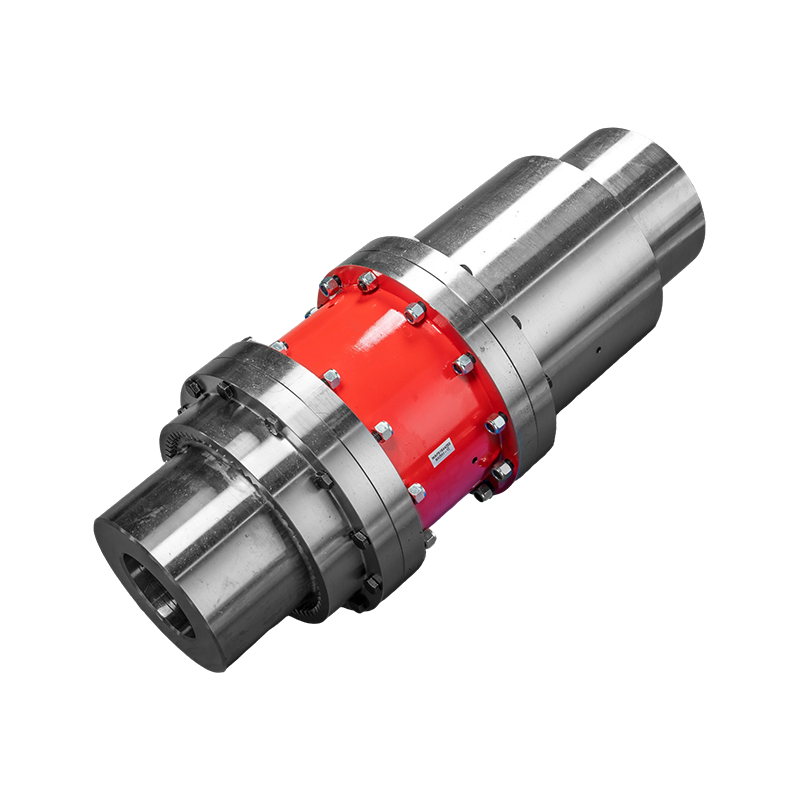

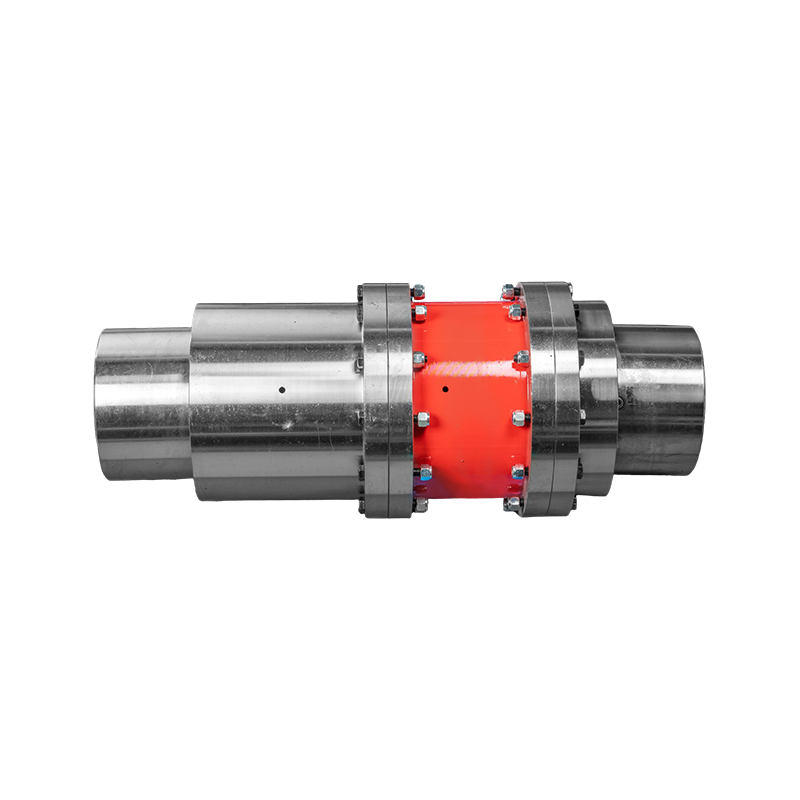

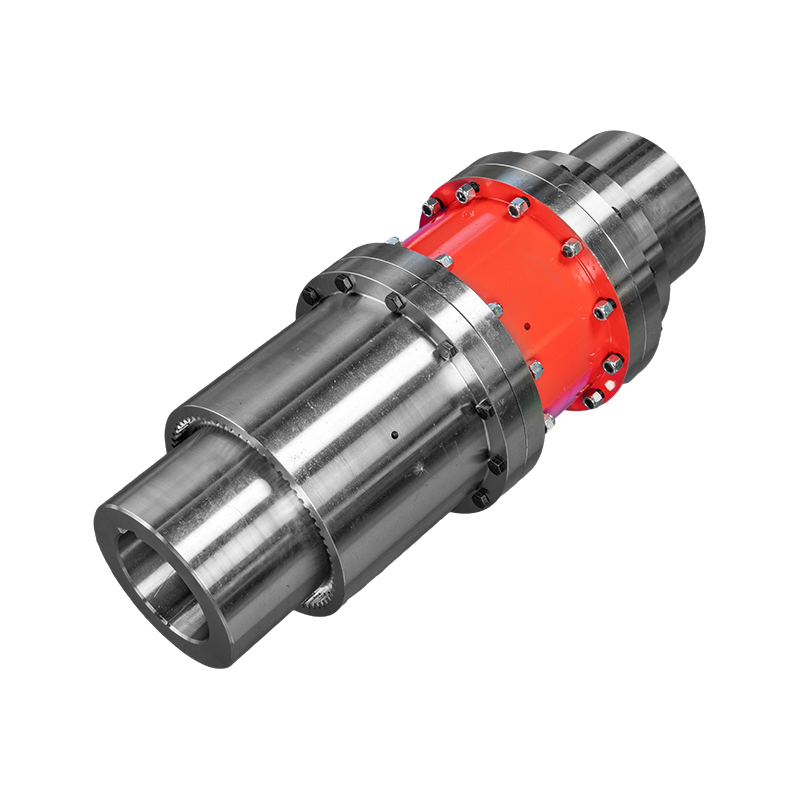

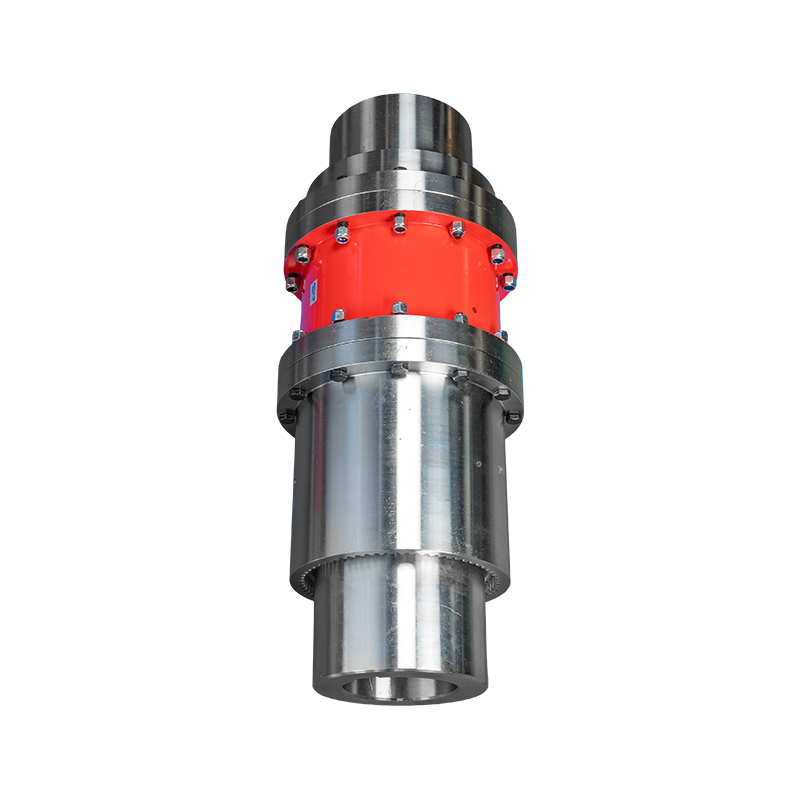

GCJ Tympanum telum medium iuncturae calces connexum (Q/YG 13015X-2018)

Name: GCJ Tympanum telum medium iuncturae calces connexum (Q/YG 13015X-2018)
Rating: 5 (99 reviews)

Product Overview:

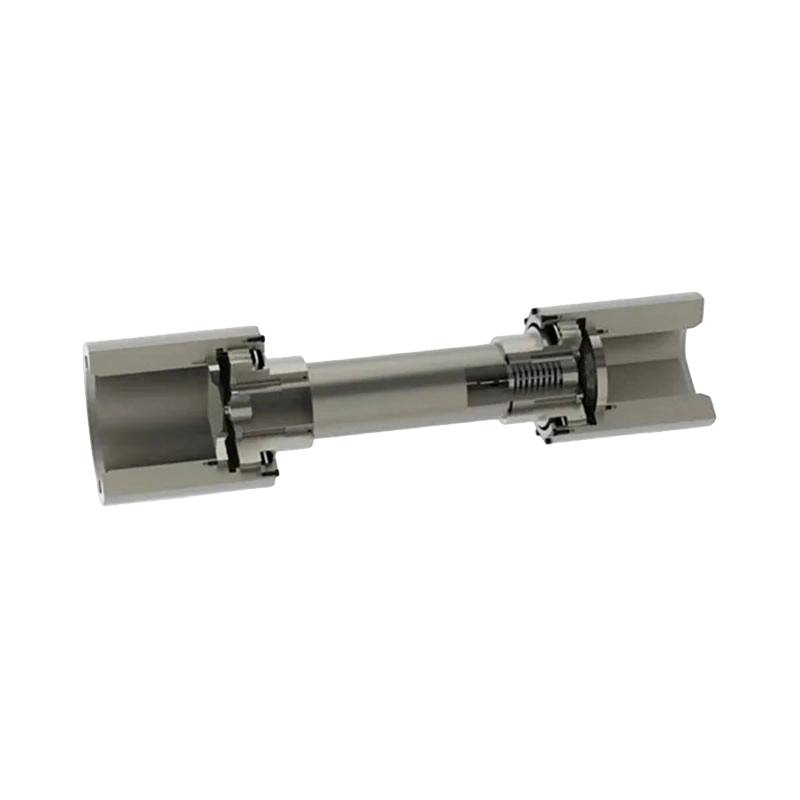

GCJ-typus phaleris coronati densi cum stipite intermedio coniunctio (Latin No.: Q/YG 13015X-2018) praecisio est pars mechanica specialiter destinata ad medium ad longum spatium potentiae transmissionis. Indicatur ut nexus flexibilis sine elementis elasticis, compagem "medii stipitis" inter duas medietates copulationis coronato-dente incorporat. Hoc consilium provocationes efficaciter resolvit circa emendas transmissionis et obsessionis torques in longinquo spatio spiculorum nexuum, ut continuam et stabilem operationem instrumentorum industrialium sub condicionibus multiplicibus operantes.

Core Design and Technical Commoda:

1. Superioris Displacement Compensatio: In nucleo suo adamussim designato coronato-dens structuram comprehendens praecise meshing inter dentes interni et externos. Hoc consilium non solum facultatem praebet eximiam onera portantis, sed etiam efficaciter compensat angularis, radiales et axiales misalignmenta quae per errores institutionis vel ambigua operandi causantur, ita extenuando impulsus accentus in gestus et apparatu connexos.

2. Optimized pro Long-Distantia Transmissionis: Dissimiles juncturas vexillum, exemplum GCJ intermedium nexum adhibet, eumque apprime idoneum ad applicationes exigens notabile spatium inter terminos scapularum et maiorem extensionem flexibilitatem offerens.

3. Concussus-absorbens et stabilitas Enhancing Design: Elementa culminis summus perficientur inter axibus ponuntur ut impulsus mechanicas et vibrationes in operatione reprimant efficaciter trahant. Haec signanter ratio stabilitatis melioris est ac praecisionem motorum seu calces reducentium tuetur.

4. Materiae altitudinis ac Vestibulum: fabricatum ex GENERE ferro vel mixturae chalybe, productus ostendit egregium lassitudinem et corrosionem resistentiae, quae sustineri potest onera gravia et ambitus industriae durae (qualia sunt altae temperaturae, altae humiditatis, vel pulverulentae conditiones).

5. Sustentationem-Friendly Modular Structure: Ob industriae rationalem consilium, coniunctio celeris disgregationi et congregationis subsidia, inspectiones et lubricationes et partes substitutionis faciliorem reddens, significanter tempus minuendi et conservandi impensas pro conatibus minuendo.

Contactus Us

PDF Download

PREV: GSC Per genus tympanum calces copulationis (Q/YG14019X-2018)
DEINDE: GCC Vertical installation tympanum calces copuletur (Q/YG 13014X-2018)

Morbi condimentum

Nuntius mitte

ARTI PARAMETERS

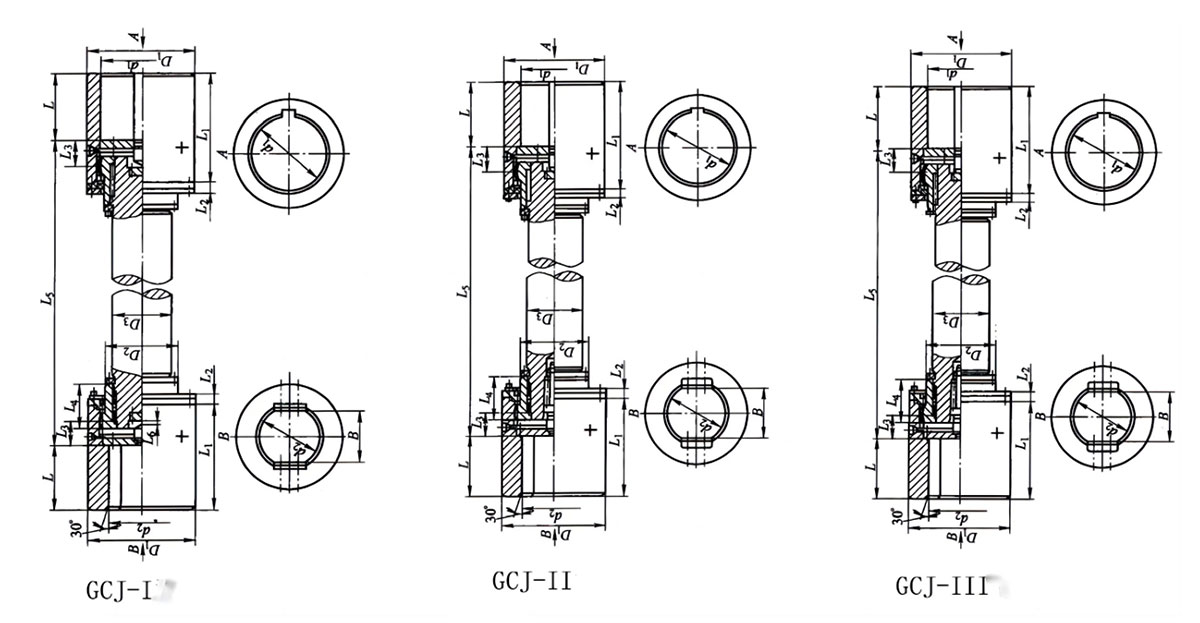

Parametri fundamentales et principales dimensiones generis GCJ coitus cum stipite intermedio tympani calcei

Type	Nominal torque Tn/KN.m	Cylindrica hastili foraminis dimensiones		Plana peperit scapi foraminis dimensiones			D₁	D₂	D₃	L ₁	L ₂	L ₃	L ₄	L ₅ min	L ₆	Mass /kg		Momentum inertiae /k·m²		Grease /kg
		d₁, d₂	L	d₂ max	L max	B max										L5 min massa	Quisque massa addita metri	L5 min inertia	inertiae quisque additae meter
			J1 type
GCJ1	6.3	60,63	107	80	132	60	130	85	70	170	30	35	90	500	3	46	30.2	0.05	0.018	150
		65,70
		71,75
		80	132							195
GCJ2	11.2	70,71,75	107	100	167	75	160	110	90	175	30	40	110	500	3	76	49.9	0.28	0.05	250
		80,85	132							200
		90,95
		100	167							235
GCJ3	18	80,85	132	110	167	85	180	120	100	210	32	46	120	600	3	105	61.65	0.43	0.07	350
		90,95
		100,110	167							245
GCJ4	25	80,85	132	125	167	95	200	140	110	220	32	50	140	600	3	140	74.6	0.73	0.158	450
		90,95
		100,110,120,125	167							253
GCJ5	31.5	90,95	132	140	202	105	230	160	130	225	38	54	160	600	5	200	104	1.43	0.22	650
		100,110	167							260
		120,125
		130,140	202							295
GCJ6	50	110,120	167	160	242	120	260	180	140	287	38	84	180	800	5	280	121	2.56	0.296	900
		130	202							322
		140, 150
		160	242							362
GCJ7	63	140, 150	202	190	282	140	280	200	160	336	38	85	200	800	5	380	158	4.26	0.501	1400
		160	242							376
		170,180
		190	282							416
GCJ8	80	160,170,180	242	200	282	160	300	220	180	392	44	95	220	1000	5	480	200	6.02	0.81	1800
		190,200	282							432
GCJ9	100	170,180	242	220	282	170	330	230	200	392	44	95	230	1000	5	550	247	7.95	1.24	2100
		190,200,220	282							432
GCJ10	125	190,200,220	282	240	330	180	355	250	220	442	51	98	250	1000	5	720	298	12.7	1.8	2500
		240	330							490
GCJ11	200	190,200,220	282	260	330	200	410	290	240	457	51	106	280	1200	5	1110	355	25.95	2.56	3000
		240,250,260	330							505
GCJ12	315	240,250,260	330	300	380	220	460	320	260	518	57	112	300	1200	6	1480	417	43.43	3.52	4000
		280,300	380							568
GCJ13	450	280,300,320	380	340	450	250	510	360	300	596	57	136	340	1400	6	2020	555	71.76	6.24	5200
		340	450							666
GCJ14	560	300,320	380	360	450	280	560	400	320	628	64	145	380	1500	6	2600	631	114.4	8.1	6500
		340,360	450							698
GCJ15	710	340,360,380	450	400	540	300	610	430	350	716	64	160	400	1500	6	3300	755	178	11.6	8000
		400	540							806
GCJ16	900	360,380	550	420	650	320	660	460	380	842	64	172	440	1600	10	4300	890	272	16	10000
		400,420	650							942
GCJ17	1120	400,420,440,450,460	650	460	650	350	710	500	420	964	64	182	480	1800	10	5500	1090	392	24	12000
GCJ18	1250	420,440,450,460,480,500	650	500	650	380	760	540	460	990	76	195	520	2000	10	6700	1310	553	35	15000
GCJ19	1600	440,450,460,480,500	650	530	800	400	810	580	500	1005	76	215	540	2000	10	8350	1540	805	48	16500
		530	800							1155
GCJ20	2000	450,460,480,500	650	560	800	420	860	600	530	1031	76	225	560	2000	10	9500	1730	1024	61	18500
		530,560	800							1181
GCJ21	2240	480,500	650	600	800	450	910	650	560	1056	76	236	600	2500	10	11500	1930	1334	75.66	21000
		530,560,600	800							1206
GCJ22	2800	530,560,600,630	800	630	800	480	965	680	600	1230	82	246	640	2500	13	12600	2220	1621	99.9	24000
GCJ23	3150	560,600,630	800	670	900	500	1000	710	630	1250	82	265	680	2500	13	17900	2450	2579	122	27000
		670	900							1350

Nota:

1. Massa et momentum inertiae sunt valores approximati secundum maximam cylindrici diametri hastilem et longitudinem scapi intermedii L5min.
2. Sub communibus, finis activus scapi foraminis coitu cylindricus est, et deiectus finis est foraminis plani. Si opus est, utrumque cylindricum esse potest.
3. Exempla 1~5 eligi possunt secundum GB/T3852 si extensionem stipendii Y-type indiges.
4. Pro planis bore foraminibus scapus, modus tolerantiae d . ₂ et B est H9.
