HCL genus elasticum pin coitu cum rota fregit (Q/YZ31002X-2018)

Name: HCL genus elasticum pin coitu cum rota fregit (Q/YZ31002X-2018)
Rating: 5 (99 reviews)

HCL genus columnae elasticae pin iuncturae cum rotis fregit stricte sequitur regulam technicam Q/YZ31002X-2018. Eius nucleus utilitas in astuta integratione virtutis elasticae transmissionis et functionis fractis posita est, valde in meliore systematis spatio utendo et efficacia fractis responsionis. Productum egregium onus aptabilitas habet, amplis torques nominalibus opertis 560 N·m ad 35500 N · m, ac licitas celeritates usque ad 5600 r/min sustinere potest, dynamicam stabilitatem sub alta intensione operatione procurans. Summus qualitas partium elasticarum non-metallicarum adhibita, non solum efficaciter compensare potest pro cinguli radiali et axiali axis, sed etiam onera ictum in operatione absorbere, praesertim ad grave officium potestatis tradendi nexus qui frequentes braking vel stricte requisita requirunt ad finem salutis initium.

Sicut ducens Plum elasticum Copultionis Manufacturer et premium in industria supplementum, nostrum Plum elasticum Copultionis Factory conformatum altum fundamentum habet in variis componentibus transmissionis summus perficientur, incluso HCL et Plum elasticis commissuris conformatis. HCL commissurae genus late adhibentur in campis industrialibus clavis, ut elevatio, metallurgia, fodienda, et machinae portus ob excellentem calorem dissipationis perficiendi et diuturna tractatio superficiei rotae fregit.

Contactus Us

PDF Download

PREV: TC type elastica manica paxillus copulationis (Q/YZ 302003-2018)
DEINDE: HC genus elasticum pin iuncturae (Q/YZ31001X-2018)

Morbi condimentum

Nuntius mitte

ARTI PARAMETERS

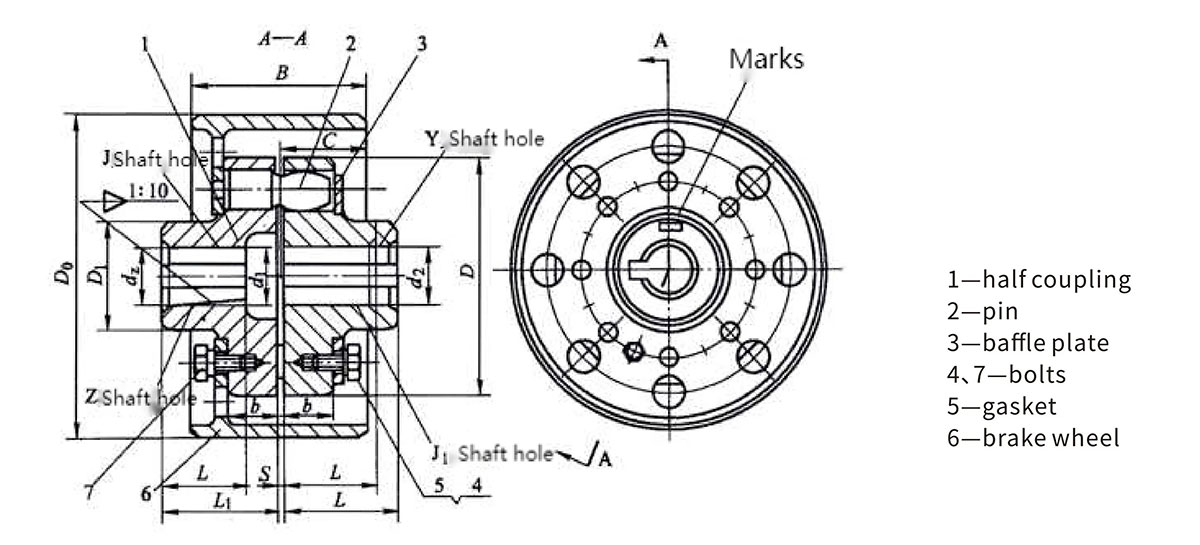

Praecipuae parametri et rationes principales HCL genus elasticum clavum coitum cum rota fregit

Exemplar	Nominal torque / N·m	Licet celeritas [n]/r·min⁻¹	Hastile peperit diametri	Hastile peperit longitudinem			D₀	D	D₁	B	b	S	C	Momentum inertiae ego/kg·m²	Mass m/kg
			d₁, d₂, d z	Y-type	J, J₁, Z
HCL1	560	5600	20,22,24	52	38	52	200	118	55	85	28	2.5	42	0.055	11
			25,28	62	44	62
			30,32,35	82	60	82
HCL2	1250	3750	30,32,35,38					158	75		36		40	0.072	14
			40,42,45,48	112	84	112
HCL3	1250	2430	30,32,35,38	82	60	82	315	158		132			66	0.313	25
			40,42,45,48	112	84	112
HCL4	2500	2430	40,42,45,48,50,55,56					195	100		45	3		0.504	40
			60,63	142	107	142
HCL5	2500	1900	40,42,45,48,50,55,56	112	84	112	400			168			84	1.192	59
			60,63	142	107	142
HCL6	3150	1900	50,55,56	112	84	112		218	120					1.402	69
			60,63,65,70,71,75	142	107	142
HCL7	3150	1500	50,55,56	112	84	112	500			210			105	2.872	91
			60,63,65,70,71,75	142	107	142
HCL8	6300	1900	60,63,65,70,71,75				400	278	140	168	56	4	84	1.800	88
			80,85	172	132	172
HCL9	6300	1500	60,63,65,70,71,75	142	107	142	500			210			105	3.582	113
			80,85	172	132	172
HCL10	11200	1500	70,71,75	142	102	142		318	170					4.97	156
			80,85,90,95	172	132	172
			100,110	212	167	212
HCL11	11200	1220	70,71,75	142	102	142	630			265			132	9.392	187
			80,85,90,95	172	132	172
			100,110	212	167	212
HCL12	16000	1220	80,85,90,95	172	132	172		358	200			5		16.43	326
			100,110,120,125	212	167	212
HCL13	22400	1080	100,110,120,125				710	410	230	298	63		149	21.66	337
			130,140	252	202	252
HCL14	35500	1060	110,120,125	212	167	212		480	280		75	6		29.55	458
			130,140,150	252	202	252
			160,170,180	302	242	302
HCL15	35500	950	110,120,125	212	167	212	800			335			168	41.08	504
			130,140,150	252	202	252
			160,170,180	302	242	302

Nota: momentum inertiae et massae secundum J/Y calculi compositionis genus et minimum scapus foraminis diametri computantur.
