MCL-I typus plus informibus iuncturae elasticae (Q/YM 35015X-2018)

Name: MCL-I typus plus informibus iuncturae elasticae (Q/YM 35015X-2018)
Rating: 5 (99 reviews)

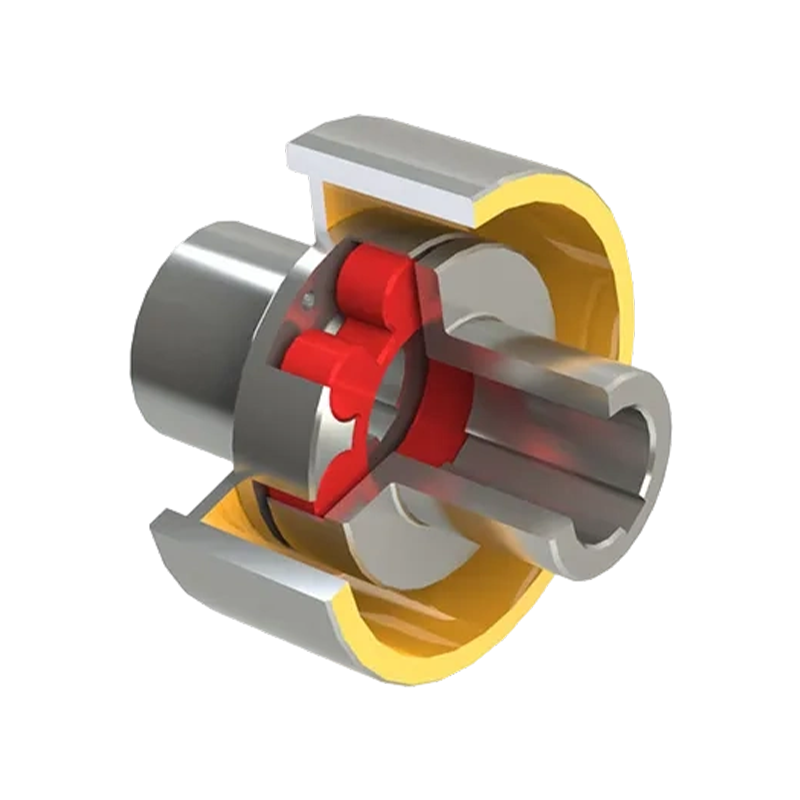

MCL-I plum floris coitu elastico formato (obsequens Q/YM 35015X-2018 et GB/T 5272-2002 signis) praecisio est pars mechanica quae potentiam transmissionis, fractionis functiones et onerare buffering valde integrat. Praecipua eius technica pluma est institutio scissilis rotarum fregit (LMZ-I typus). Hoc consilium permittit iuncturam transmittere torquem per compressionem radialem inter ungulam media copulationem et commissuram elementi elasticam (polyurethane vel nylon factam) adhibitis integratis rotarum confregit in conjunctione cum iaculis externis ut celeri shutdown vel certa positione instrumentorum consequantur. Ut structurae structurae typicam productum, non solum optimam obsessionem emendam facultatem habet et effusio inpulsa perficiendi, sed etiam in opportunitate conservationis bene facit.

In terminis technicis specificationibus, torques nominalis seriei MCL-I extenditur ab 355 N·m ad 14000 N · m, cum maxima celeritate licita 4750 r/min, et aptare potest variis diametros hastili foramine ab 25mm ad 160mm vndique accommodare. Cum hac "transmissione braking" composita logica, hoc productum late in gravibus campis industrialibus utendum est sicut instrumento metallurgico, tollendo et deportando, machinis fodiendis, de portubus facultatibus quae maxime altam braking salutem requirunt..

Contactus Us

PDF Download

PREV: Stella XC genus copulationis elasticae (Q/YX36019X-2018)
DEINDE: MCS typus prunum informibus elasticis coitu (Q/YM 35014X-2018)

Morbi condimentum

Nuntius mitte

ARTI PARAMETERS

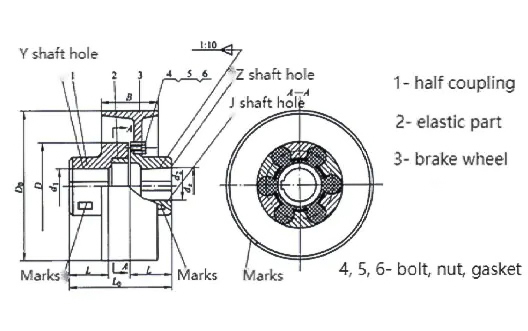

MCL-I typus quincunx elasticorum iuncturam basic parametri et principalis magnitudo

Type	Nominal torque Tn/N·m	licita celeritas [n]/r.min⁻¹	Scapus diametri d ₁ ,d ₂ ,d _z	L	L₀	D₀	B	D	Elastica elementum type	Mass m/kg	Momentum inertiae ego/kg·m²
MCL5-I-160	355	4750	25,28,30,32,35,38,40,42,45	50	127	160	70	105	MT5	6.602	0.019
MCL5-I-200	355	3800	25,28,30,32,35,38,40,42,45	50	127	200	85	105	MT5	9.204	0.044
MCL6-I-200	450		30,32,35,38,40,42,45,48	55	143			125	MT6	11.45	0.052
MCL7-I-200	710		35, 38, 40, 42, 45, 48, 50, 55, 56	60	159			145	MT7	13.96	0.064
MCL7-I-250	710	3050	35, 38, 40, 42, 45, 48, 50, 55, 56	60	159	250	105	145	MT7	20.09	0.144
MCL8-I-250	1250	3050	45, 48, 50,55,56,60,63,65	70	181	250	105	168	MT8	24.65	0.175
MCL8-I-315	1250	2400	45, 48, 50,55,56,60,63,65	70	181	315	135	168	MT8	34.13	0.374
MCL9-I-315	2000	2400	50, 55, 56*, 60, 63,65,70,71,75,80	80	208	315	135	198	MT9	41.67	0.45
MCL9-I-400	2000	1900	50,55,56,60,63,65,70,71,75,80	80	208	400	170	198	MT9	65.61	1.259
MCL10-I-40	3150	1900	60, 63, 65*, 70,71,75,80,85,90,95,100	90	230	400	170	228	MT10	74.53	1.4
MCL10-I-50	3150	1500	60, 63, 65*, 70,71,75,80,85,90,95,100	90	230	500	210	228	MT10	110.6	3.472
MCL11-I-50	5000	1500	70, 71, 75, 80, 85, 90, 95, 100, 110, 120	100	260	500	210	258	MT11	121.7	3.715
MCL12-I-63	7100	1200	80,85,90,95,100,110,120,125,130	115	297	630	265	298	MT12	213.7	10.24
MCL13-I-71	12500	1050	90, 95, 100, 110, 120*, 125, 130, 140, 150	125	323	710	300	358	MT13	341.6	19.99
MCL14-I-80	14000	950	100, 110, 120, 125, 130, 140, 150,160	135	333	800	340	400	MT14	510.1	39.36
