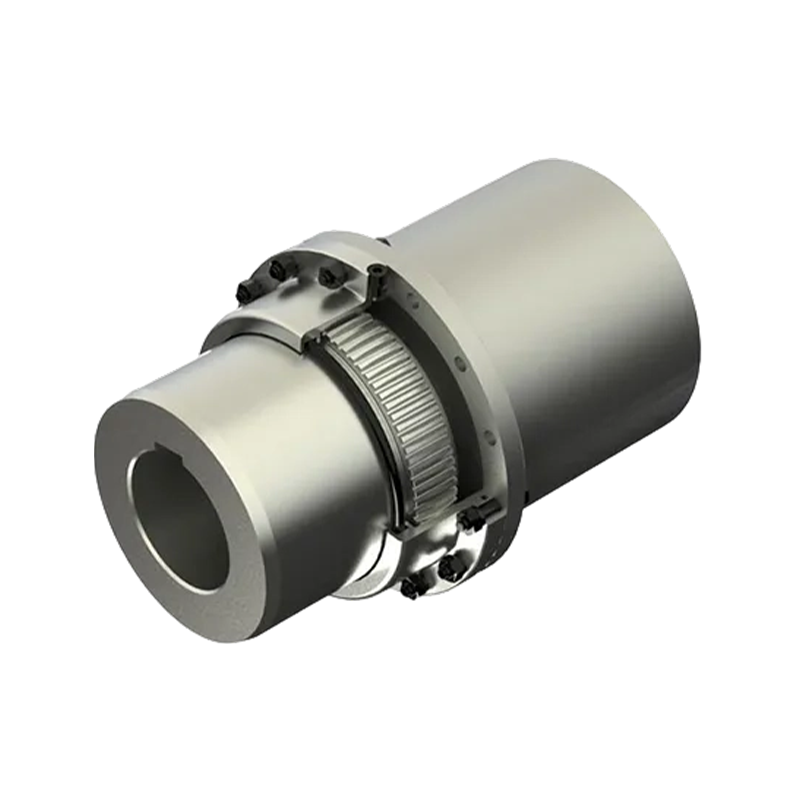

GBZ Coniuncta cum media hastili tympano calces coitus (Q/YG 11002X-2018)

Name: GBZ Coniuncta cum media hastili tympano calces coitus (Q/YG 11002X-2018)
Rating: 5 (99 reviews)

Product Caput Overview:

GB-series iuncturae instrumentorum instrumentorum criticorum in systematibus tradendis industrialibus componendis est. Servans ut praecisio nexus connexionis spiculorum rotationis, inconsutilem transmissionem efficit torques et motus gyratorii inter systemata mechanica. Articuli obsequio cum signo Q/YG11001X-2018 factorum, hoc productum incorporat exactionem technologiarum technologiarum et robustarum partium mechanicarum. Magnopere efficientem et stabilem potestatem tradit transmissionis - etiam sub oneribus, inter vibrationes et per varias condiciones operandi.

Product Features Eximia:

1. High-Precision Engineering Design: In suo nucleo haec coniunctio adhibet mechanismum subtilitatem tympani instrumenti. Per calces geometriae optimized design, non solum auget facultatem tradendi torques, sed etiam signanter extenuat ac dilacerat in operatione.

2. Outstanding Alignment et Compensation Capabilities: Instructura designationis lineamenta flexibilitate eximia, ut id efficaciter compenset misalignment deflexionum inter spicula. Haec proprietas non solum signanter accentus componentes mechanicos minuit, sed etiam auget operandi constantiam totius systematis transmissionis, cum maxime idoneus ad duras ambitus vel applicationes industriae cum gravissimis noctis requisitis.

3. Robustum et durabile Industrial Construction: Utendo materias summus qualitas cum processibus fabricandis rigidis componendis, productum efficit longam servitutem sub gravibus oneris conditionibus. Hoc opus crebris supplementis regit, ut diuturnum tempus minuatur operandis sumptibus negotiis.

4. Conveniens institutionem et sustentationem: Productum consilium prioritizat efficientiam operationalem in-site, facilitando conventum celerem et disassembly. Haec pluma sustentationis facilitatem downtime in apparatu muneris significanter minuit, negotiis adiuvandis maximize eorum fructibus.

Core Technical Specifications:

Copularum series GB-perplexorum exemplorum amplis — ab GB1 ad GB25-capax est occurrendi variis applicationibus applicationum ab exiguis exiguis praecisis instrumentis ad machinae industriae ultra-gravis officium;

1. Nominal Torque (Tn); Tegit amplissimum spatium ab 0,63 kN·m et oneribus torques oneribus ad 5600 kN·m transmittendum.

2. Celeritas licita ([n]); Varias condiciones operandi sustinet, ab applicatione ad celeritatem in humili celeritate vagando, cum velocitate gyratorio radiophonicae ab 420 r/min ad 6500 r/min.

Bore 3. Compatibility: Circuitus diametri (d1, d2) iugis ab 16 mm ad 1040 mm, dum boream longitudo (L) cadit inter 45 mm et 900 mm.

4. Dimensiones physicae: Unitas pondus vagatur ab leve pondus 3.5 kg ad officium grave 22,381 kg, adipe impletionum voluminum a 31 mL ad 23,000 mL variantium.

Typical Application Agri

Propter singularem observantiam ac robustam designationem, productum hoc per numerosas provincias industriales graves, inclusas, late adhibetur:

1. Metallurgia et Mining Equipment: Mola volvens fugat, oppressores, Et spartum meum.

2. Apparatus elevatio et onerariis: Magnae scalae grues, portus pertractandi instrumenta, et systemata materialia invehentia.

Gravis 3. Generalis Equipment: Machinae electronicae, hydraulicae machinae, variaeque soleatus industriae magnae et systemata compressor..

Contactus Us

PDF Download

PREV: GBD Motor hastile extension tympani calces iuncturae (Q/YG 11003X-2018)
DEINDE: GB Drum calces iuncturae (Q/YG11001X-2018)

Morbi condimentum

Nuntius mitte

ARTI PARAMETERS

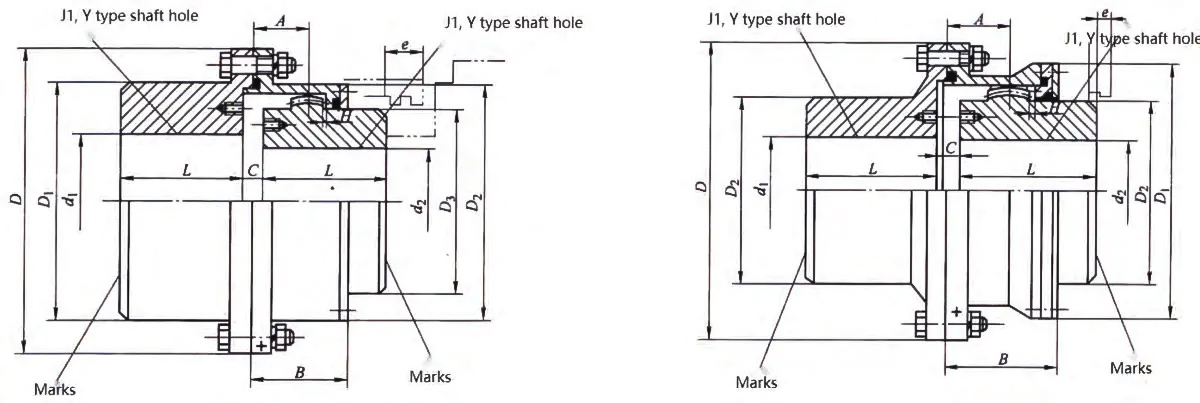

GBZl~GBZ13type tympanum calces copuletur	GBZ14 ~ GBZ25 genus tympanum calces copuletur

GBZ genus tympanum calces coitus cum vecte media basic parametri et dimensiones principales

Type	Nominal torque Tn/KN·m	licita celeritas [n]/r.min⁻¹	hastile foraminis diametri		hastile foraminis longitudo	D	D₁	D₂	D₃	C	H	A	B	e	Momentum inertia /k·m²	Moles* uncto /mL	Mass /kg
			d₁	d₂	L	D	D₁	D₂	D₃	C	H	A	B	e
			mm
GBZ1	0.63	6500	16-50	16-35	45	103	71	71	50	8	2	18	38	38	0.004	31	3.5
GBZ2	1.00	6000	20-60	20-45	50	115	83	83	60	8	2	21	44	42	0.007	42	5.3
GBZ3	1.6	5600	22-70	22-56	63	127	95	95	75	8	2	22	45	42	0.011	42	7.8
GBZ4	2.8	5100	38-80	38-65	71	149	116	116	90	8	2	24.5	49	42	0.023	53	12
GBZ5	4.5	4600	40-90	40-75	80	167	134	134	105	10	2.5	27.5	54	42	0.044	77	18.1
GBZ6	6.3	4300	45-105	45-90	90	187	153	153	125	10	2.5	28	55	42	0.08	91	25
GBZ7	8.0	4000	50-115	50-105	100	204	170	170	140	10	2.5	30	59	42	0.13	108	36
GBZ8	11.20	3700	55-125	55-115	112	230	186	186	155	12	3.0	33.5	71	47	0.215	161	46.1
GBZ9	18.00	3350	60-150	60-135	125	256	212	212	180	12	3.0	34.5	73	47	0.415	184	71.8
GBZ10	25.00	3000	65-150	65-150	140	287	239	239	200	14	3.5	39	82	47	0.67	276	91.1
GBZ11	36.1	2700	110-175	110-175	170	325	250	276	235	14	3.5	40.5	85	47	1.223	322	137
GBZ12	56	2450	130-200	130-200	190	362	286	313	270	16	4.0	44.5	95	49	2.39	404	212.8
GBZ13	80	2200	150-225	150-225	200	412	322	350	300	18	4.5	49	104	49	3.93	585	272.3
GBZ14	125	2000	170-250	170-250	235	462	420	335	－	22	5.5	86	148	63	7.67	1600	438
GBZ15	195	1800	190-285	190-285	260	512	465	380	－	22	5.5	91	158	63	12.425	2100	566
GBZ16	265	1600	220-320	220-320	285	580	522	430	－	28	7.0	104.5	177	67	21.2	2500	751
GBZ17	383	1400	250-365	250-365	315	644	582	490	－	28	7.0	99	182	67	38.825	2700	1110
GBZ18	550	1210	280-400	280-400	355	726	658	540	－	28	8.0	111	215	75	69.5	3900	1580
GBZ19	800	1050	300-470	300-470	400	818	748	630	－	32	9	116	220	75	122.5	5000	2115
GBZ20	1120	910	360-540	360-540	450	928	838	720	－	32	10.5	123.5	235	75	240	6200	3223
GBZ21	1550	800	400-600	400-600	500	1022	928	810	－	40	11.5	127.5	245	75	435	7000	4780
GBZ22	2000	700	450-680	450-680	560	1134	1036	915	－	40	13.0	131	255	75	701.25	8700	6069
GBZ23	2800	610	530-770	530-770	710	1282	1178	1030	－	50	14.5	149.5	290	80	1415.75	15000	9633
GBZ24	4000	500	560-850	560-850	800	1428	1322	1175	－	50	16.5	158.5	305	80	2682.75	18000	14465
GBZ25	5600	420	670-1040	670-1040	900	1644	1538	1390	－	50	19.0	162.5	310	80	5836.5	23000	22381
